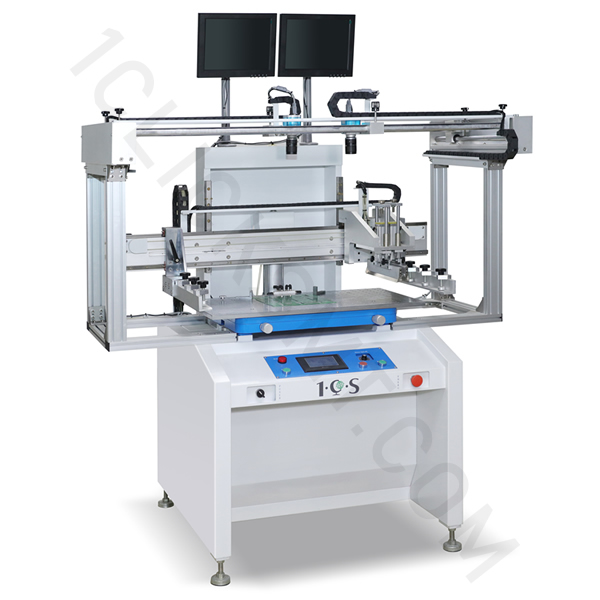

Semi-Automatic Screen Printer SP-400V

init sku time:

SP-400 is a high precision semi-automatic solder paste printing machine, printing accuracy can reach +/- 0.5mm. Can print PCB area as 50x50mm to 400x400mm, single and double side PCB.

Available Options

Safety Protection

Safety Protection
Equip with light curtain protection sysytem, make the operation more safety.

Motion system

Motion system

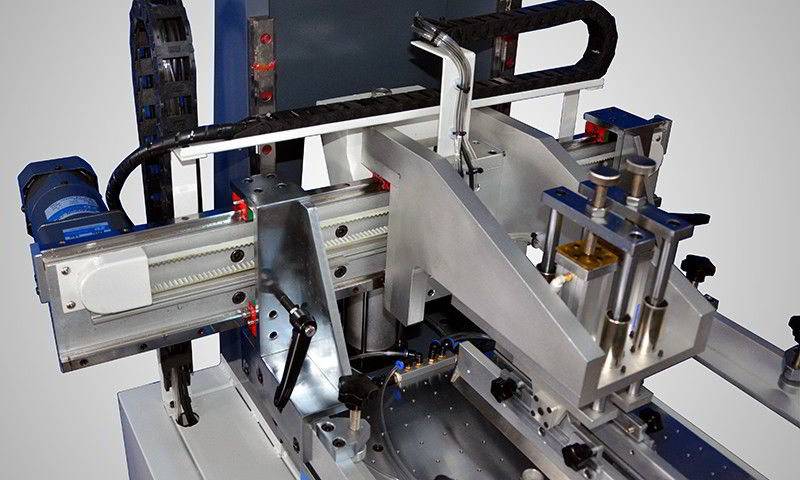

Ball linear guide rail and adjustable speed stepper motor to drive, ensure the stability and precision of the printing. Repeat accuracy +/- 0.05mm.

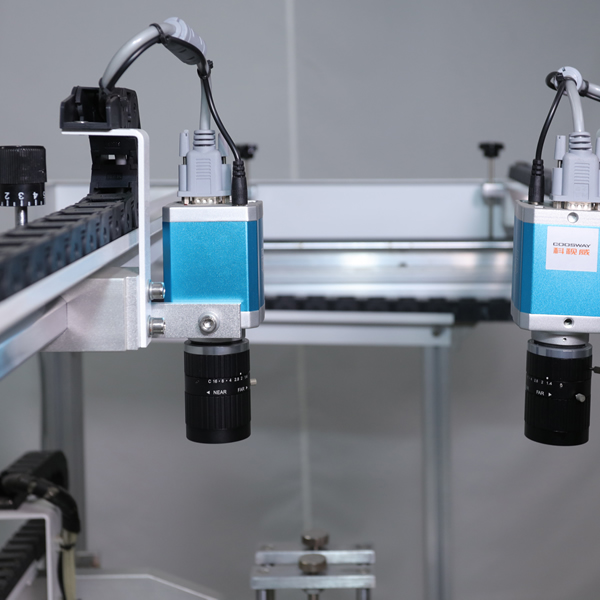

Excellent Positioning and Precise adjustment

Excellent Positioning and Precise adjustment

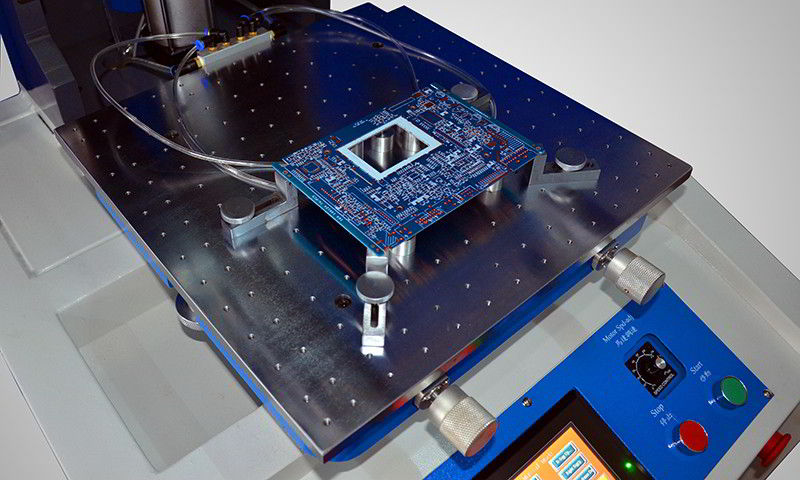

This unit provides superior printing results with precise micrometer screws (X Y R & Level) adjustment of the stencil. Excellent positioning accuracy and unique floating print head to make the solder paste more even.

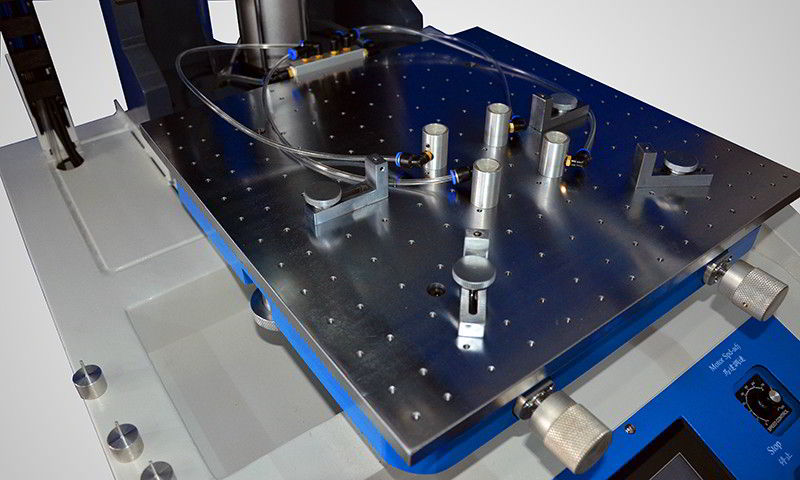

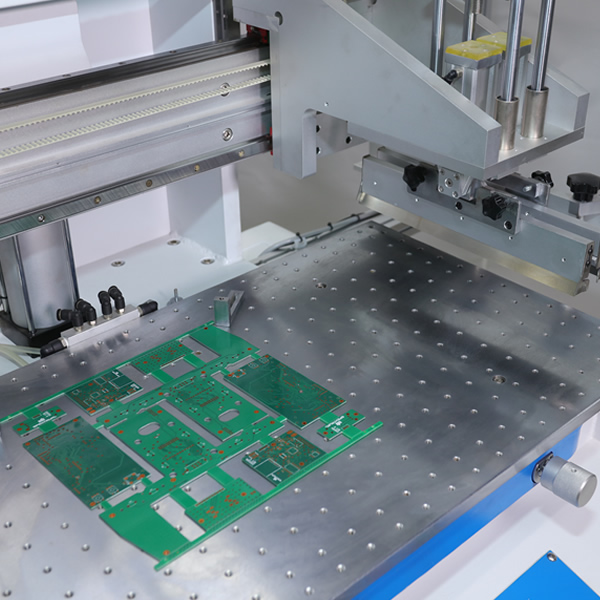

Combined working table

Combined working table

This unit is equiped with groups of vacuum suck holders and magnetic pins, operator can fix positioning pins based on PCB’s dimension, convenient for changeover, vacuum suck hold PCB during printing to make sure printing result.

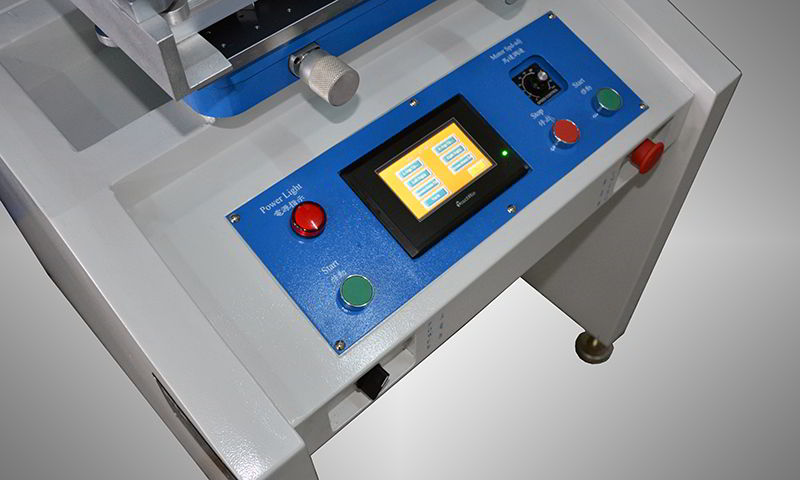

Control & Operation system

Control & Operation system

The PLC & touch screen control system makes sure system work more stable, Snap-off speed can be adjusted by production setting based on different PCB and the Function of cleaning stencil alarm remind operator to clean timely.

Perfectly Configuration

Perfectly Configuration

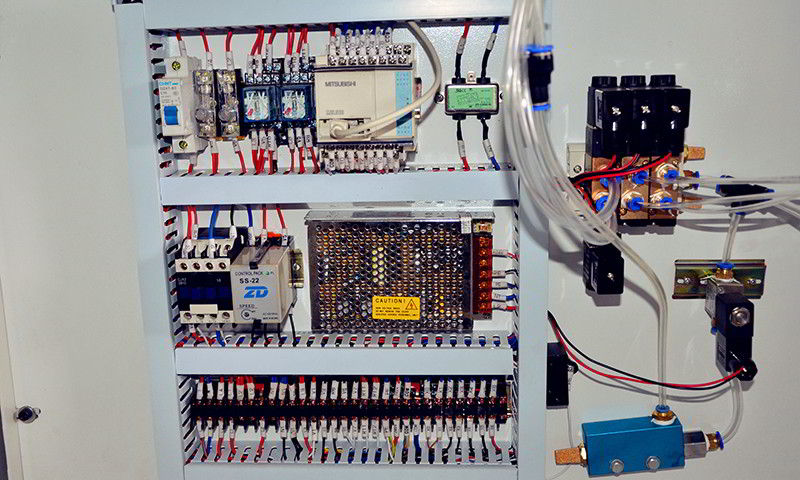

Use famous brands electrical components and pneumatic component, like Mitsubishi PLC, Omron intermediate relay, Schneider button switch, AIRODK air cylinder etc.

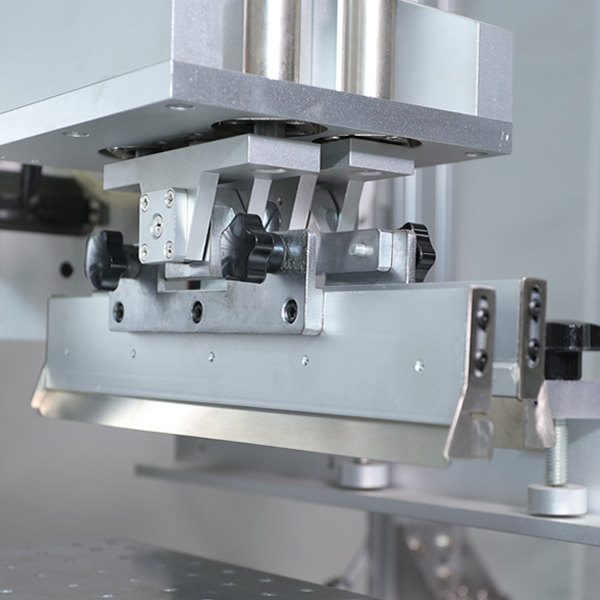

Squeegee

Squeegee

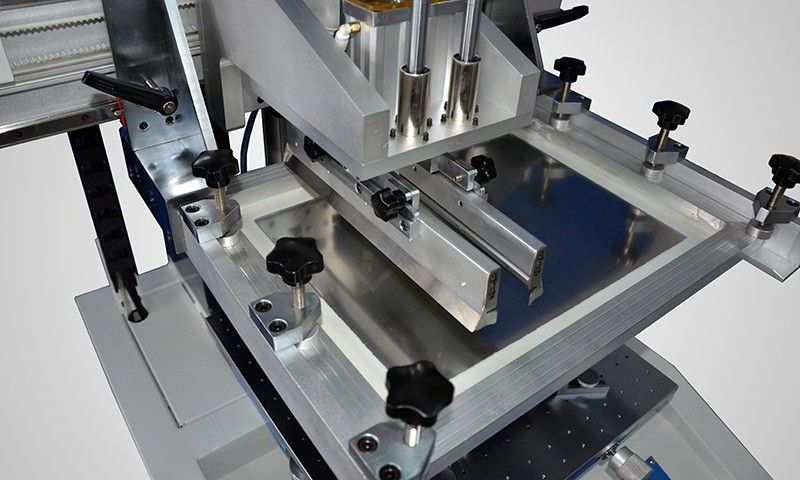

Different types of squeegee for most applications, you can select between rubber and metal type squeegees in specified sizes.

SP-400V Semi-Automatic Screen Printer Feature

Fine-pitch printing.

Unique floating print head design.

Printing of double-side boards.

Vacuum table available included.

Function of cleaning stencil alarm.

PLC & touch screen control system.

SP-400V-Specifications

  Model

  SP-400V

  Frame Dimensions

  300x300mm~550x740mmm

  PCB Thickness

  0.4mm~5mm

  Max.Printing area

  400×400mm

  Printing Accuary

  +/-0.05mm

  Adjustment range for printing table

  X axis ±5  Y axis ±5  Angle 2.8°

  Printing table height

  850±20mm

  Positioning system

  Support pins, vacuum sucker

  Air requirement

  4-6kgf/cm2

  Power input

  Single-phase 220V 50/60 HZ

  Power

  0.2KW

  Weight

  200Kg

  Dimensions: LxWxH(mm)

  836mm*850mm*1380mm

SP-400V Configurations (Standard Included):

 ◎ Printing Aare: 400*400mm

 ◎ Vacuum Sucker 4pcs

 ◎ Metal squeegees: L260mm / L350mm 2pcs

Free accessories:

 ◎ Free accessories (include with delivery of sp-400V)

  Steel squeegee, 280mm 1 pair

 ◎ Plastic Tool box 1 PCS

 ◎ Cross screwdriver,LS”(107), 1 PCS

 ◎ Slot-type screwdriver, 6’,1 PCS

 ◎ Allen key,1.5-10mm, 1 set

 ◎ Wrench, 10’, 1 PCS

 ◎ Power cord, 250V 10A, 1 PCS

 ◎ Air pipe, Dia.10mm, 1 PCS

 ◎ User manual 1 PCS

 ◎ Support Pin: 2mm/8pcs  4mm/8pcs  6mm/8pcs or Specify

Option Squeegee:

 Steel/ 140mm/180mm/230mm/260mm/280mm/320mm/350mm

◎ Rubber/ 140mm/180mm/230mm/260mm/280mm/320mm/350mm
