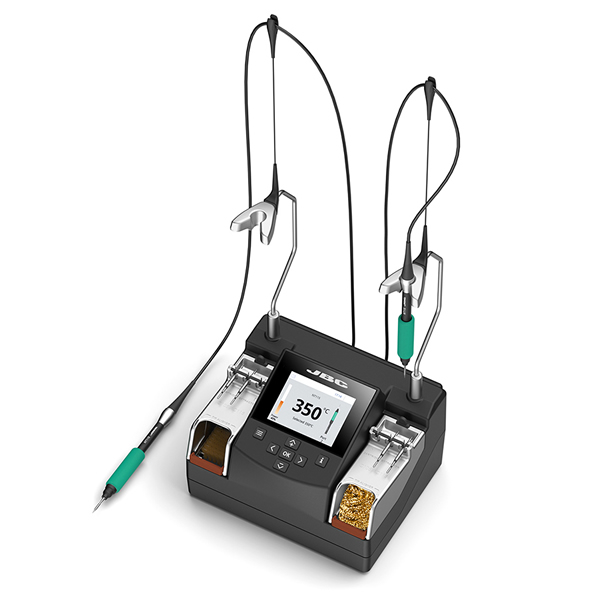

NANE 2-Tool Nano Soldering Station

init sku time:

Control under microscope
Designed for highest precision applications offering maximum control working under microscope. It provides all the advantages of the JBC Most Efficient Soldering System.
●   Improving the soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer
●   Complete Tip Cleaning System with an integrated wiper and brush
●   Cartridge Holder and JBC Exclusive Cartridge Exchanger, which increases efficiency.
●   Connection to JBC Fume Extractor via connector RJ12.
●   Connectivity: datas download, remote control for traceability and software updates.
●   Two NT115 Nano Handle, which work with our C115 Cartridge Range.

Available Options




NANE 2-Tool Nano Soldering Station specification:

  Ambient operating temp.:

  10 - 50 ºC / 50 - 122 ºF

  FAE / Robot connector:

  Remote control or FAE Fume Extractor connection

  Idle temp. stability (still air):

  ±1.5 ºC / ±3 ºF (meets and exceed IPC J-STD-001F)

  Output peak power:

  14W per tool

  Temperature range:

  90 - 450 ºC / 190 - 840 ºF

  Tip to ground resistance:

  < 2 ohms

  Tip to ground voltage:

  < 2 mV RMS

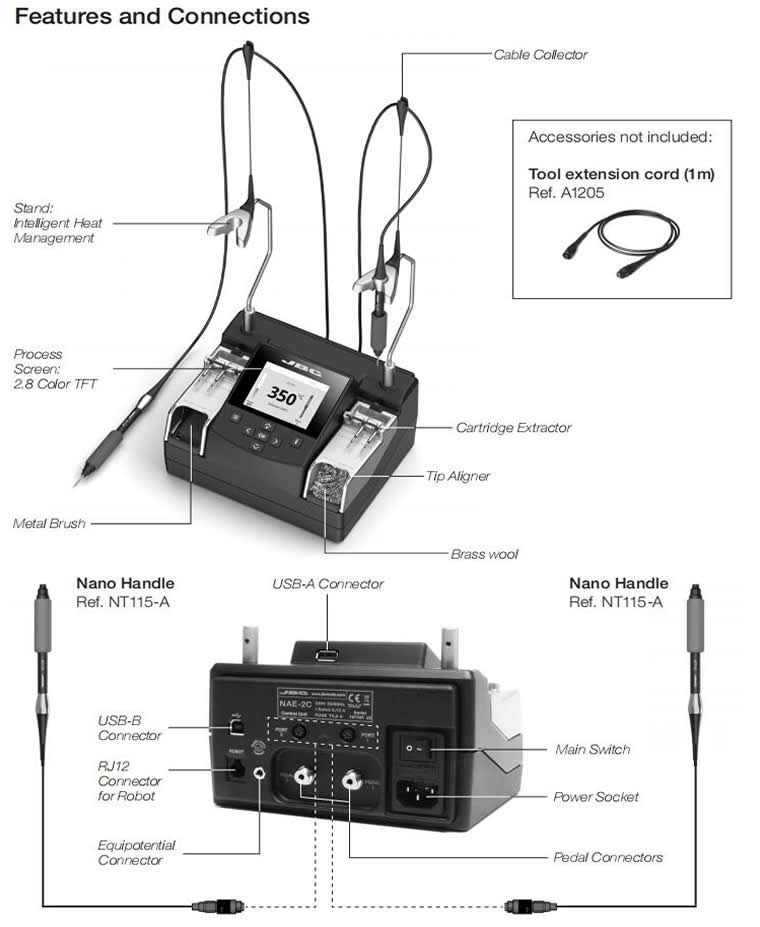

  USB-B (rear):

  PC communications

  USB-A (front):

  Firmware update

  Pedal (1 per tool):

  Connect a pedal (ref.P405) to control the tools. It allows using Nano tweezers for soldering

  Equipotential bonding:

  Optional connection to EPA

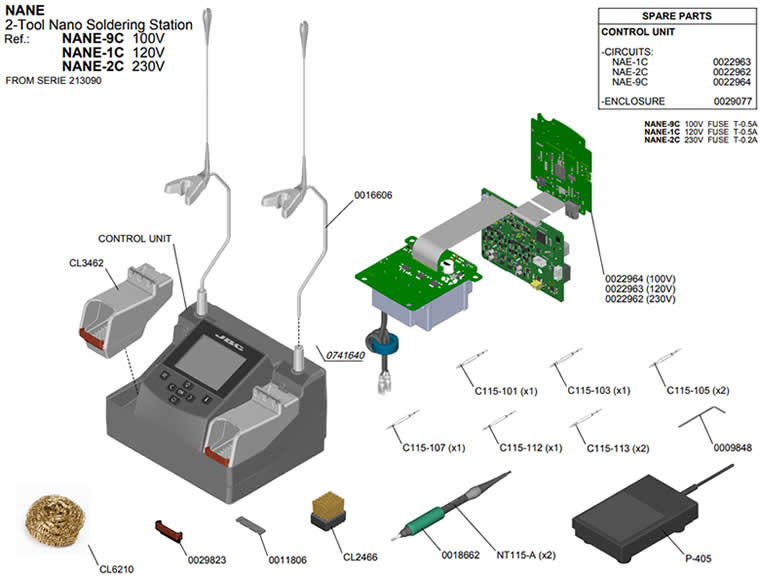

SPARE PARTS.jpg
