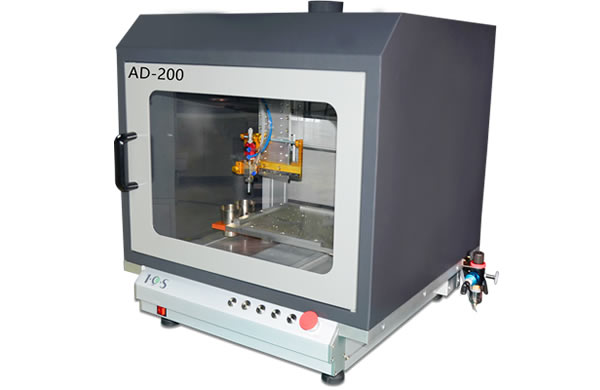

The AD-200 is an automated desktop type selective coating robot with a precision spraying valve and material tank to provide a desktop type slective coating solution.
|
|
● Built in dispensing controller with independant air regulator. |
|||||||||
|
|

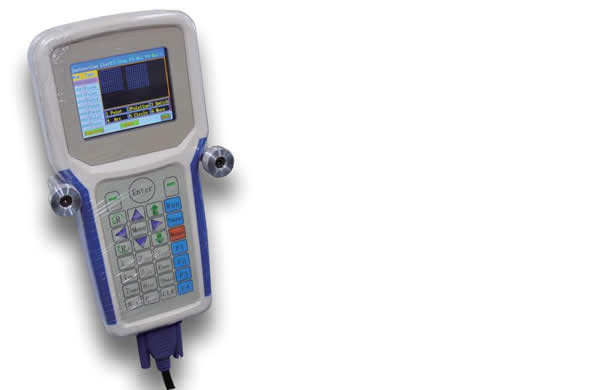

● Hand-held teach pendant with powerful software is easy for programming. |
|||||||||
|

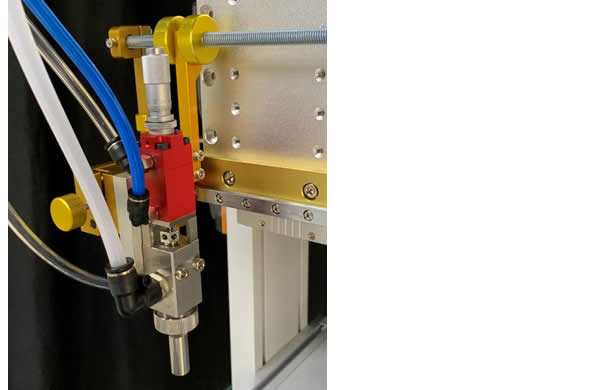

Spray valve: |
||||||||||
|
|
Coating thickness can be adjusted by changing air pressure and moving speed. Coating width can be adjusted by changing air pressure. |
|||||||||
|
||||||||||
|
Material Tank |
||||||||||
|
|

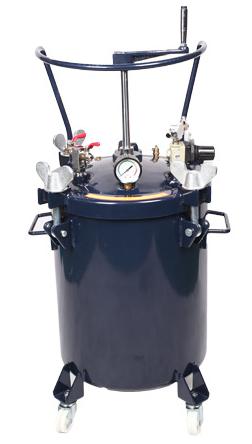

10L material pressure tank. |
|||||||||
|
|

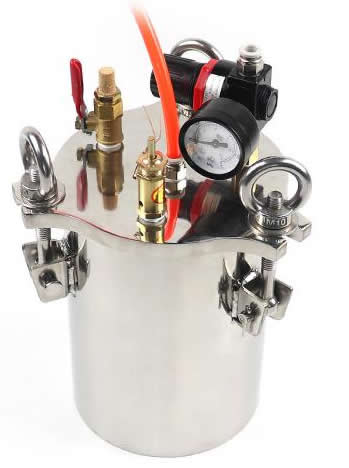

2L cleaning pressure tank. |
|||||||||
|

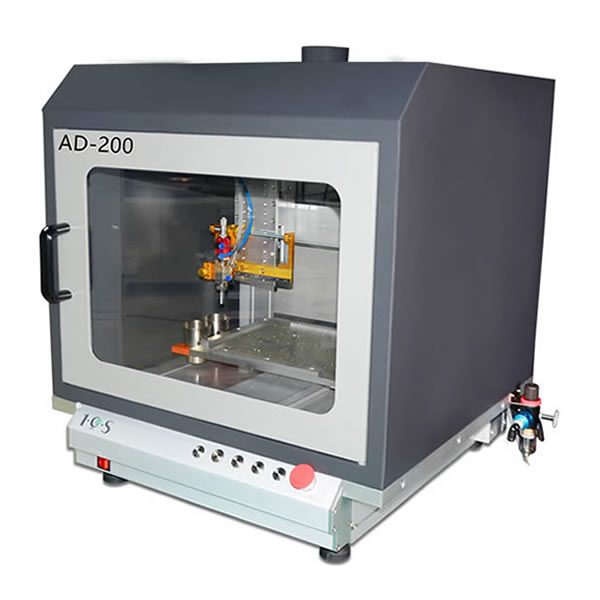

Benchtop Selective Coating Machine AD-200 Features: |
| ● The AD-200 is an automated desktop type selective coating robot with a precision narrow spraying valve and material tank to provide a desktop type slective coating solution. |
|
● High quality step motor with high precision linear guide rail and it's driving system, ensure stable and precise run of motion system. |
|
● Built in dispensing controller with independant air regulator. |
|
● Equipped with 10L material pressure tank and 2L cleaning pressure tank. |
|
● handheld teaching pendant with powerful software, all english interface, easy to operate. |
|
● Powerful software has the painting point, straight line, multi line segment, three-dimensional arc (spatial arc), round, rectangular, runway, coating, automatic corner rounding, irregular 3D spline curve and other graphical elements; rich handmade teaching function and graphical preview function. |
|
● Powerful software has route copy and array copy fuction, park loaction setting function, coordinate offset correction function, different dispensing height and lifting height setting function, pause and continue running fuction etc. |
|
Benchtop Selective Coating Machine AD-200 specification: |
||
|
Items |
Model |
AD-200 |
|
Stroke(mm) |
NumberofAxis | 3 |
| (SingleheadX,Y,Z) | ||
| X-aixs | 380 | |
| Y-aixs | 250 | |
| Z-aixs | 80 | |
|
Speed (mm/s) |
XYaixs |
300 |
|
Repeatability(mm) |
Z-aixs |
±0.06mm |
|
Dimensions(mm) |
WxDxH |
720x700x640 |
|
Weight |
NetWeight |
60kg |
|
Power source |
Voltage/Frequency | AC220V, singlephase, 50/60Hz |
| Capacity | 750W | |
|
Motor |
Type | Step motor |
| Operation | MicroStep | |
|
Programming |
Techingmethod | Hand-heldteachpendant, ManualDatainput |
| Motioncontrol | PTP, CP(3dimensionalstraightline/circulararcinterpolation) | |
| Programcapacity | 2G memory, 100 programs or instruction ≤8000 | |
|
WorkingTemperature |
0 - 40°C(32-104°F) |
|
|
AirInput |
5 Kg/cm²(approx.70psi) |
|
|
Benchtop Selective Coating Machine AD-200 includes: |
| standard configuration: |
|
● Benchtop Selective Coating Machine AD-200. |
|
● Handheld teaching pendant. |
|
● V-1000 spray valve. |
|
● 10L material pressure tank. |
|
● 2L SUS cleaning pressure tank. |
|
● Soaking cup * 1pcs. |
|
● Purging cup * 1pcs. |
|
● Enclosed cover. |
