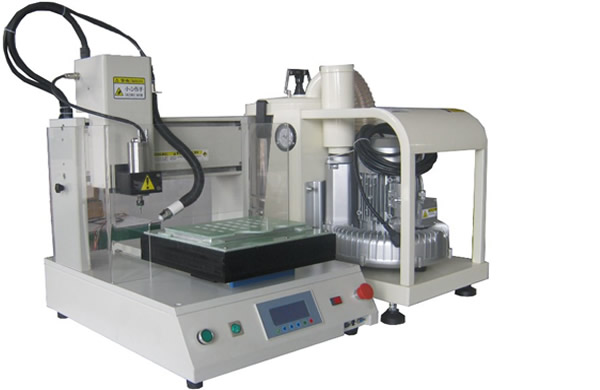

Bench-top Automatic PCB Router adopt step motor and driving system and high quality routing spindle which can ensure<0.05mm routing accuracy, x,y,z moving speed can reach 500mm/s, routing speed can reach 100m/s. Friendly interface make programming very easy, Equipped with vaccum cleaner which can provide a clean work enviroment.
|
|
● Bench-top Automatic Router adopt x,y,z step motor and driving system, ensure machine run smooth and precisely. routing accuracy less than 0.05mm. |
|
|

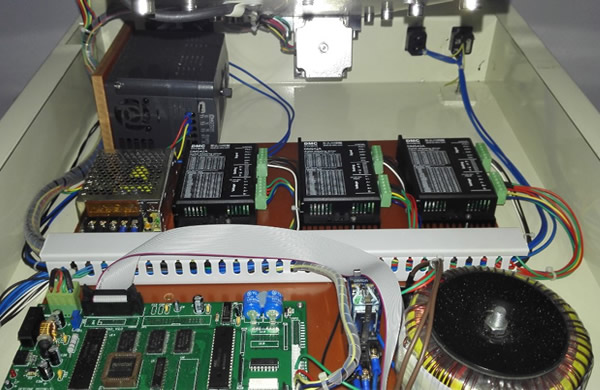

● X,Y,Z axis step driving system |
|
|

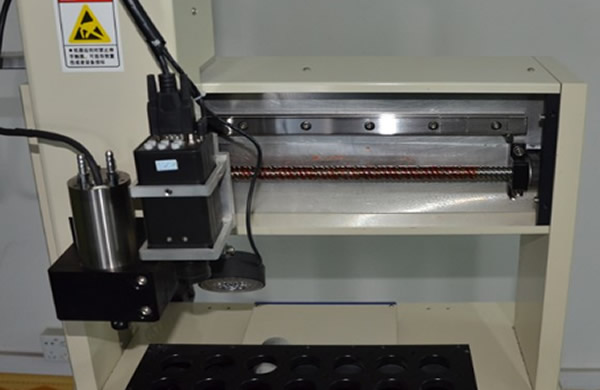

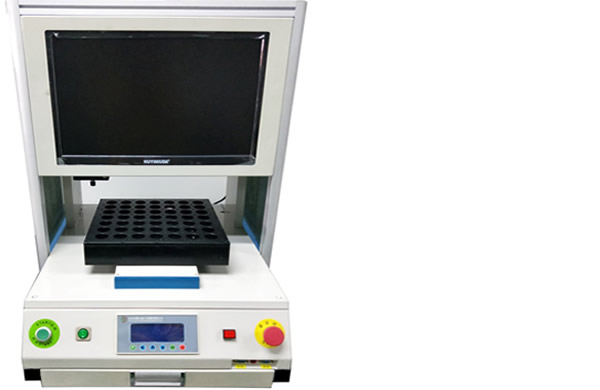

● Optional CCD and display make programming easier. |
|
|

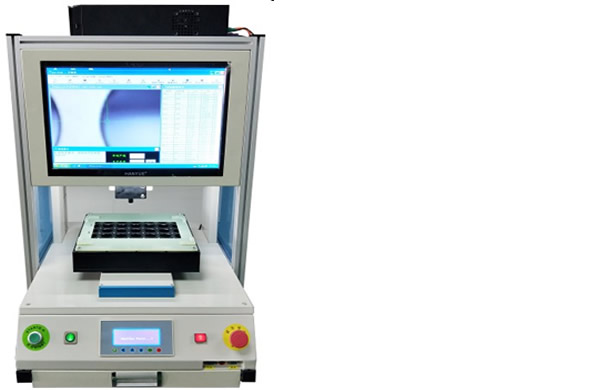

● Optional CCD+Industry PC for fiducial mark recognition and easily programming |
|
|

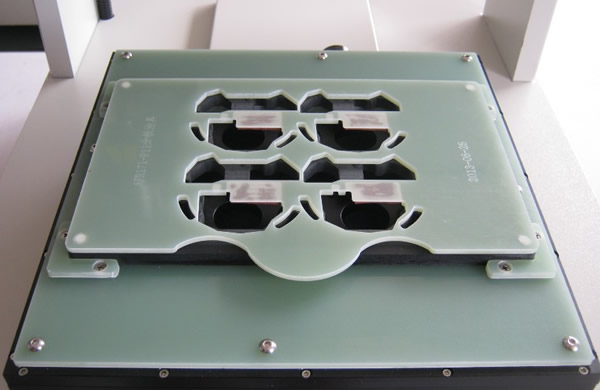

● Optional fixture according to customer's requirement. |
|
|

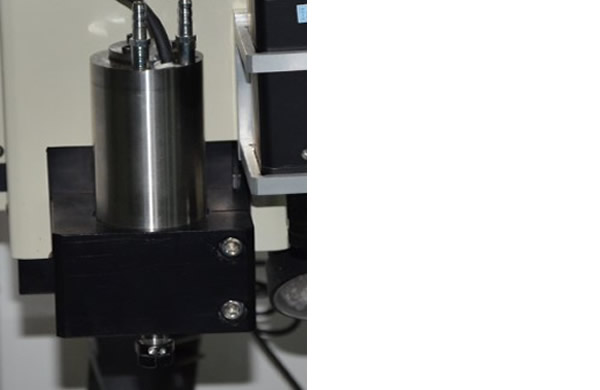

● Euipped with quality air cooling long service life routing sprindle made in Taiwan. |
|
|

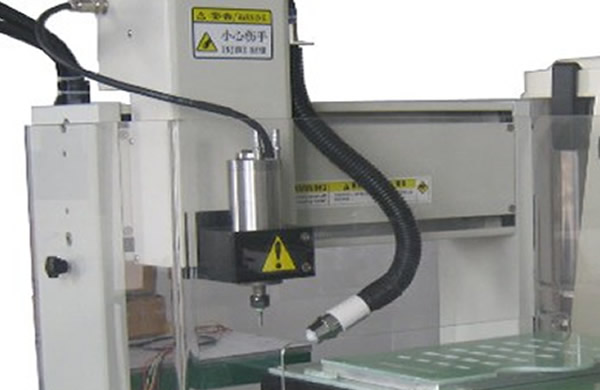

● Equipped With vaccum cleaner provides a clean and low noisy work enviroment |
|
|
● Optional ion air gun,ion wind is generated during the cutting process of the machine, which can eliminate static electricity generated on the PCB during cutting. |
|
|
● Optional fixture according to customer's requirement. |
|

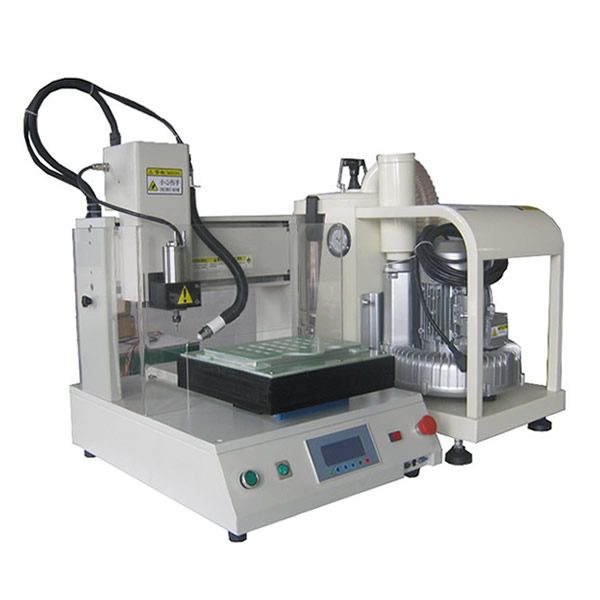

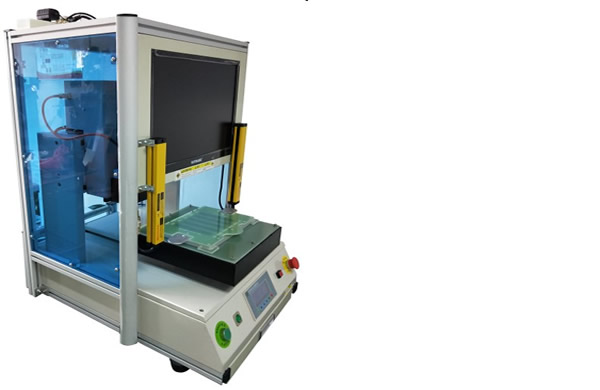

Bench-top Automatic PCB Router AR-300/AR-400 Features: |
|
1.Bench-top Automatic Router adopt x,y,z step motor and driving system, ensure machine run smooth and precisely. routing accuracy less than 0.05mm. |
|
2.Moving speed can reach 500mm/s, routing speed can reach 100mm/s, geatly improve producticon efficiency. |
|
3.Friendly interface make programming very easy. |
|
4.Euipped with quality, air cooling long service life routing sprindle. |
|
5. With vaccum cleaner provides a clean and low noisy work enviroment. |
|
6.Optional programming CCD +display. It can make program become very easy. |
|
7.Optional CCD+Industry PC for mark point correction function. |
|
Bench-top Automatic PCB Router specification |
||
|
Model |
AR-300 |
AR-400 |
|
Machine size(mm) |
L700mm*W580mm*H890mm |
L800mm*W680mm*H890mm |
|
Power Supply |
AC 220V 50 HZ |
AC 220V 50 HZ |
|
PCB Thickness |
0.4-3.5mm(Hard board) |
0.4-3.5mm(Hard board) |
|
Weight |
90 KG |
110 KG |
|
power |
300W |
300W |
|
Vacuum Cleaner Power |
1500W |
1500W |
|
Work table size(mm) |
300mm*300mm |
400mm*400mm |
|
Drive system |
X/Y/Z axis step motor control |
X/Y/Z axis step motor control |
|
Routing Spindle |
50000rpm/min Air cooling |
50000rpm/min Air cooling |
|
Routing Speed |
1-100mm/sec |
1-100mm/sec |
|
Driving System Repeatability |
±0.05mm |
±0.05mm |
|
Moving speed |
Max 500mm/s |
Max 500mm/s |
|
Milling Cutter |
∅0.8-∅3.0 mm |
∅0.8-∅3.0 mm |
|
Bench-top Automatic PCB Router AR-300/AR-400 Standard configuration : |
|
● Bench-top Automatic PCB Router |
|
● 3 aix step motor and driving system |
|
● Vaccum cleaner |
|
● Milling cutter 10pcs |
|
● Routing spindle*1pcs (Installed on the machine) |
|
● Start button*1pcs |
|
● 1 year parts warranty |
|
|
|
Bench-top Automatic PCB Router AR-300/AR-400 Optional configuration : |
|
● Customized fixture. |
|
● CCD+display for easily programming |
|
● CCD+Industry PC for fiducial mark recognition and easily programming |
|
● Safety light curtain. |
|
● Ion air gun |
|
● Router bit |
