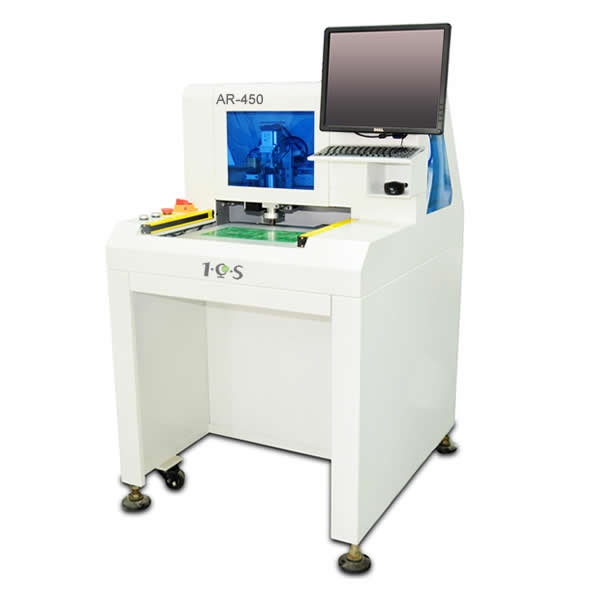

AR-450 PCB Router adopt high precision all servo driving system and high quality routing spindle which can ensure <0.05mm routing accuracy , x,y,z moving speed can reach 500mm/s, routing speed can reach 50m/s. and machine is equipped high resolution CCD which can automatically position fiducail mark and correct coordinate offset. windows operation system and self developed software make programming very easy, 2.2KW high power vaccum cleaner can provide a clean work enviroment.
|
|

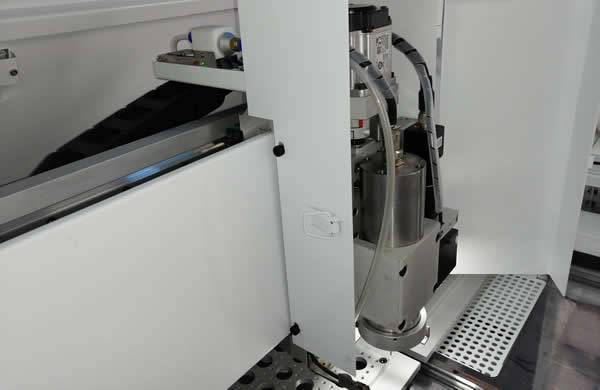

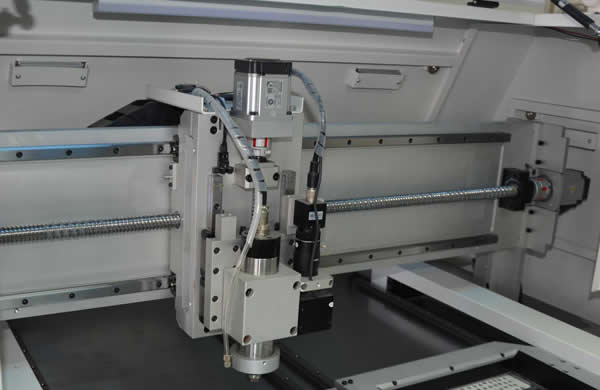

● X,Y,Z axis adopt panasonic servo motor and it's driving system ,ball screw drive with rail & slider, make movement smoothly and precisely. |
|
|

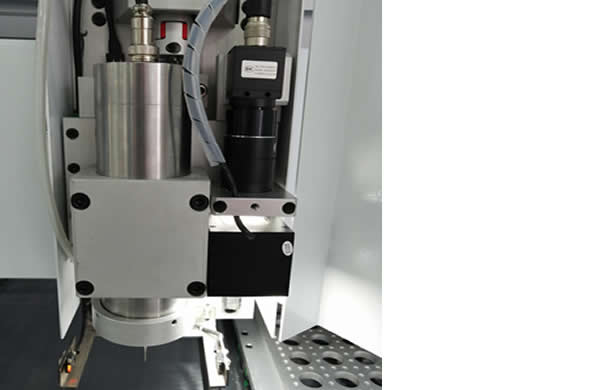

● Equipped with High resolution CCD makes programming very easy. It has mark positioning function, can automatically correct the coordinate offset. |
|
|

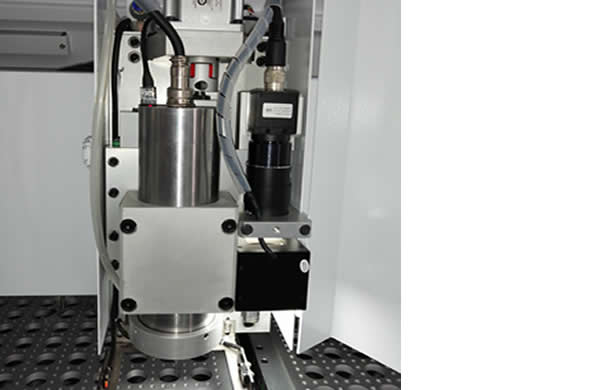

● High quality self cooling long service life routing spindle. |
|
|

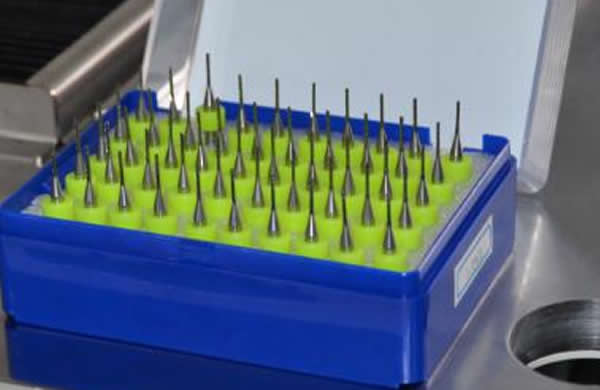

● ∅0.8-∅3.0 mm milling cutter |
|
|
● 400W high-power spindle, which can cut Al board below 2.0mm thickness (machine needs to use custom-cut aluminum board milling cutter) |
|
|

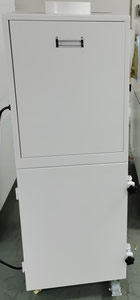

● 2.2KW high power vaccum cleaner provide a clean and low noise work enviroment. |
|
|

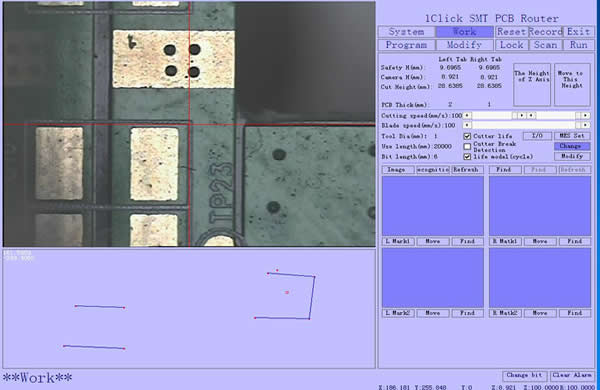

● Self developed softeware makes programming and operating very easy. The software interface can set the Z-axis cutting depth and set different Z-axis cutting depths depending on the thickness of the PCB. Ensure that the Z-axis can cut the PCB at a fixed height. |
|
|
● Milling cut can be used as 2 or 3 section, just set the parameter on sofeware, it has greatly prolonged milling cut' service life. |
|
AR-450 PCB Router features |
|
1. AR-450M PCB Separator adopt x,y,z servo motor and driving system and ball screw, linear guide rail, ensure machine run smooth and precisely. moving accuracy less than 0.05mm, routing accuracy less then 0.05mm. |
|

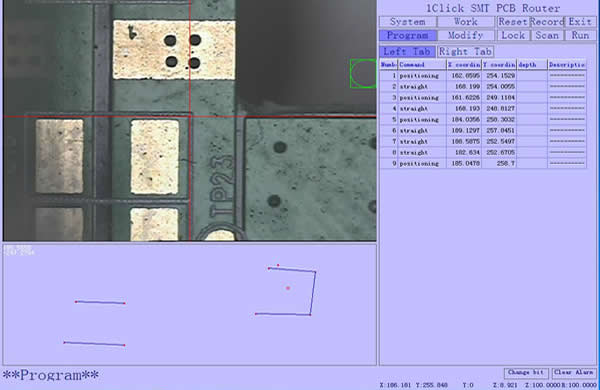

2. Machine is equipped with high resolution CCD, use direct teach programming method with cross cursor of CCD, very easy to operate, software can excute point, line, arc, circle etc command to cut different shape of panelled board, it has mark positioning function, can automatically correct the coordinate offset when PCB position changed. |
|
3. Industrial PC, Windows system and full english self developed softeware makes programming and operating very easy. |
|
4. Euipped with quality, self cooling long service life routing spindle. |
|
5. External silence vaccum cleaner provide a clean and low noise work environment. |
|
6. Milling cut can be used as 2 or 3 section, just set the parameter on sofeware, it has greatly prolonged milling cut' service life. |
|
AR-450 PCB Router Specification |
|
|
Model |
AR-450 |
|
Work station |
1 work station |
|
PCB Size(Max.) |
310×480mm* 1pcs |
|
PCB Thickness |
FR4, glass fiber(Thickness 0.4-3.5mm), Al (Thickness 0.4-2.0mm) hard board |
|
Max component heigh |
50mm |
|
Cutting Speed(Max) |
50mm/s |
|
Moving speed |
Max 500mm/s |
|
Control method |
line, circle, arc, U,L |
|
Repeat Accuracy |
±0.05（mm） |
|
Routing Accuracy |
±0.05（mm） |
|
Drive system |
X/Y/Z Three axis servo motor control |
|
Vacuum cleaner |
3 phase AC 380V 50HZ/2.2 KW |
|
Machine power |
1 phase AC 220V 50HZ/ 1.9 KW |
|
Routing Spindle |
42000rpm/min,Air cooling |
|
Milling Cutter |
∅0.8,-∅3.0 |
|
Tool life control |
Software program control |
|
Programming method |
Direct teach programming method |
|
Machine size |
595（W）1220（D）1500（H)mm |
|
Machine Weight |
350 KG |
|
AR-450 PCB Router Includes: |
|
AR-450 PCB Router:(Include below item) |
|
● AR-450 PCB Router. |
|
● Industrial PC, monitor, Keyboard, mouse. |
|
● 3 aix driving system. |
|
● Vaccum cleaner. |
|
● Milling cutter 10pcs. |
|
● Servo motor driven width mechanism. |
|
● CCD. |
|
● Routing sprindle. |
|
● 1 year parts warranty. |
|
|
|
Optional configuration: |
|
● Customized fixture. |
|
● Milling cutter. |
