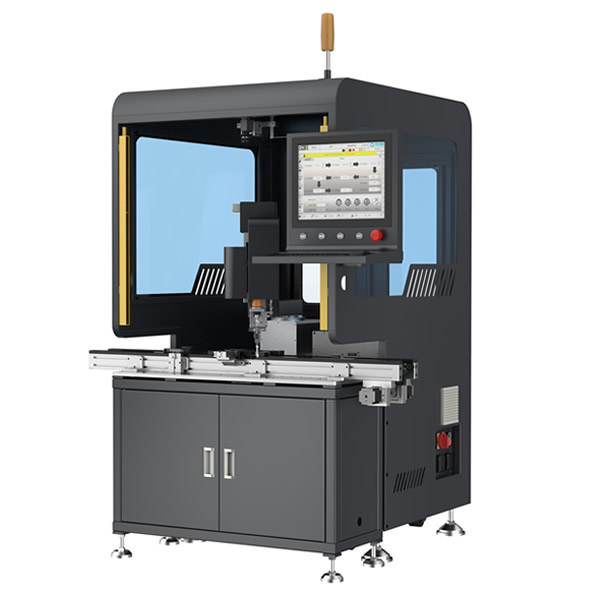

ASD-600S is an embeded screw driving system, it is equipped with 3 axis SCARA robot, servo screw driving system the intellight control system, which can be easily set beside the production line help you realize full automatic screw driving and monitor screw tightening torque in real time.
|
|
|
|
|

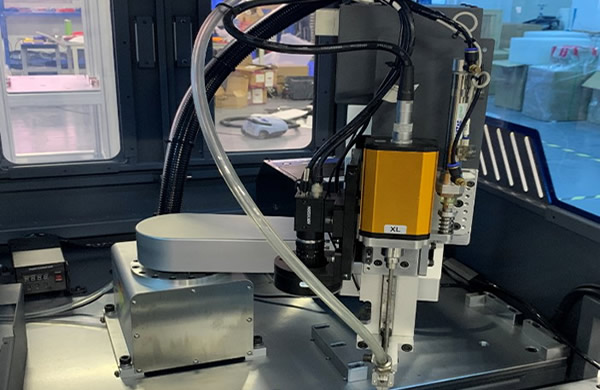

● equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process.
● servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque. |
|
|

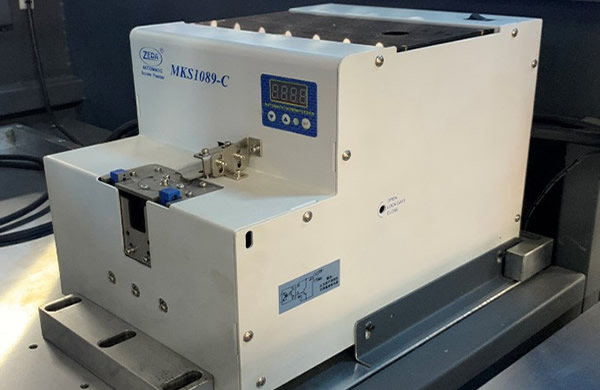

● High quality suck type screw feeder, feed screws stably. |
|
|

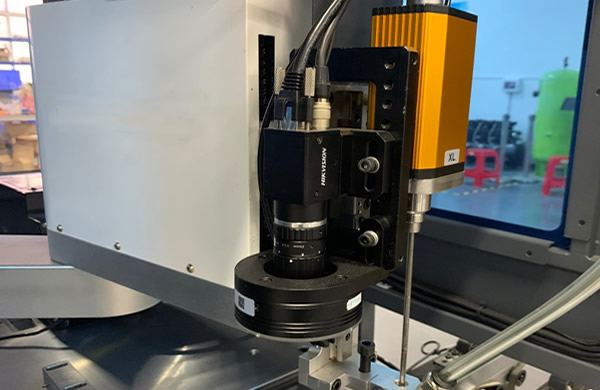

● Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy. |
|
|

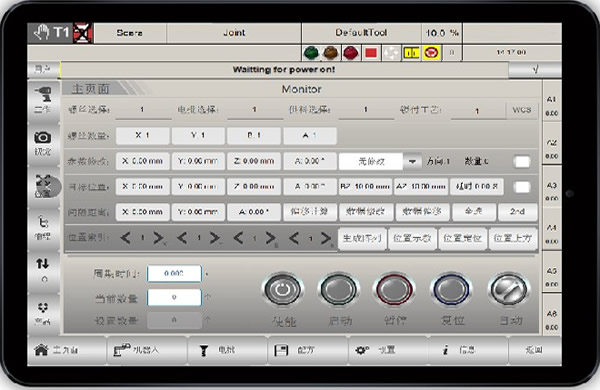

● Windows based software, easy to operate. |
|
Embeded Screw Driving Machine ASD-600S Features: |
|
● ASD-600S adopt modular design, can be easliy set beside production line help you realize full screw driving automation. |
|
● Standard equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process |
|
● ASD-600S is equipped with servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque. |
|
● High quality screw feeding system ensure stable screw feeding . |
|
● Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy. |
|
● Intelligent detection function, can detect abnormal conditions such as missing lock, loose, floating height, etc. |
|
● Windows based software, easy to operate. |
|
ASD-600S Specifications |
|
|
Model |
ASD-600S |
|
Motion system |
3 axis Scara robot , reach : 600mm |
|
Screw driver |
servo motor screw driver *1set, monitor tightenging torque in real time. |
|
Screw feeder |
Suck type screw feeder *1set |
|
Suitable screw size |
M1-M4, customized |
|
Repeat positioning accuracy |
±0.05mm |
|
Z axis travel distance |
100mm |
|
Screw drving efficiency |
approx 2s/pcs |
|
Control system |
Windows OS based Self developed control system |
|
Fault detection |
missing, loose, and floating detection. |
|
Conveyor |
standard machine is not including conveyor, customized conveyor is avalible. |
|
Machine power |
Max 2.5KW |
|
Machine voltage |
AC 220V/50HZ, 1P |
|

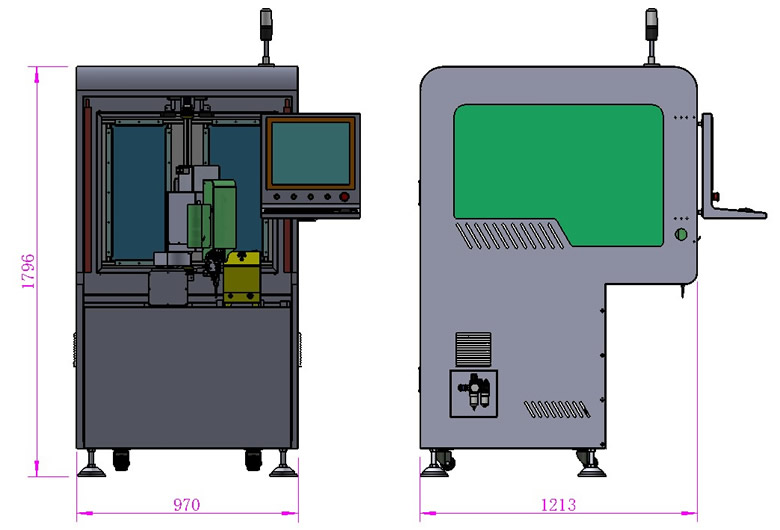

Machine dimensions |
Approx 970*1213*1800mm(not including display and light tower ) |
|
Embeded Screw Driving Machine ASD-600S includes: |
|
Standard configuration: |
|
● Embeded Screw Driving Machine ASD-600S |
|
● servo screw driver *1pcs |
|
● suck type crew feeder *1pcs |
|
● 1 year parts warranty |
