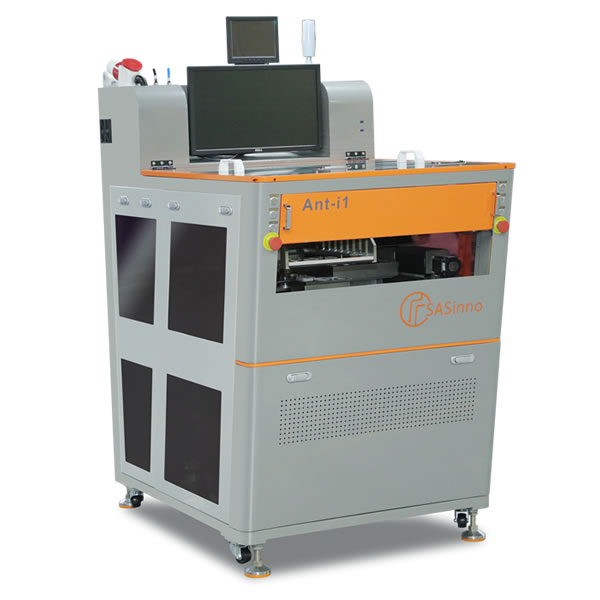

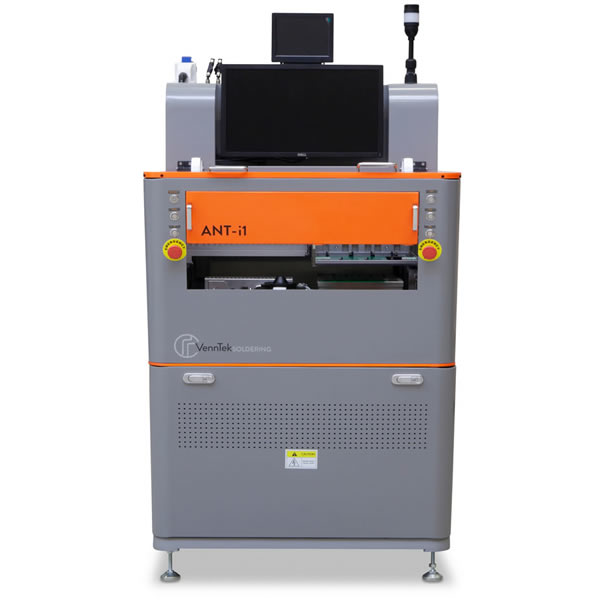

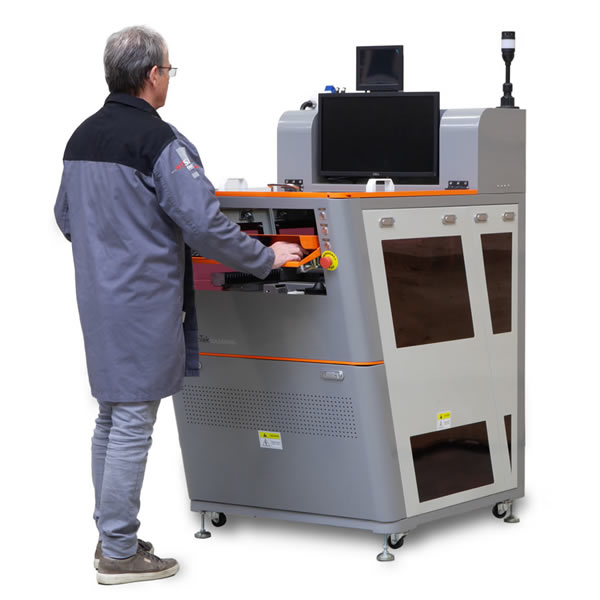

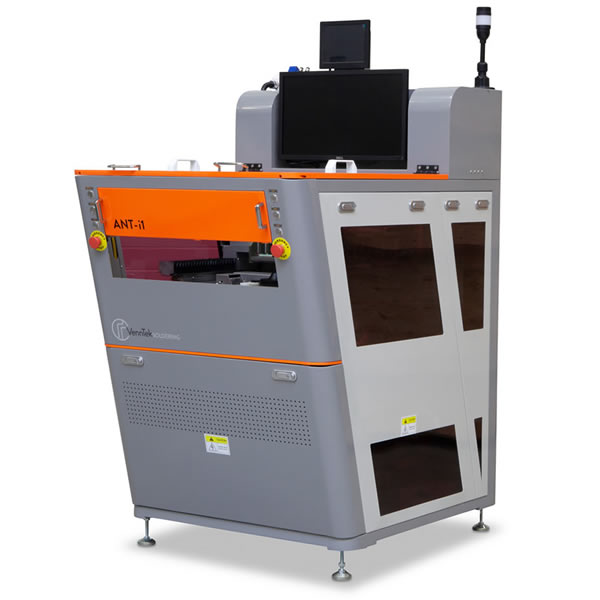

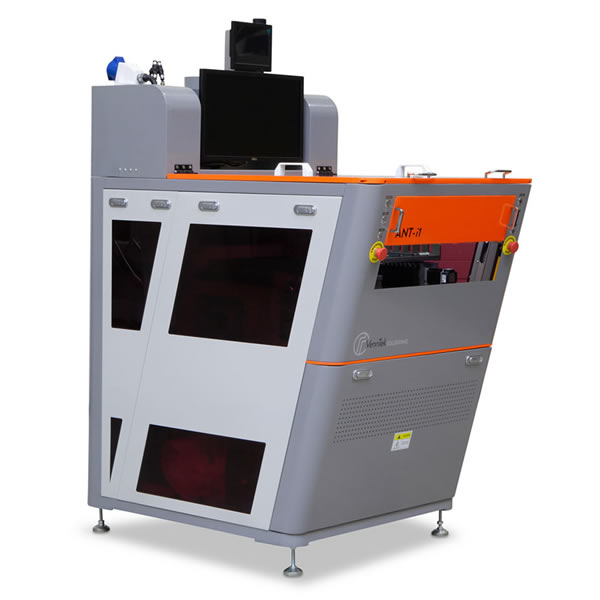

Offline Selective Soldering Machine Ant-i1

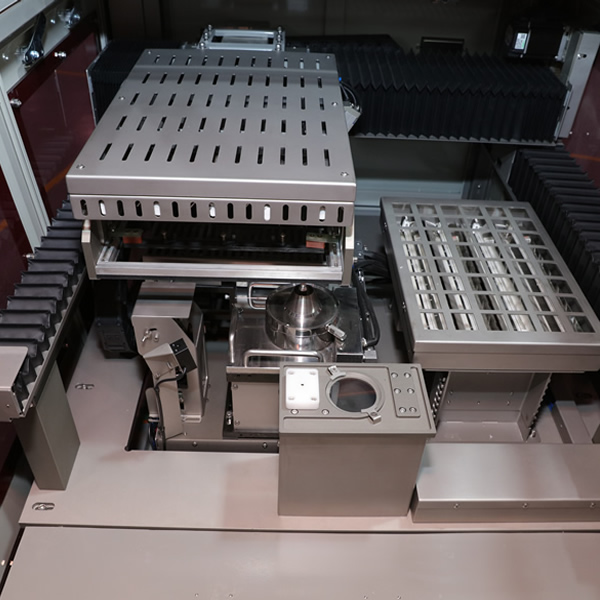

PCB is moved by X/Y table with servo motor, Solder pot is moved in Z with servo motor, drop jet flux is moved in Z with aircylinder.

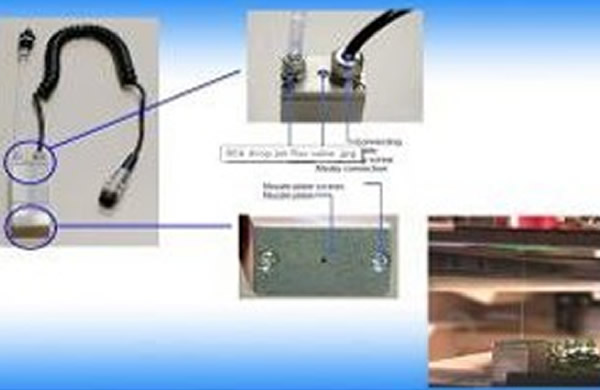

	Spray Flux ● Flx-DropJet : Standard equipped with drop jet valve from Germanny originally, which can meet dia 2mm flux dot dimension.

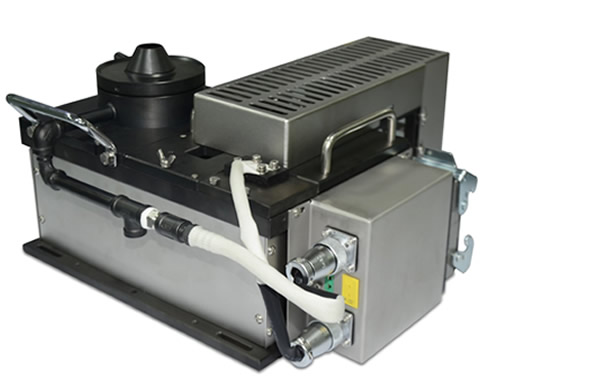

	Selecting Soldering Pot ● Titanium soldering pot, 100% capable for lead free application. Standard equipped with mechanical pump, easy for maintenance. ● N2 direct heating system is standard equipped,enhance the wetting ability for lead free sodlering.

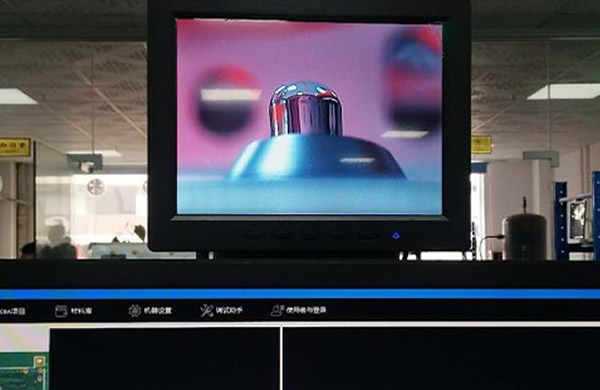

	Live camer ● Sod-ProcMoni: Without open machine's door, operator can see soldering process in real time.

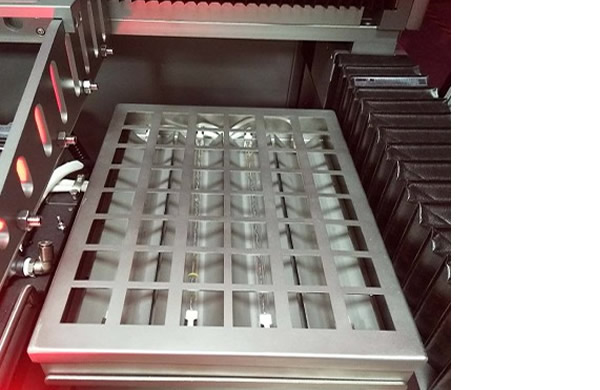

	Preheating ●Pre-BPRE: Bottom preheating zone, before soldering PCB will move here to heat up setting time under setting temperature.

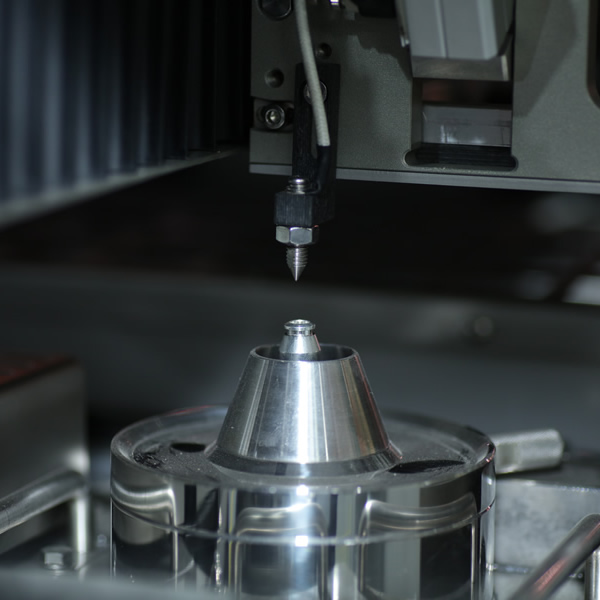

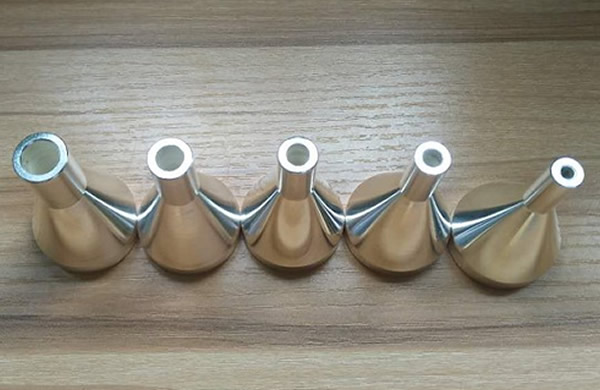

	Solder nozzle ● Sod-WetNoz: Standard equipped with wet nozzle for customer's universal applicaiton. Can also design solder nozzle according cusotmer's application.

Offline Selective Soldering Machine Ant-i1 Features:

● Small footprint, only W990mm x D1308mm.

● Max board L350mm x W260mm (Can manually rotate board to 180degree to meet L700mm x W260mm).

● English Windows 10 interface.

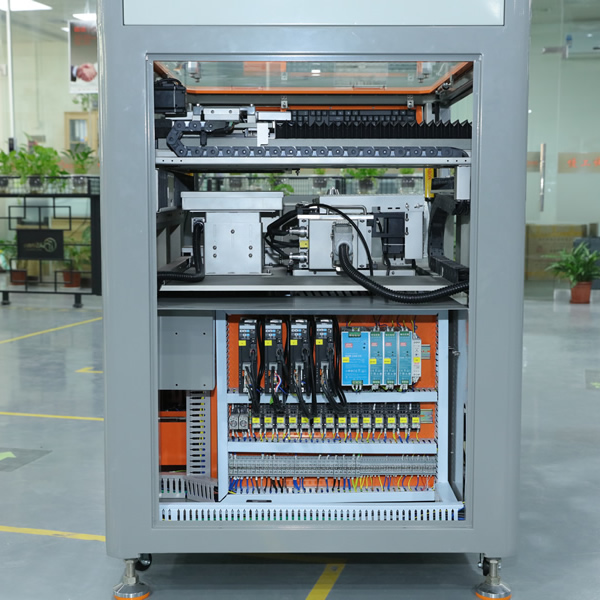

● 3 servo motors and servo drivers for motion.

● Drop jet fluxer made in German.

● Solder pot system with capacity 15kgs.

● Wave height calibration system.

● Bottom IR preheating zone.

● “on-time” liver camera to show soldering process.

● Pre-maintenance count down function.

Ant-i1 Specifications
Item	Ant-i1
General
Operating power/Max power	4KW/6.5KW
PCB dimension	50x50---350x260mm (Can manually rotate board to 180degree to meet L700mm x W260mm)
Machine dimension	W990mm X D1308mm X H1714MM
Net weight	400KG

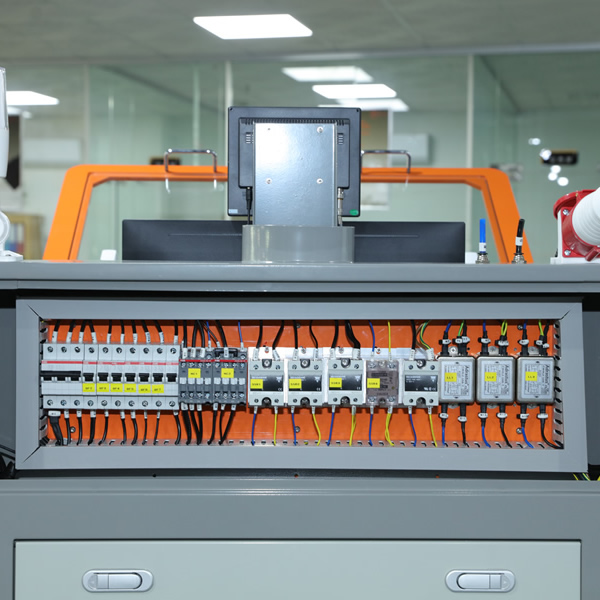

Power supply	1PH 220V 50HZ MAX 30A Equip 40A contactor in factory
Air supply	3-5 bars
Exhausting required	200M3/h
Solder Management
Standard Solder Stations	1
Solder Pot Capacity	15kgs
Heat-Up Time	About 40mins
Max Temperature	380℃
Solder Pot heater	1.2kw
Solder Nozzles
Mini Wave Nozzles	Dia 2 to 8mm
Customized nozzle	Available
Nozzle Material	Proprietary Alloy
(N2) Inertion Management
N2 heater	Standard Equipped
N2 Temp PID Control Range	0 - 300℃
N2 Consumption per Nozzle	1.5m3/H
Required N2 Purity	>99.99%

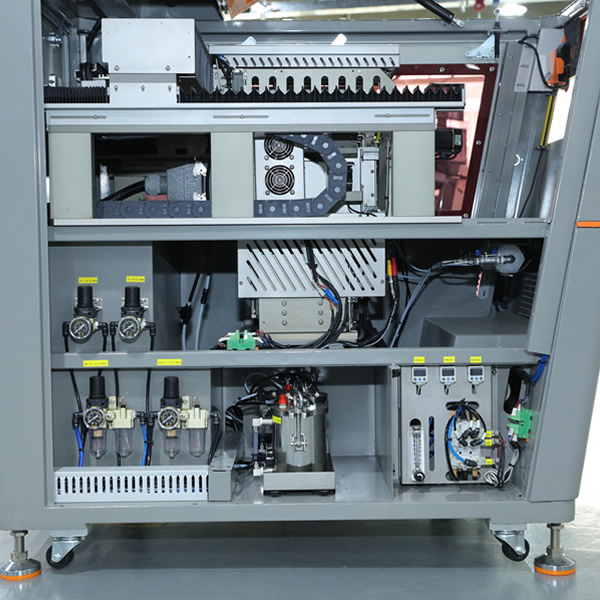

Flux Management
Spray Flux Nozzle	Standard equipped with drop jet nozzle made in Germany
Flux Capacity	1L
Flux Tank	Constant pressure tank
preheat
IR heater	2kw
Controlling System
Industrial PC	Yes
Typical Program Time	10 Minutes
Program method	Draw path in scanned picture of board
Controlling system	PC

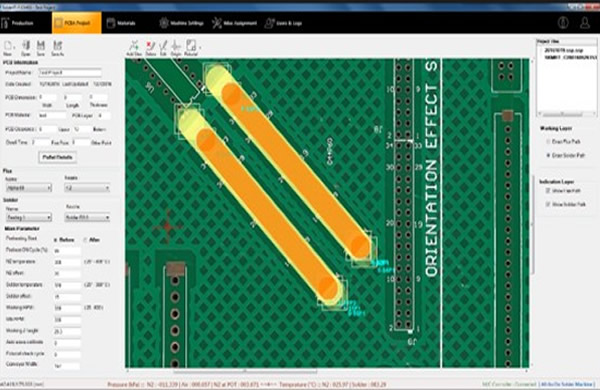

Solder It “Solder it” is windows10 based software. With board scanned picture or Gerber file, “POINT AND CLICK” to “draw and drag” motion path easily, make the initial programming in less than 10 minutes. Path programming :
	“Point and Click” ● to draw path with scanned picture as background, easiest way for path programming.

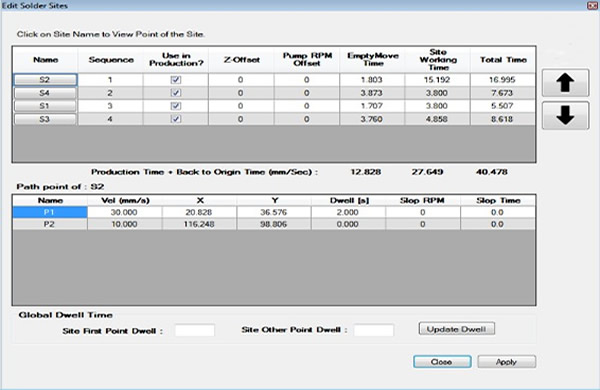

	Solder path editing: ● Moving speed,Z height, wave height, Dwell time, wave slope speed etc are editable, get max flexibility to fit different type of components on the board. Empth move time, site working time, total cycle time are estimated once path programming finished. Easy for balance production line.

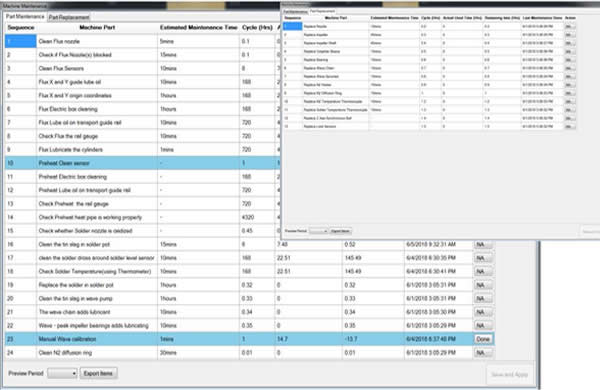

	Maintenance & replacement assisting function : ● we know how important the maintenance for a selective soldering machine. In the software, we list all maintenance job, time taking, comsumable parts life and remain life, etc. It can export to excel list, engineer can check what parts need to replace in next 3 month or 6 months, in this way to they can prepare everything in advance.
