X/Y/Z axis high quality step motor and it's driving system, ensure stable and precise run of motion system. Tiltable platform with 90 degree rotation realize no dead angle glue dispensing. Customized glue feeding system and valve meet different dispensing requirement. Handheld teach pendant with english interface, easy to operate. Powerful software realize point, line, ar, circle etc dispensing process. Dispensing speed, time, delay time etc parameter can be set on software. X/Y axis travel: 400mm/400mm.
|
|
● Built-in a fully-integrated dispensing controller |
|||||||||||
|
|
● Hand-held teach pendant with powerful software is easy for programming. |
|||||||||||
|
|

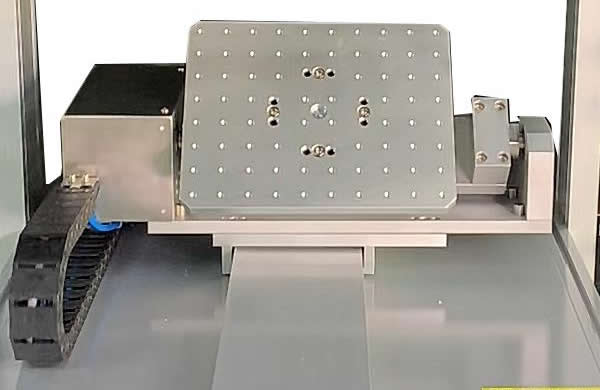

● Programmable tiltable Y axis with 90 degree rotatary platform realize no dead angle glue dispensing. |
|||||||||||
|
|
● Virous valves with glue feeding system meet different fluid dispensing requirement, for examples: silica gel, grease, other fluid etc. |
|||||||||||
|
|

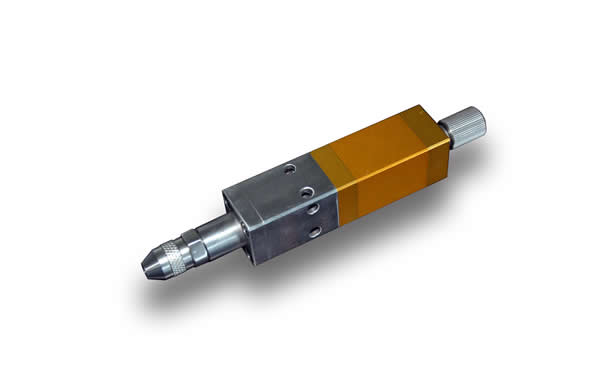

Adjustable precision valve GR-H2222 Plunger structure, small flow rate valve, flow rate can be ajusted, small size and corrosion-resistant, it is suitable for midium-high viscosity, and poor fluidity glue, such as silica gel, epoxy glue, grease, red glue, etc. |
|||||||||||
|
||||||||||||
|
|

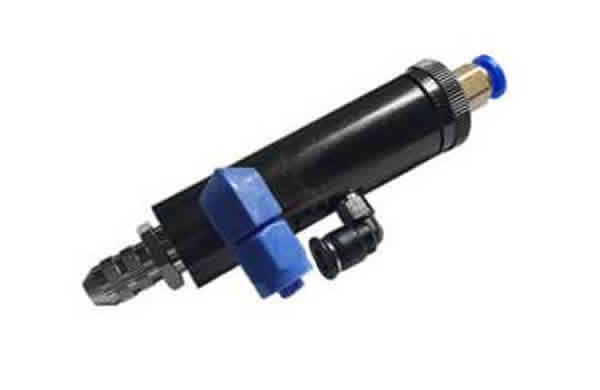

Suck back valve GR-H25 The GR-H25 Suck-Back Valve is designed to prevent extra protection against post-dispense dripping when dispensing medium to high viscosity liquids such as sillicon, grease, etc. |
|||||||||||
|
||||||||||||
|

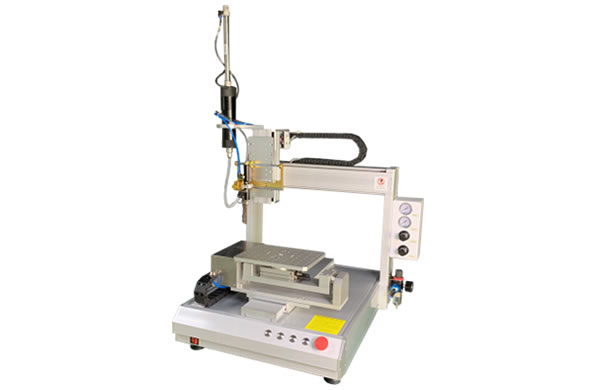

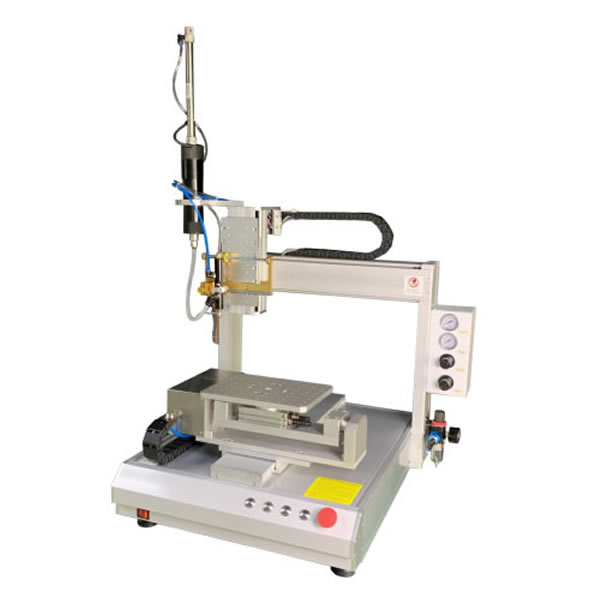

Benchtop Dispensing Machine BD-400RY Features: |
|
● The BD-400RY is an automated desktop type dispensing Robot with tiltable and rotary platform, which can realize no dead angle glue dispenisng compared with traditional 3 axis dispensing robot. |
|
● High quality step motor with high precision linear guide rail and it's driving system, ensure stable and precise run of motion system. |
|
● Machine can fit various quality dispensing valve which can meet different requirement. |
|

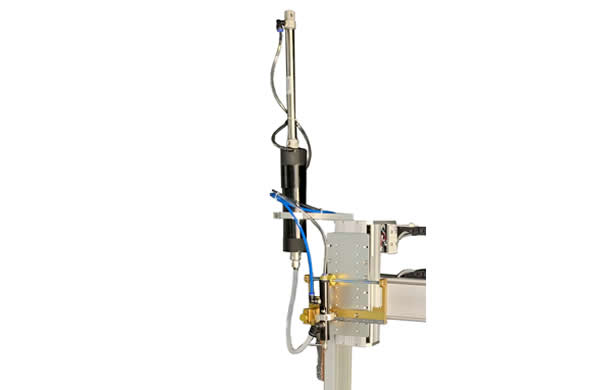

● Customized glue feeding system like cartridge with cylinder pusher, pressure tank is optional to meet different dispensing requirement. |
|

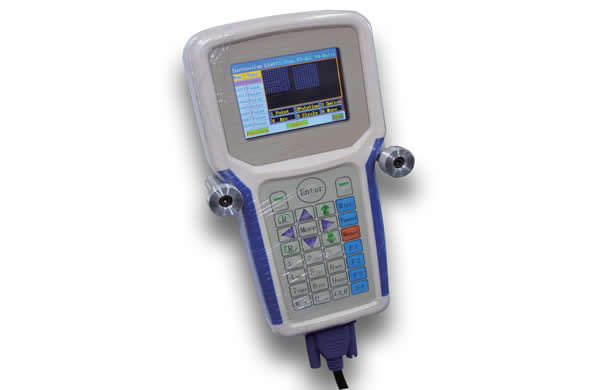

● handheld teaching pendant with powerful software, all english interface, easy to operate. |
|
● Powerful software has the painting point, straight line, multi line segment, three-dimensional arc (spatial arc), round, rectangular, runway, coating, automatic corner rounding, irregular 3D spline curve and other graphical elements; rich handmade teaching function and graphical preview function. |
|
● Powerful software has route copy and array copy fuction, park loaction setting function, coordinate offset correction function, different dispensing height and lifting height setting function, pause and continue running fuction etc. |
|
Benchtop Dispensing Machine BD-400YR Specifications: |
|
|
Model |
BD-400YR |
|
Machine Travel:X/Y |
400mm*400mm |
|
Control System |
Handheld teach pendant |
|
Axis number |
X/Y /Z axis, tiltalbe platform with 90 degree rotataion cylinder |
|
Motion system |
step motor and sychronous belt |
|
Max Work Movement Speed |
Max 500mm/s |
|
Min dispensing diameter |
By valve |
|
Programming Type |
manual teaching |
|
Positioning Accuracy |
+/- 0.05mm |
|
Repeatable Accuracy |
+/- 0.05mm |
|
Power Supply |
AC220V 50~60Hz |
|
Total Power |
750W |
|
Air Requirement |
0.5Mpa |
|
Overall Size L*W*H |
W720*D700*H750mm |
|
Benchtop Dispensing Machine BD-400YR configuration: |
|
Standard configuration: |
|
X,Y,Z axis dispensing machine with rotary platform |
|
Handheld teach pendant |
|
3 axis step motor driving system |
|
1 year parts warranty |
|
Optional configuration: |
|
GR-H2222 presicion dispensing valve |
|
GR-H25 suck back valve |
|
310ml silicon cartridge with cylinder pusher |
