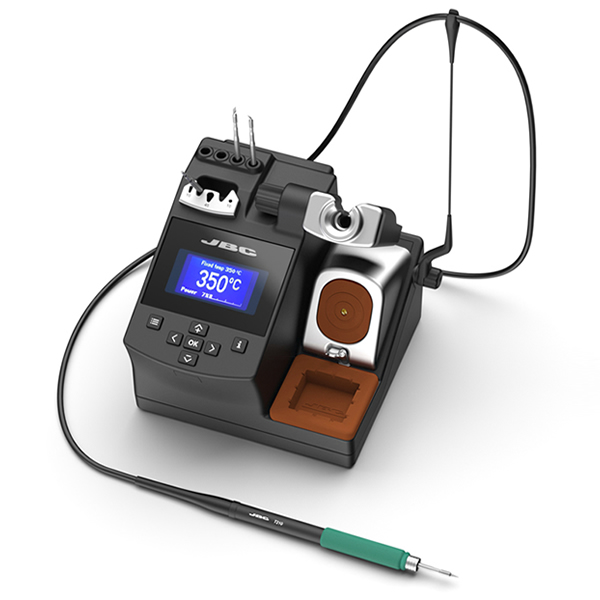

Accuracy is the right word!
Ideal for soldering SMD.
It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:
• JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.
• Complete Tip Cleaning System, with exclusive fast and safe Cartridge Exchanger.

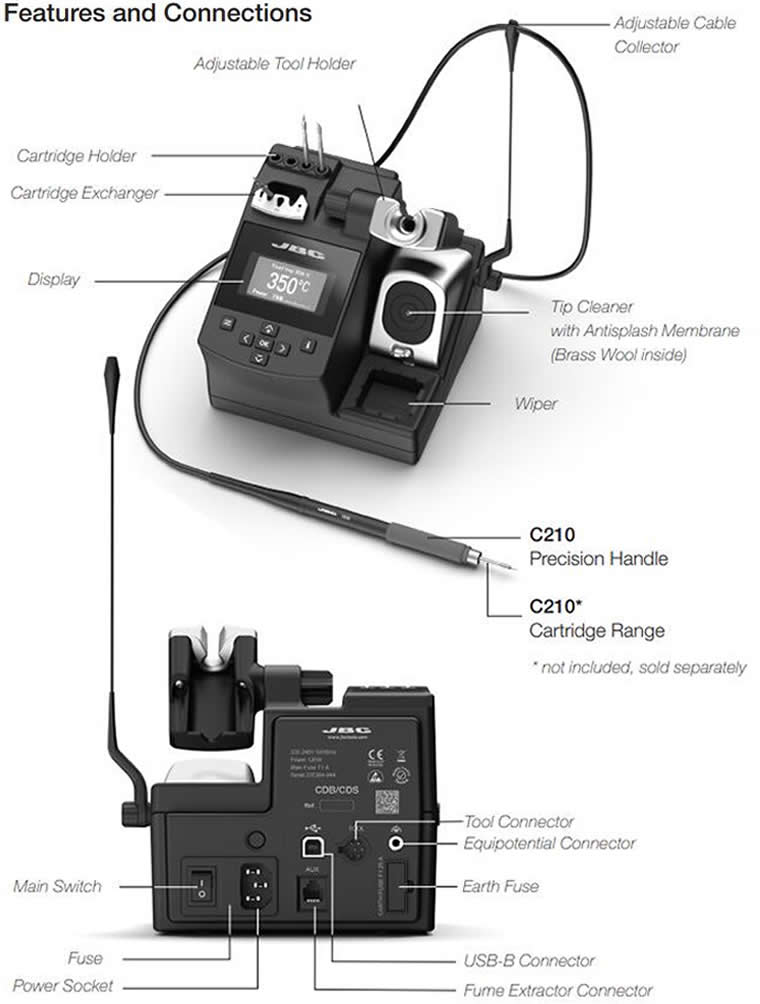

• Connectivity:
- Fume Extractor
- Datas Download
- Software Updates
- Traceability
• Includes T210 Precision Handle that works with our wide range of C210 Cartridges.
*Cartridge not included
CDS Precision Soldering Station Specification: | ||
Ambient operating temp.: | 10 - 50ºC | |
Earthing fuse: | F 1.25A | |
ESD safe: | Meet ANSI/ESD S20.20-2021 | |
FAE / Robot connector: | Remote control or FAE Fume Extractor connection | |
Idle temp. stability (still air): | ±1.5 ºC (Meets and exceeds IPC J-STD-001) | |
Peak power: | 40W | |
Temperature accuracy: | ±3 % (Using reference cartridge) | |
Temp. adjustment: | ±50 ºC (Through station menu setting) | |
Tip to ground resistance: | <2 ohms | |
Tip to ground voltage: | <2 mV RMS | |
Selectable Temperature: | 90 to 450 ºC | |
USB-B: | PC communications | |
Package: | 234 x 234 x 258 mm / 3.27 kg. | |
