CM-S36 Equipped with 18 spindles * 2 gantry and linear motor which makes machine running fast and stably, max mounting speed can readh 170,000 pcs/Hour.
High Speed LED Mounter CM-S36 Features | ||||||||||||||
| Realizes Super-high Placement Speed of 170,000 CPH | ||||||||||||||

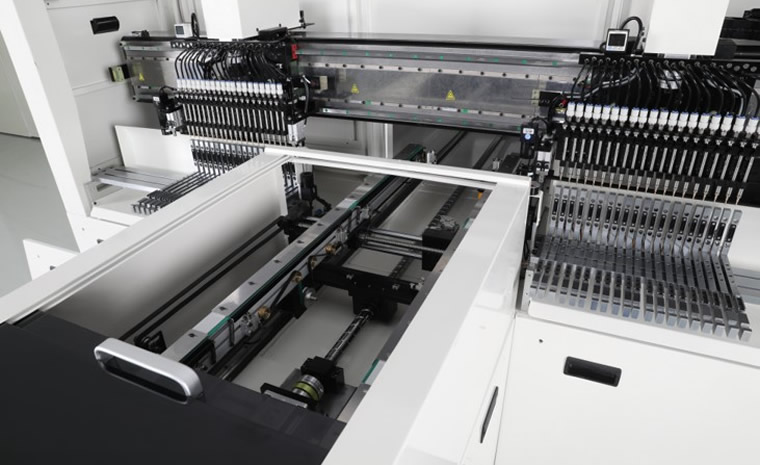

18 spindles * 2 grantry driven by linear motor, realizes the highest placement speed of 170,000 CPH. | ||||||||||||||
 | ||||||||||||||
| Suitable parts and boards: | ||||||||||||||
● Applicable to parts: LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206. ● Applicable to Max. 1200(L) x 330(W) PCBs for long boards applied to LEDs. | ||||||||||||||
| Excellet high quality parts ensures long service life | ||||||||||||||
 | ||||||||||||||
| Excellent Components | ||||||||||||||
| ||||||||||||||
| Self-developed software simplifies production, easy operating and programming. | ||||||||||||||
|
High Speed LED Mounter CM-S6 Specifications |
|
|
Machine model |
CM-S36 |
|
Alignment |
4 camera for positioning PCB, 1 camera for nozzle calibration |
|
Number of Spindles |
2 head *18 spindles, total 36 spindles |
|
Driving method |
X with linear motor, Y with servo motor, Z with step motor |
|
Mounting speed |
Max 170,000 CPH for mounting LED2835 |
|
Component range |
LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206. Max component height:8mm |
|
PCB |
Max 330(W)*1200(L)mm, thickness: 0.5 to 3.0mm |
|

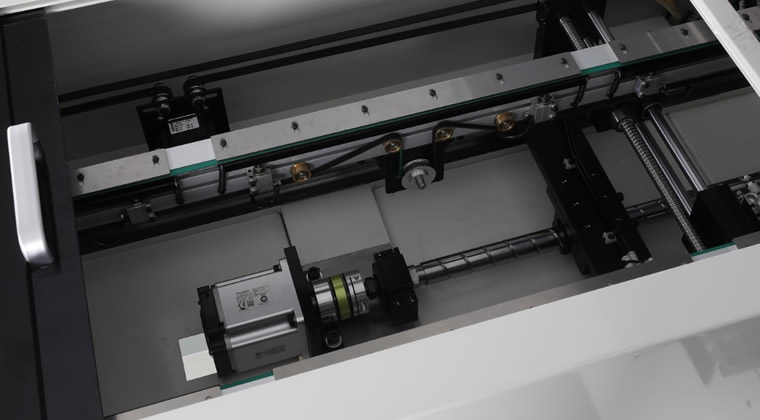

Conveyor |
900+/-20mm |
|
Feeder station |
76 pcs *12mm feeder |
|
Power supply/air pressure |
1P, AC 220V /50HZ, 0.5~0.7Mpa |
|
Power |
2.6KW |
|
Machine weight |
1500KG |
|
Machine size |
2350(L)*2450(W)*1425(H)mm |
