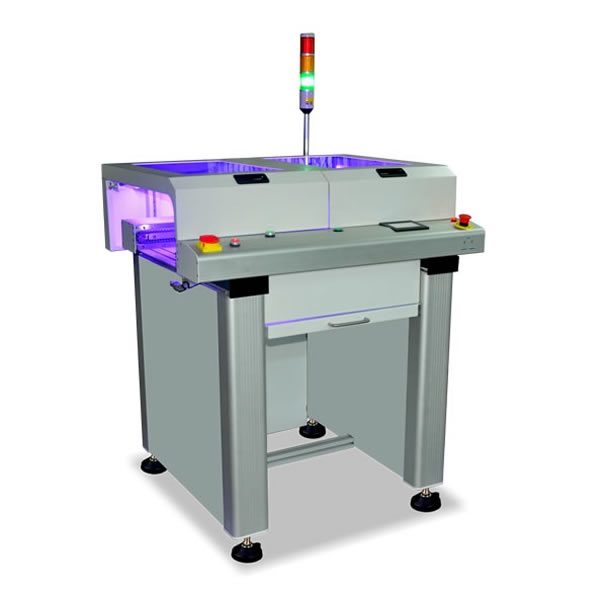

Coating Conveyor Series

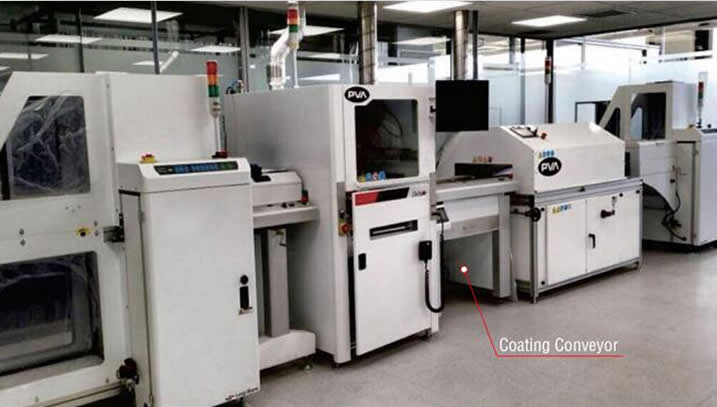

This unit is used as a visual inspection station for operators controlling the boards right after a conformal coating line.

Standard lengths (B) : 500 , 600 , 1000 , 1500 , 2000.

Model	CYCC330L	CYCC460XL
Machine Dimension (L x W x H)	1000 x 1050 x 950	1000 x 1180 x 950
Weight	100kg	120kg
PCB length	50mm - 470mm	50mm - 470mm
PCB width	50mm - 330mm	50mm - 460mm
PCB Thinckness	0.6mm - 4.5mm	0.6mm - 4.5mm
Fixed rail to front dimension(A)	180mm	180mm

* Customized is available

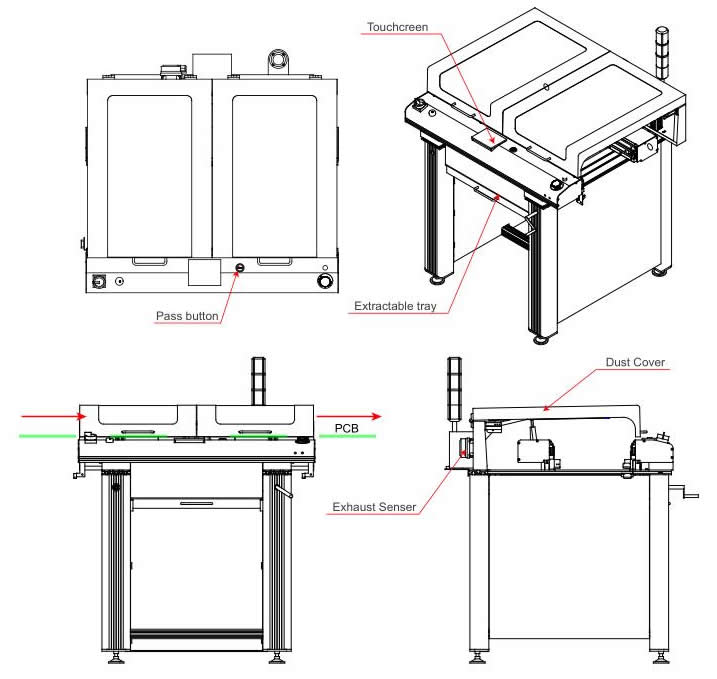

Coating Conveyor Series Features:

● Modular design, PLC + Touch Screen control

● Stability enhanced by heavy design.

● Beautiful design with aluminum finishings.

● Smooth and parallel width adjustment (stainless steel screws).

● Covers which protect the boards against dust.

● 2-segments with independent flash-off time (programmable).

● Automatic/Manual modes with inspection button.

● Independent variable speed controls for each rail.

● UV lights to analyze the coating result over the boards.

● Extractable tray for easy clean-up of coating droplets.

● Automatic width adjustment by touch screen.

● Exhaust sensor which forces to use air extraction.

● SMEMA compatible.

Coating Conveyor Series specification:
Transport height:	950mm ±30mm
Transfer direction:	Left to right
Operation side:	Front of the machine
Fixed rail:	Front of the machine
Interface:	SMEMA
Conveyer concept:	Roller chain
Belt speed:	0.5-20m/min adjustable
PCB edge support:	3mm
Components clearance:	Top 70 mm , Bottom 70 mm or specify
Power supply:	230 VAC/50 Hz/1 Ph
Power consumption:	150VA max
Load bearing:	Max 3kg/PCB
