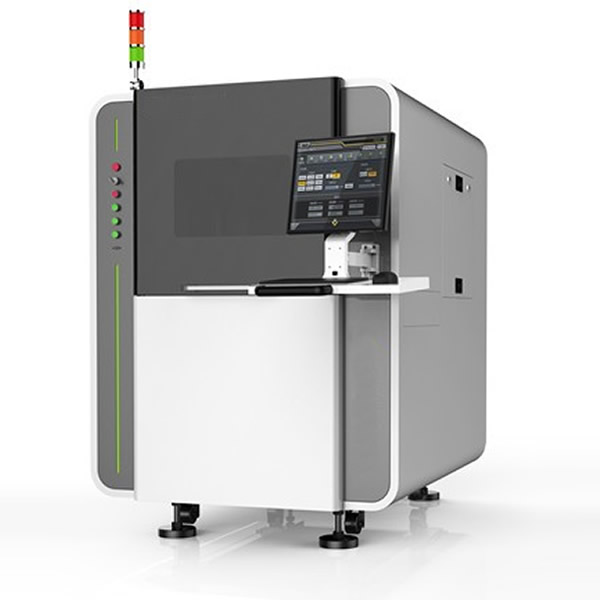

High Precision Laser Cutting System DZ-MS0404

Product characteristics
High Precision Machining Platform(single platform)
High precision linear motor and marble platform to achieve high precision machining requirements

Software systems
A professional laser cutting sub-board software system, simple and easy to learn;

Visual systems
High performance CCD can realize automatic positioning and cutting;

Optical systems
High-quality laser generator and optical system to ensure that the machine is stable working time; all-optical protection makes the operation process very safe;

Available Options

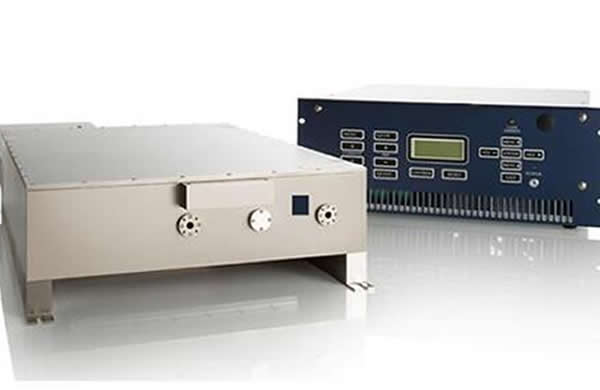

	Imported ultraviolet laser has the advantages of small focus spot, fine marking, small thermal effect and more beautiful marking effect. At the same time, the series of lasers adopt intracavity frequency doubling technology to greatly improve the stability of the laser.

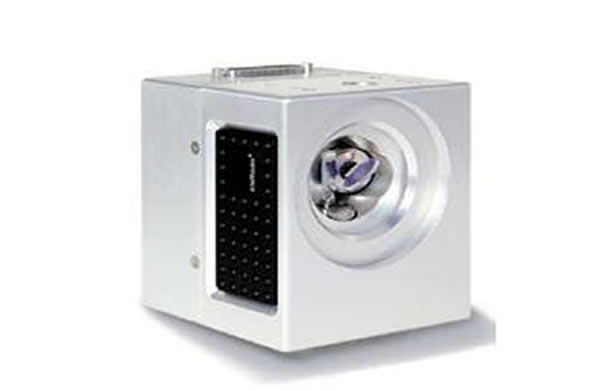

	Imported digital high-speed scanning vibroscope, small volume, fast speed, good stability.

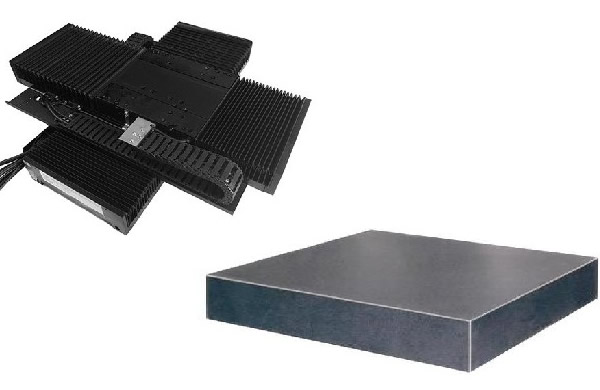

	Linear motor + marble platform to ensure high speed running of machine, high precision cutting effect.

High Precision Laser Cutting System DZ-MS0404 specification:
Model	DZ-MS0404
Laser type	UV laser, 15 W
power supply	AC220±10%, 50/60 HZ, 1P
Working area	400*400mm
Focus spot diameter	<20μm
Machining Precision	±20μm
X /Y Working Platform	Linear motor
Base	High precision marble
working environment	Temperature: 15~30°C; Relative humidity: 5~85%, no condensate, no dust or ash Less dust
Cooling mode	Water cooling
supports graphic format	DXF etc
Dimensions (lengthwidthheight)	About 160012001660mm

High Precision Laser Cutting System DZ-MS0404 Product configuration
	Serial number	Project	Configuration	Specifications	Quantity	Remarks
Host	1	Laser	●	15 W( UV)	1
	2	Mirror	●	High speed	1
	3	Field mirror	●	Far Field Mirror	1
	4	Machine	●	marble platform + linear motor	1
	5	Computer	●	IPC	1
	7	Control Board	●	Self-developed	1
	8	Camera system	●	/	1
	9	Chiller	●	/	1
