The DECAN series models can handle a wide range of components and maximize productivity with various PCB transfer systems.
|
High Reliability Optimized for the Placement of Odd-shape Components as well as LEDs and LED Lenses ● Minimizes defective component placement by recognizing LED direction, different models, and projection position. Places a lens based on the lighting source by recognizing the LED lighting source (Patent registration No. 14742444) |
|
Flexible Production Machine Applicable to Large PCBs that Can be Modified on Site ● Possible to modify the standard machine to the one applicable to large PCBs on site Applicable to Max. 1,200 x 460mm PCBs. |
|
High Performance Reduces PCB Fiducial Mark Recognition Time ● Optimizes the moving path for the recognition of the individual fiducial mark of the LED bar. |
|
Productivity Reduces the Cycle Time by Sharing Bad Marks with Other Machines ● Shares the information on the bad mark of the PCB recognized by the first machine with other machines in the line. |
Advanced Multi- Functional Placer Decan L2 Features |
● Secures the applicability to components and conveyor flexibility. |
● Reduces production time by optimizing the motion sequence. |
● Reinforces odd-shape component recognition by applying 3D lighting system. |

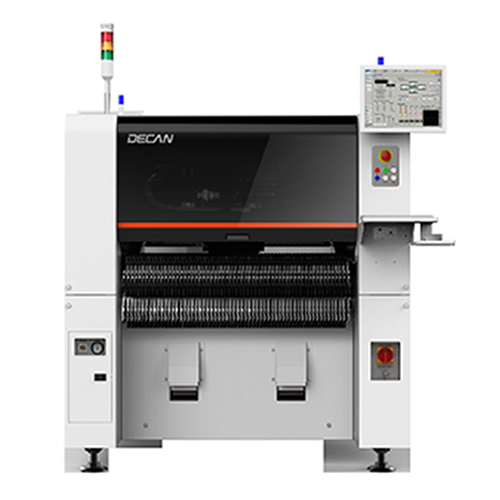

Advanced Multi- Functional Placer Decan L2 Specification: |
|||
Model |
Decan L2 |
||
Alignment: |
Fly Camera + Fix Camera (Option) |
||
The Number of Spindles: |
6 Spindle x 2 Gantry |
||
Placement Speed (Optimum): |
56,000 CPH (Optimum) |
||
Placement Accuracy: |
Chip | ±40 μm @ Cpk ≥ 1.0 | |
IC | ±30 μm @ Cpk ≥ 1.0 | ||
Component Range: |
Fly Camera | 0402 ~ □21 mm | |
Fix Camera | ~ L75 mm Connector (MFOV) | ||
Max. Height | 12 mm (Fly) 25 mm (Fix) | ||
PCB Size (mm): |
Min. | L50 x W40 | |
Max. | Single Lane | ~ L510 x W460 (Standard) ~ L1,200 x W460 (Option) ~ L1,500 x W460 (Option) | |
Dual Lane | ~ L510 x W250 (Standard) ~ L1,200 x W250 (Option) | ||
PCB Thickness (mm): |
0.38 ~ 4.2 |
||
Feeder Capacity (8 mm Standard): |
120 ea / 112 ea (Docking Cart) |
||
Utility: |
power | 3 Phase, AC 200 / 208 / 220 / 240 / 380 / 415V ±10% (50/60 Hz) Max. 5.0 kVA | |
Air Consumption | 5.0 ~ 7.0 kgf/cm2 50 Nℓ/min | ||
Weight (kg): |
Approx. 1,800 |
||
External Dimension (mm): |
L1,430 x D1,740 x H1,485 |
