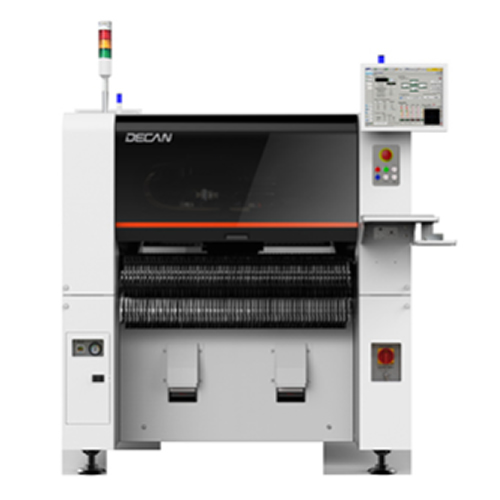

Advanced Chip Shooter Decan S2

init sku time:

The DECAN series models can handle a wide range of components and maximize productivity with various PCB transfer systems.

Available Options

High Performance

High Performance


Productivity Improvement


●   Increases the speed and accuracy for placing microchips (03015) Applies dual-lane PCB transfer system (productivity increases by 15% compared to a single lane)

High Reliability

High Reliability


Adopts a Linear Motor to Realize Low Noise and Vibration


●   Applies the twin servo control and linear motor to the Y-axis to realize low noise and vibration.

Flexible Production

Flexible Production


Supporting Modular Conveyor System for Various Production Environments


●   Possible to produce various models depending on the Modular Conveyor System replaceable on site.

Easy Operation

Easy Operation


Reinforces the Convenience of Machine Software Operation


●   The built-in optimization software allows a PCB program to be easily created and edited.

Advanced Chip Shooter Decan S2 Features

●  Secures the applicability to components and conveyor flexibility.

●  Reduces production time by optimizing the motion sequence.

●  Reinforces odd-shape component recognition by applying 3D lighting system.

Advanced Chip Shooter Decan S2 Specification:

  Model

  Decan S2

  Alignment:

  Fly Camera + Fix Camera (Option)

  The Number of Spindles:

  10 Spindle x 2 Gantry

  Placement Speed (Optimum):

  92,000 CPH (Optimum)

  Placement Accuracy:

  Chip   ±28 μm @ Cpk ≥ 1.0 (03015 Chip)
  IC   ±30 μm @ Cpk ≥ 1.0

  Component Range:

  Fly Camera   03015 ~ □12 mm
  Fix Camera   ~ L75 mm Connector (MFOV)
  Max. Height   10 mm (Fly) 15 mm (Fix)

  PCB Size (mm):

  Min.   L50 x W40
  Max.   Single Lane   ~ L510 x W460 (Standard)   ~ L1,200 x W460 (Option)   ~ L1,500 x W460 (Option)
  Dual Lane   ~ L510 x W250 (Standard)   ~ L510 x W280 (Option)   ~ L1,200 x W250 (Option)

  PCB Thickness (mm):

  0.38 ~ 4.2

  Feeder Capacity (8 mm Standard):

  120 ea / 112 ea (Docking Cart)

  Utility:

  power   3 Phase, AC 200 / 208 / 220 / 240 / 380 / 415V ±10% (50/60 Hz) Max. 5.0 kVA Max. 5.0 kVA
  Air Consumption   5.0 ~ 7.0 kgf/cm2 50 Nℓ/min

  Weight (kg):

  Approx. 1,800

  External Dimension (mm):

  L1,430 x D1,740 x H1,485
