OUTSTANDING PERFORMANCE The “Drymaster ”series has an outstanding performance for drying moisture sensitive components and pcbs.
|
Desiccant Dry Cabinet & N2 Dry Cabinet Details: |
|
|
|
Equiped with LED light ● Equiped with LED light, lighting automatically turn off in 30 minutes without any operation. |
|
|
Moduler Feature : ● Ultra-low humidity storage of ≤5%RH ● 2-year warranty ● Electric supply: 110 to 230 VAC |
|
|

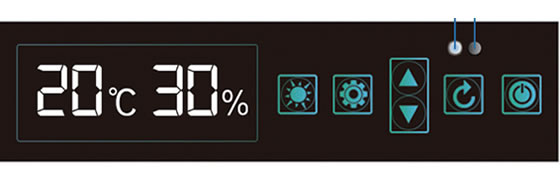

User friendly LCD diaplay ● User friendly LCD diaplay. |
|
|

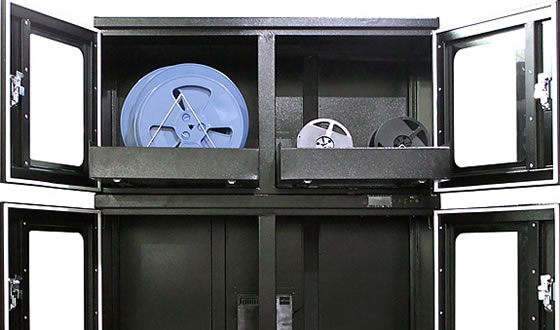

Optional slide shelves ● Optional slide shelves. |
|
|

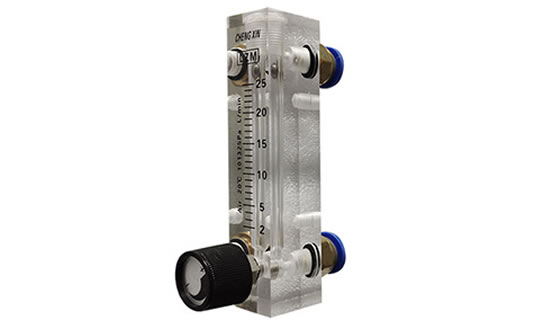

Optional N2 moduler ● Optional N2 moduler, use desiccant dehumidification and smart nitrogen moduler together, this makes the dehumidification process faster and more reliable with the desiccant dry units operating simultaneously. |
What is dry cabinet and how it works?
In the Electronics Manufacturing Industry, it has a wide usage area for storing Moisture Sensitive Components (MSDs) and PCBs (Printed Circuit Boards) in a moisture-free environment. The rising process temperatures with the transition to lead-free soldering create a threat to components and PCBs. The moisture inside the electronic components entering the SMD Reflow Soldering Ovens evaporates suddenly at high temperatures and tries to get out of the component with pressure and causing malfunctions such as cracking, swelling, delamination, and popcorn effect. According to IPC/JEDEC J-STD-033 Joint Industry Standard moisture sensitive devices (MSDs) should be stored in a moisture-free environment.
We provide smart storage solutions for drying,the dry cabinets are fully auto dry cabinet designed to be stable at ≤5%RH without adjustment according to the J-STD-033D standard for moisture sensitive SMT components (MSL 3)

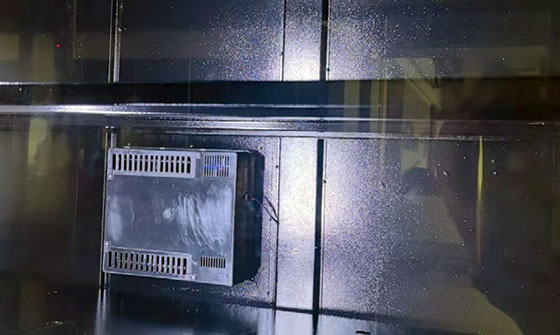

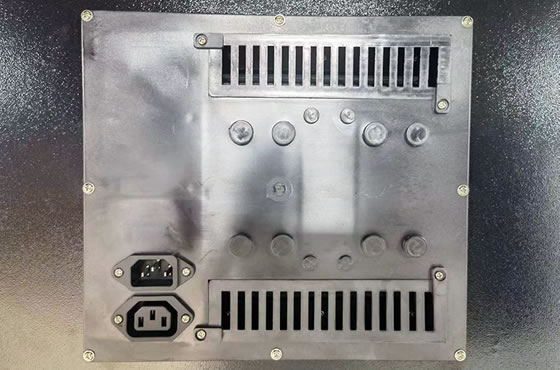

Our Dry cabinets are modular designed (body, power bloc, display with probe, dryer, shelves,...) this allow to easily change or replace the cabinet configuration.

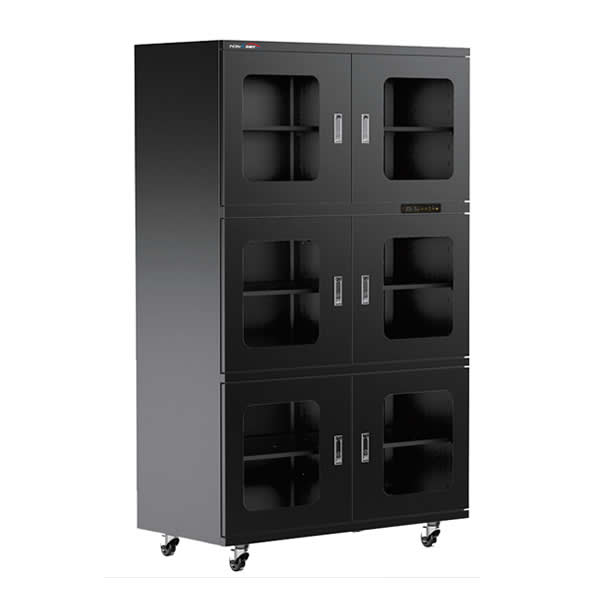

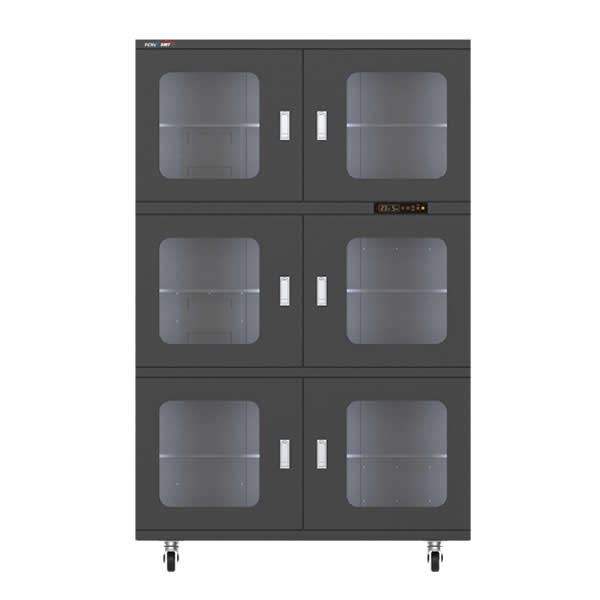

Drymaster 1500L Specifications | ||||
Model | Drymaster 160L | Drymaster 555L | Drymaster 1000L | Drymaster 1500L |
Electrical Requirements | 110V-220V | 110V-220V | 110V-220V | 110V-220V |
External Size W/D/H | W450*D450*H1010mm | W590 x D590 x H1740mm | W1190 x D590 x H1740mm | W1190 x D690 x H1960mm |
Internal Size W/D/H | W448*D422*H848mm | W540 x D560 x H1580mm | W1140 x D560 x H1580mm | W1140 x D660 x H1800mm |
Capacity | 160L | 555L | 1000L | 1500L |
No. Of Shelves | 2 Adjustable | 5 Adjustable | 5 Adjustable | 5 Adjustable |
Wheels | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard | 2 antistatic, with brakes, 2 standard |
Power Consumption | Max. 150W | Max. 300W | Max. 550W | Max. 600W |
Humidity Range | ≤5% RH | |||
Color | Black | |||
Structure | 1 mm thick carbon steel with antistatic paint | |||
Door | Compression handles and glass windows | |||
ESD Paint | 103 ~109 Ω. (surface resistance) | |||
