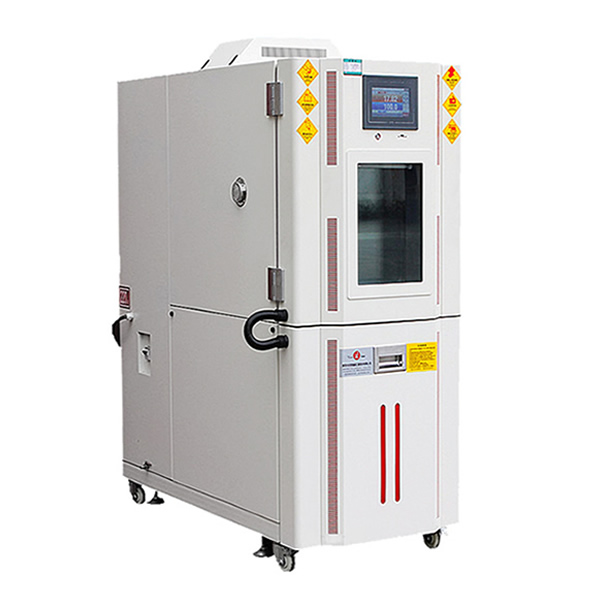

Programmable fast temperature changing chamber based on THC series, it has fast temperature changing function. it test the performance of heat, cold, dry, humidity resistance for material, it is suitable for test of electronic devices, instruments, plastic products, metal, food, chemical etc.
|
Programmable Fast Temperature Changing Chamber FTC Series Features: |
|
1. Programmable fast temperature changing chamber based onTHC series, it has fast temperature changing function. |
|
2. Professional temperature and humidity control software with profile record function, do not need additional profiler. |
|
3. Controller has Preventing electromagnetic interference function with SGS certificate. |
|
4. The refrigerant flow is controlled by servo control valve to save electricity 30%. |
|
5. Machine has Defrosting function(defrost every 800 cycle, defrosting 2 hours each time, integration test can reach 25% energy saving ). |
|
6. With vacuum glass observation window, directly monitor the test process effectively. |
|
7. Internal chamber is made of SUS 304 material. |
|
8. High quality parts ensures long service life of the machine, such as TECUMSEH compressor, Danfoss heat exchanger, ABB breaker etc. |
|
Programmable Fast Temperature Changing Chamber FTC Series Test Standard: |
|
Meet test requirement as below : |
|
● GB/Bb T2423.2-89 high temperature test method. |
|
● GB2423.1-89 test A: low temperature test method 6. |
|
● Ab IEC60068-2-1 low temperature test method Ab. |
|
● GJB150.4-1986 test at low temperature. |
|
● EIA - 364-59 test at low temperature. |
|
● IEC60068-2-38 temperature cycle. |
|
● IEC60068-2-78 constant humidity and temperature. |
|
● IEC60068-2-30 temperature cycle. |
|
● EIA - 364-31C humidity resistance. |
|
● GB/T2423.3 humidity combined temperature cycle test. |
|
● MIL-STD-202G-103B humidity test. |
|
● GJB150.4-86 Environmental test methods for military equipment-low temperature test. |
|
● GJB150.3-86 Environmental test methods for military equipment-high temperature test. |
|
● GJB150.9-86 Environmental test methods for military equipment-humidity and temperature test. |
|
Programmable Fast Temperature Changing Chamber FTC Series Specification |
||||||
|
Model |
FTC-80 |
FTC-150 |
FTC-225 |
FTC-408 |
FTC-800 |
FTC-1000 |
|
WxHxD(cm)lnternal Dimensinos |
40x50x40 | 50x60x50 | 60x75x50 | 80x85x60 | 100x100x80 | 100x100x100 |
|
WxHxD(cm)External Dimensinos |
62x158x146 |
72x168x155 |
82x183x155 |
100x193x165 |
122x208x185 |
122x208x205 |
|
lnner chamber volume |
80L/150L/225L/408L/800L/1000L | |||||
|
Temperature Range |
-70℃～+150℃(B:-40℃D:-70℃) |
|||||
|
Humidity Range |
20%~98%R.H.(10%~98%R.H/5%~98%R.H R.H is a special optional condition ) | |||||
|
Display resolution/Unifoymity of temperature and humidity |
±0.1℃；±0.1%R.H./3.0℃; ±3.0%R.H |
|||||
|
Temperature Rising/Falling Time |
Approximate 3.0-15℃/minute/℃/3.0-15℃/minute | |||||
|
lnner and Outer Materials |
The inside case for SUS stainless steel mirror board,outside the box for iron plate |
|||||
|
Insulation Materials |
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | |||||
|
Cooling System |
Air.water cooling |
|||||
|
Protection Devices |
Fuse-free switch, overloading protection switch for compressor, high and low coolant pressure protection switch, over-humidity and over-temperature protection switch, fuses, failure waming system | |||||
|
Accessories |
watching window, 50mm testing hole, PL internal bulbs partition plate, dry and wet ball gauze |
|||||
|
Control panel |
TH-900C | |||||
|
Compressor Brand |
French Tecumseh |
|||||
|
Power |
1Φ220VAC±10%50/60Hz﹠3Φ380VAC±10%50/60Hz | |||||
