Power Source: AC:220 ±10%, 50/60HZ 2.5KW Air Pressure:4-6Kgf/cm2 Air Consumption:5L/min Operating Temperature:-20℃~+45℃ Working environment humidity:30%~60% Machine Weight Approx: Approx: 1000Kg

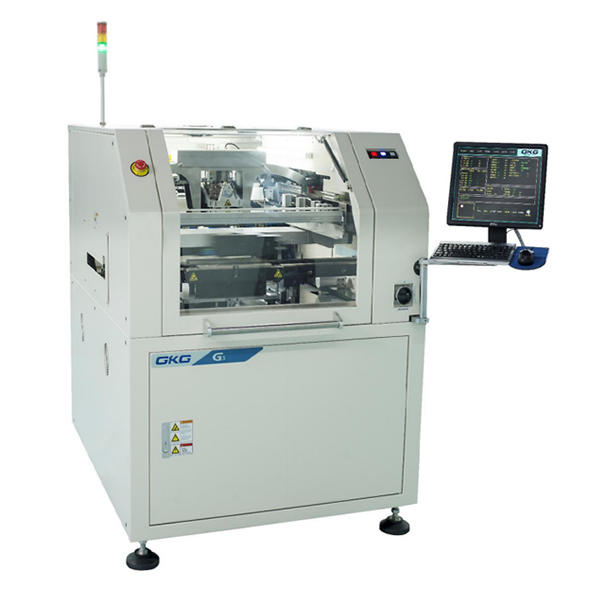

Full Automatic Solder Paste Printing Machine G5 Specification: |
|
Model |
G5 |
Machine Performance |
|
Repeat Position Accuracy: |
±0.01mm |
PrintAccuracy: |
±0.025mm |
Based on the third party test system(CTQ)verify the actual solder paste printing position repeat precision |
|
Cycle time: |
<8sec |
Printing Parameters |
|
Snap-off: |
0-20mm |
Print Mode: |
One/Twice |
queegee Type: |
0.5~20Kg |
Print Mode: |
One/Twice |
Queegee Type: |
Rubber/Squeegee Blade (angle 45/55/60) |
Print Speed: |
10~200mm/sec |
Print Pressure: |
0.5~10Kg |
The template frane size: |
370*370mm~737*737mm |
Cleaning System: |
Drops of ran type cleaning system |
Ireinforced vacuum absorption | |
Dry, Wet Vacuum three modes | |
Substrate processing |
|
Maximum board size: |
400*340mm |
Minimum board size: |
50*50mm |
Board thickness: |
0.4~6mm |
Maximum board weight: |
3kg |
Board edge clearance: |
2.5mm |
Board height: |
15mm |
Transport speed: |
900 ± 40mm |
(Max) Transport speed: |
Segmented control, 1500mm/s (Max) |
Transport direction: |
One stage |
Board clamp: |
Patented over the top clamping |
Side clamping | |
Platform vacuum | |
Support System: |
Magnetic Pin |
Support Block | |
manual Up-down table | |
Vision |
|
CCD FOV: |
10*8mm |
Fiducial maik types: |
Standard Fiducial Mark Shape |
Pad | |
Hole | |
Camera System: |
Look up/dcwn optics structure |
CCDdigital camera | |
Geomedy pattern match | |
Machine parameter |
|
Power Source: |
AC:220 ±10%, 50/60HZ 2.5KW |
Air Pressure: |
4-6Kgf/cm2 |
Air Consumption: |
5L/min |
Operating Temperature: |
-20℃~+45℃ |
Working environment humidity: |
30%~60% |

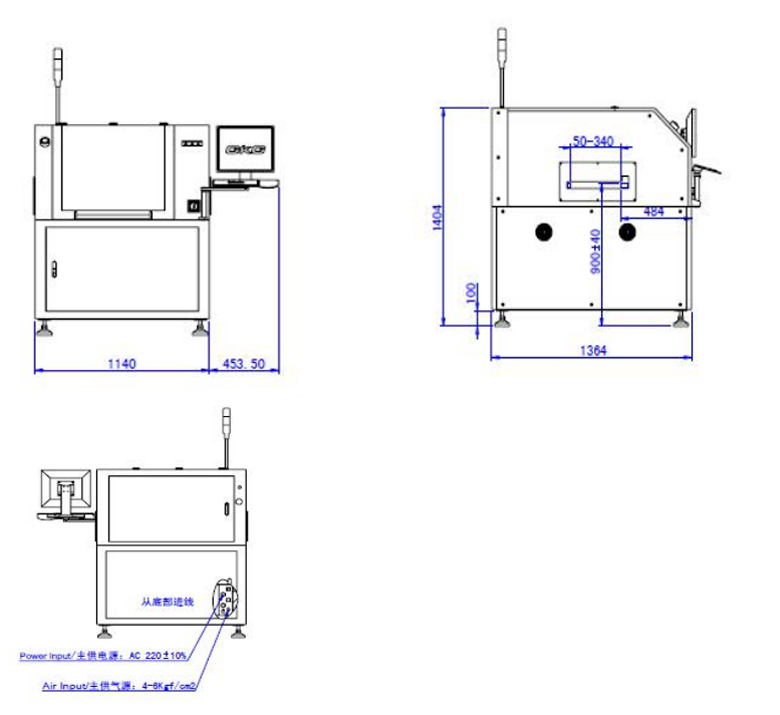

Machine dimension (without Tower light): |
1404(H) mm |
Machine Length: |
1140(L) mm |
Machine Width: |
1364(W) mm |
Machine Weight Approx: |
Approx: 1000Kg |
