The GR-400B is an automated X/Y/Z desktop dispensing Robot with two 360 degree rotary platform, which can realize dispensing glue on 4 side of the product.
|
|
● X/Y/Z desktop dispensing Robot with two 360 degree rotary platform, which can realize dispensing glue on 4 side of the product, such as transfomer etc. ● Distance of double head is adjustble. ● A/B rotation platform can be controlled independently. |
|||||||||||
|
|

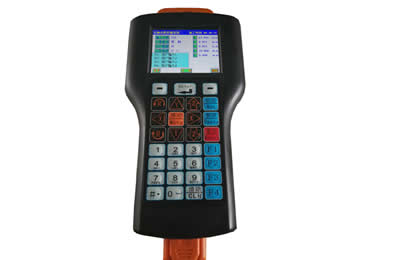

● Hand-held teach pendant with powerful software is easy for programming. |
|||||||||||
|
|

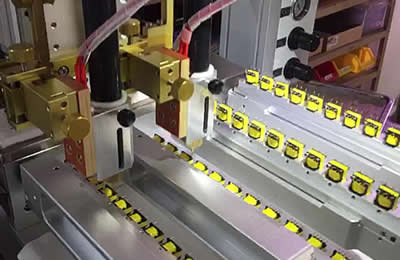

● Typical application: dispensing glue on 4 side of small tranformer. |
|||||||||||
|
|

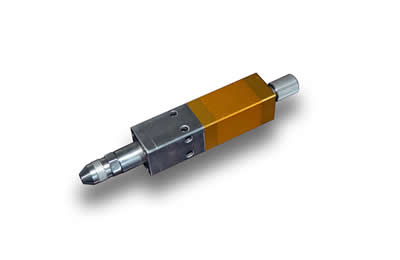

Micrometer high precision valve GR-D2121 Plunger structure, flow rate can be ajusted precisely by micrometer, small size and corrosion-resistant, it is suitable for UV glue, paint, oil etc. low viscosity, and good fluidity glue. |
|||||||||||
|
||||||||||||
|
|

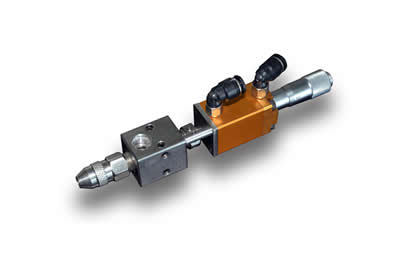

Adjustable precision valve GR-H2222 Plunger structure, small flow rate valve, flow rate can be ajusted, small size and corrosion-resistant, it is suitable for midium-high viscosity, and poor fluidity glue, such as silica gel, epoxy gluegrease, red glue, etc. |
|||||||||||
|
|
||||||||||||
|
|

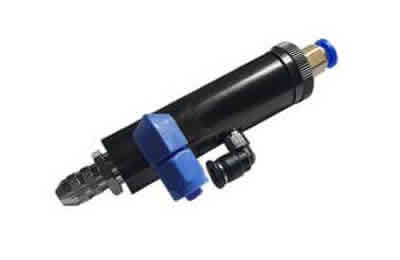

Suck back valve GR-H25 The GR-H25 Suck-Back Valve is designed to prevent extra protection against post-dispense dripping when dispensing medium to high viscosity liquids such as sillicon, grease, etc. |
|||||||||||
|
||||||||||||
|

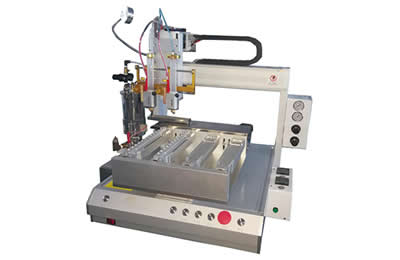

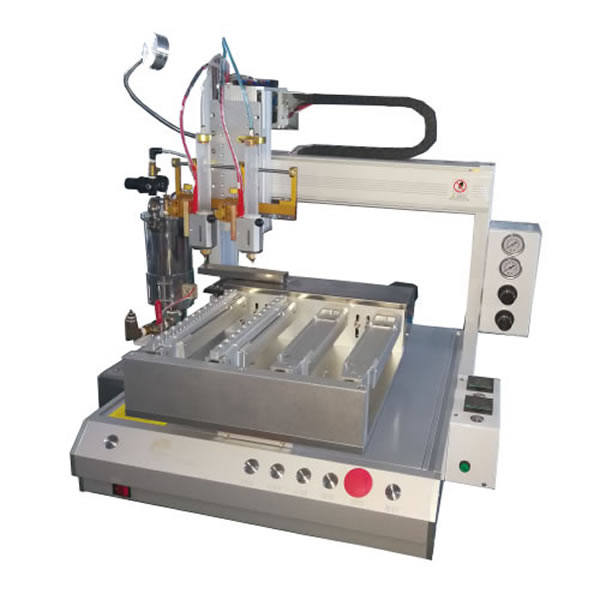

5 Axis Benchtop Dispensing Machine GR-400B Features: |
|
● The GR-400B is an automated X/Y/Z desktop dispensing Robot with two 360 degree rotary platform, which can realize dispensing glue on 4 side of the product, such as transfomer etc. |
|
● X/Y axis and two rotation axis adopt high quality close-loop step motor and it's driving system, ensure stable and precise run of motion system. |
|
● Two rotation platform can be controlled independently. |
|
● Double head dispensing system, distance between double head is adjustable. |
|
● Machine can fit various quality dispensing valve which can meet different requirement. |
|
● Customized glue feeding system like cartridge syringe, pressure tank is optional to meet different dispensing requirement. |
|
● handheld teaching pendant with powerful software, all english interface, easy to operate. |
|
● Powerful software has the painting point, straight line, multi line segment, three-dimensional arc (spatial arc), round, rectangular, runway, coating, automatic corner rounding, irregular 3D spline curve and other graphical elements; rich handmade teaching function and graphical preview function. |
|
● Powerful software has route copy and array copy fuction, park loaction setting function, coordinate offset correction function, different dispensing height and lifting height setting function, pause and continue running fuction etc. |
|
5 Axis Benchtop Dispensing Machine GR-400B Specification： |
|
|
Model |
GR-400B |
|
Machine Travel:X/Y |
400mm*400mm |
|
Control System |
Handheld teach pendant |
|
Axis number |
X/Y /Z axis and A/B two rotation axis |
|
Motion system |
X/Y and A/B axis: close-loop step motor and sychronous belt Z axis: step motor and sychronous belt |
|
A/B axis rotation angle |
360 degree |
|
Max Work Movement Speed |
Max 500mm/s |
|
Programming Type |
manual teaching |
|
Repeatable Accuracy |
+/- 0.05mm |
|
Power Supply |
1phase, AC220V 50~60Hz |
|
Total Power |
750W |
|
Air Requirement |
0.5Mpa |
|
Overall Size L*W*H |
L770mm×W710mm×H720mm |
|
5 Axis Benchtop Dispensing Machine GR-400B Configuration: |
|
Standard configuration: |
|
◎ X/Y/Z, A/B 5axis dispensing machine. |
|
◎ Handheld teach pendant. |
|
◎ 5 axis step motor driving system. |
|
◎ 1 year parts warranty. |
|
Optional configuration: |
|
◎ Customized fixture * 6 pcs. |
|
◎ Product removing tool * 1pcs. |
|
◎ 5L SUS pressure tank with heating. |
|
◎ GR-H2222 presicion dispensing valve. |
|
◎ GR-D2121 presicion dispensing valve. |
|
◎ GR-H25 suck back valve. |
|
◎ Heating device for double syringe. |
|
◎ Additional spare syringe preheating device. |
