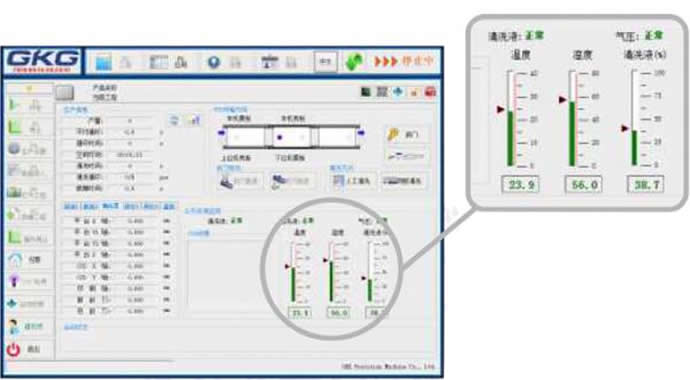

GSK with excellent information acquisition capabilities can use temperature and humidity detection & camera scan code functions, allowing you to have absolute control over various information such as the production process environment and product materials.
|
|
Overall perception ● GSK with excellent information acquisition capabilities can use temperature and humidity detection & camera scan code functions, allowing you to have absolute control over various information such as the production process environment and product materials. |
|
|
Intelligent processing ● As for the necessary equipment parameter debugging during the production process, GSK provides you with the online function of SPI according to the monitoring status of the equipment, so that the equipment engineers can "free their hands" and realize the intelligent control of material replacement and printing quality. |
|
|

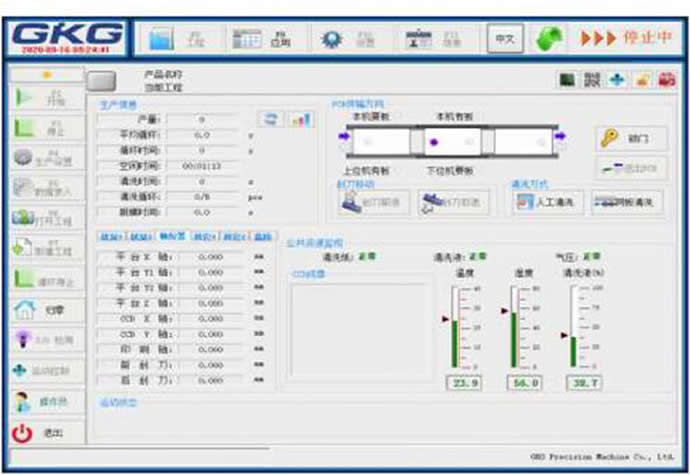

Ultimate experience ● The brand-new advanced UI software interface redefines the convenience and intelligence of software operations, allowing you to get an efficient and reasonable experience in the experience of manufacturing process and line change. When the equipment enters the production state, the advanced UI integrates all necessary The information, open to the output interface, allows you to see the SOP information of the equipment at a glance only by visually reading the status, and the easy-to-understand and easyto-operate Chinese and English system is equipped with a global service system, so that the equipment is easy to use. Without boundaries. |
|
|

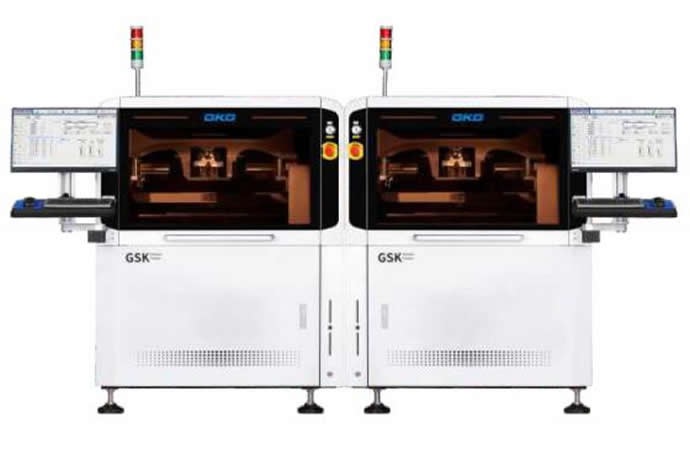

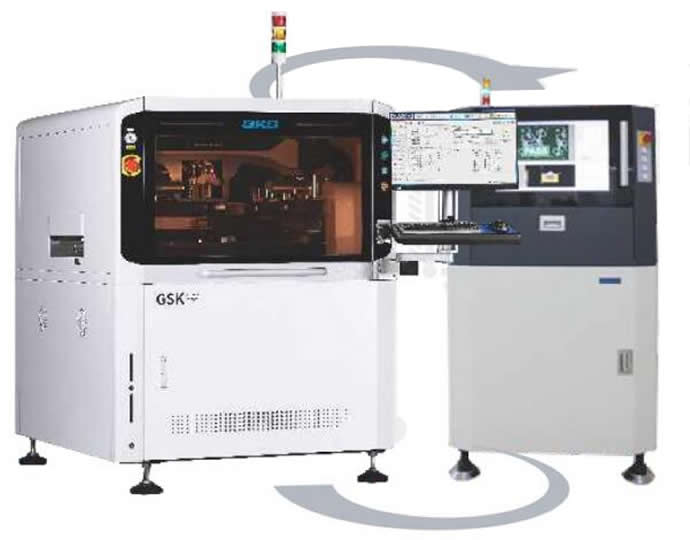

Capacity output ● The greater the output of highquality production capacity, the higher the profit a company can obtain. With this as a guide, with the capability of interconnection of everything-private customization, GSK-BTB infinite compatibility: two into one and one into two Flexible application, at the same time, the GSK-HTH mode formed by the software expansion of the single-to-single mode can help customers use this mode to achieve the demand for increasing production capacity when the online body space is insufficient. On the other hand, it is like the V8 with the "track mode" turned on, and with BTB & HTH, there is no pressure for you in the high-efficiency and high-quality delivery. |
|
|

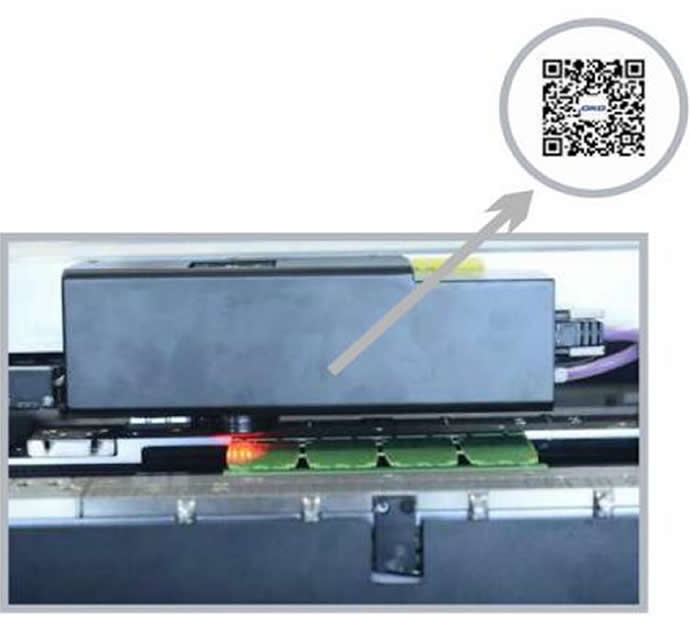

Traceability System ● The newly upgraded optical system not only maintains good mark recognition ability, but also perfectly adapts to the traceability requirements required by the current intelligent line, maximizing the utilization rate of the equipment, and allowing you to get the best experience with the minimum investment. |
|
|
Private order ● According to your needs, the standard version of Industry 4.0 with a "private customized" experience can enable you to obtain the ultimate experience for equipment process parameters, personnel debugging information, material monitoring and information capture, and truly realize the output link The ability of real-time control and full traceability of produced data will spare no effort for you to realize the needs of industrial intelligence. |
|

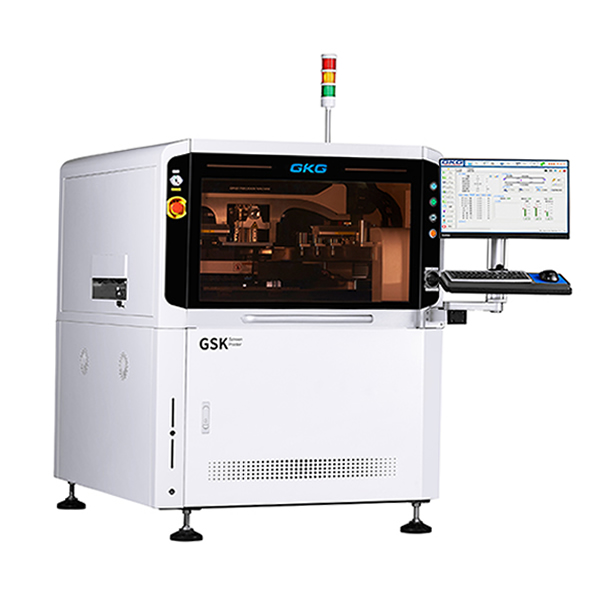

Full Automatic Solder Paste Printing Machine GSK Specification: |
|
|
Model |
GSK |
|
Machine Performance |
|
|
Repeat Position Accuracy: |
±12.5um@6o, CPK>2.0 |
|
PrintAccuracy: |
±22um@6o, CPK>2.0 |
|
NCP-CT: |
7s |
|
HCP-CT: |
18s/pcs |
|
Process CT: |
4min |
|
Change over CT: |
2min |
|
Substrate processing parameter |
|
|
Maximum board size: |
400*340mm Expandable: 530*340mm (option) |
|
Minimum board size: |
50*50mm |
|
Board thickness: |
0.4~6mm |
|
Camera Mechanical range: |
528*340mm |
|
Maximum board weight: |
4kg |
|
Board edge clearance: |
2.5mm |
|
Board height: |
15mm |
|
Transport speed: |
900 ± 40mm |
|
(Max) Transport speed: |
Segmented control, 1500mm/s Max |
|
Transport direction: |
One stage |
|
Transmission direction: |
Left to right |
| Right to Left | |
| In and out the same | |
|
Support System: |
Magnetic Pin |
| Support Block | |
| Manual Up-down table | |
|
Board clamp: |
Manual the top clamping |
| Side clamping | |
|
Printing Parameters |
|
|
Print Speed: |
10~200mm/sec |
|
Print Pressure: |
0.5~10Kg |
|
Print Mode: |
One/Twice |
|
Queegee Type: |
Rubber/Squeegee Blade (angle 45/55/60) |
|
Snap-off: |
0-20mm |
|
Snap-Speed: |
0-20mm/sec |
|
The template frame size: |
470*370mm~737*737mm (thickness：20-40mm) |
|
Steel mesh positioning mode: |
Automatic Y orientation |
|
Cleaning Parameters |
|
|
Cleaning System: |
Dry, Wet Vacuum three modes |
|
High speed cleaning: |
Integrated & weave cleaning |
|
Cleaning system: |
Side spray type |
|
Cleaning stroke: |
Automatic generation |
|
Cleaning position: |
Post cleaning |
|
Cleaning Speed: |
10-200mm/sec |
|
Cleaning fluid consumption: |
Auto & Manually adjustable |
|
Cleaning paper consumption: |
Auto & Manually adjustable |
|
Vision Parameters |
|
|
CCD FOV: |
10*8mm |
|
Camera type: |
130 Thousand CCD Digital camera |
|
Camera System: |
Lock up/down optics structure |
|
Camera Cycle time: |
150ms |
|
Fiducial mark types: |
Standard Fiducial Mark Shape |
| round、square、diamonds cross | |
| Pad and profile | |
|
Mark size: |
0.3-6mm |
|
Mark number: |
Max: 4pcs |
|
Stay away number: |
Max: Ipcs |
|
Machine parameter |
|
|
Power Source: |
AC:220 ±10%, 50/60HZ 2.2KW |
|
Air Pressure: |
4-6Kgf/cm2 |
|
Air Consumption: |
5L/min |
|
Operating Temperature: |
-20℃~+45℃ |
|
Working environment humidity: |
30%~60% |
|

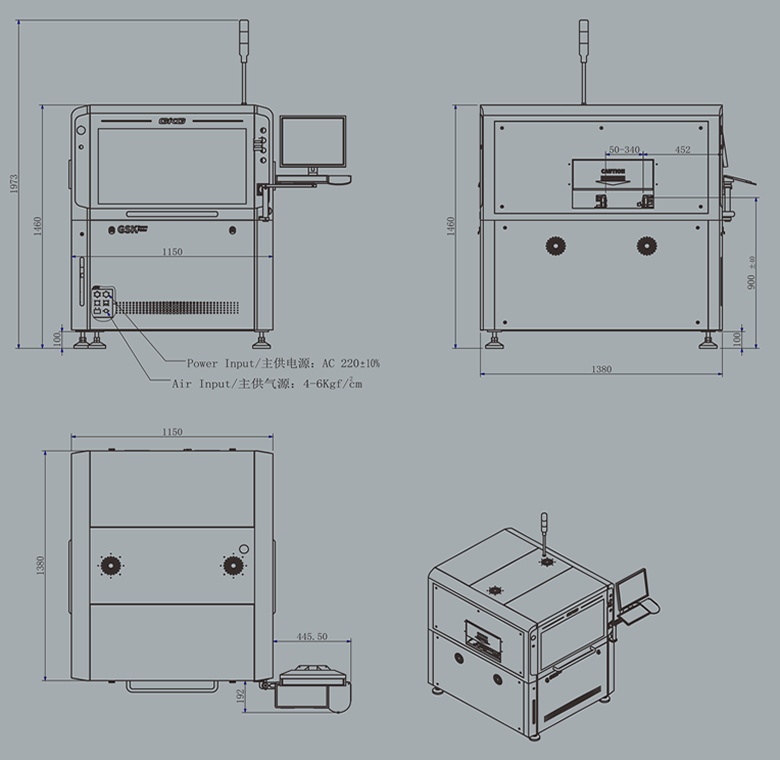

Machine dimension (without Tower light): |
1460mm |
|
Machine Length: |
1150mm |
|
Machine Width: |
1380mm |
|
Machine Weight Approx: |
Approx: 900Kg |
|
Equipment load bearing requirements: |
650Kg/㎡ |
