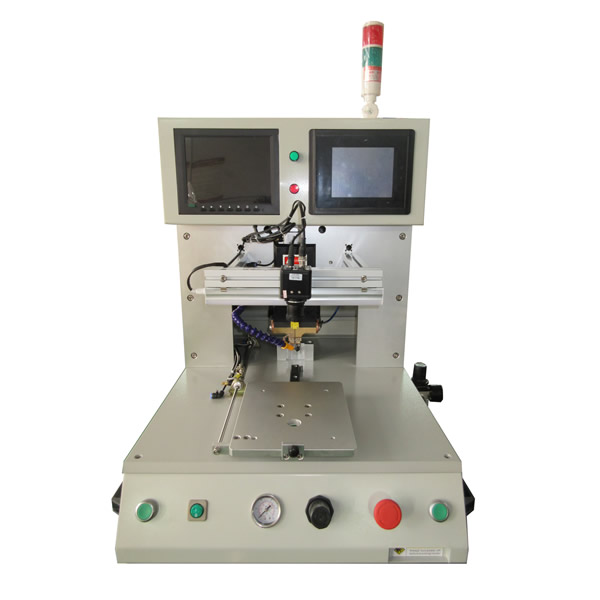

HBS-A3 Hot Bar Soldering Machine use thermode technology that based on repid reflow by pluse heating to effectively solder flexible board on the PCB. Real time display on the touch screen. CCD+displayer can accurate positioning and soldering quality check.
|
Hot Bar Soldering Machine HBS-A3 specification : |
|
|
Model |
HBS-A3 |
|
Y-axis movement mode |
cylinder |
|
Way of starting |
Start button |
|
Soldering head size |
MAX 60*5mm(Or customized) |
|
Minimum soldering pitch |
0.2mm |
|
power |
AC220V±10% 50HZ,2300W |
|
Soldering time |
1~99.9s adjustable |
|
Work pressure |
0.45-0.70Mpa |
|
Temperature setting |
RT ~ 500 ± 5 DEG C |
|
Machine weight |
75kg |
|
Soldering pressure |
1~20kg |
|
Work size |
Max 200*170mm |
|
Work environment |
10-60℃ |
|
Machine Size |
660*660*700mm |

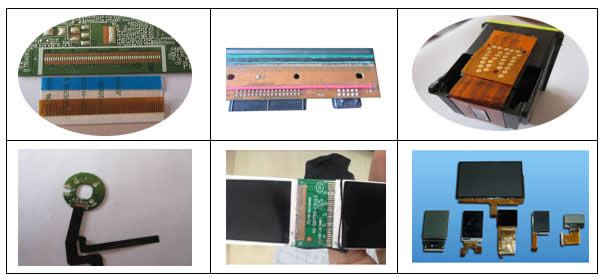

| Hot Bar Soldering Machine HBS-A3 Application : |
|
Advantages: ultra-fine spacing welding can be achieved; Digital temperature display; Soldering speed 3-5s |
|
Suitable for： |
|
1.FPC-PCB soldering |
|
2.FPC-FPC soldering |
|
3.FPC- ceramic wafer soldering |
|
4.FPC- ink cartridge plus chip soldering |
| Application |
|
|
Hot Bar Soldering Machine HBS-A3 Configuration: |
|
1. Magnetic cylinder sensor switch : SMC |
|
2. Solenoid valve: made in Taiwan |
|
3. Connectors and trachea: made in Taiwan |
|
4. Filter regulator: made in Taiwan |
|
5. Precision cylinder under pressure regulator : SMC |
|
6. Control system: independent research and development ( Chinese ) |
|
7. Power transformer: 220V, 2000W |
|
8. Driver module: 45A |
|
9. Vacuum Generators : SMC |
|
10. Button switch: Schneider |
|
11. Relay: Omron |
|
12. Chassis components: aluminum plus bending parts |
|
13. Body color: gray |
|
Hot Bar Soldering Machine HBS-A3 Standard configuration : |
|
● Hot Bar Soldering Machine |
|
● Start button*1pcs |
|
● CCD+display*1set |
|
● Touch screen programming interface*1set |
|
● Air pipe*1pcs |
|
● 1 year parts warranty |
|
Hot Bar Soldering Machine HBS-A3 Optional configuration : |
|
● Customized precision fixture. |
|
● Customized Soldering tip |
|
● Start button |
|
● Emergency Stop button |
|
● Power switch button |
