HBS-A4 Hot Bar Soldering Machine use thermode technology that based on repid reflow by pluse heating to effectively solder flexible board on the PCB. Real time display on the touch screen.Can option CCD+displayer can accurate positioning and soldering quality check. It is an economical high-cost ratio hot bar soldering machine
|
Hot Bar Soldering Machine HBS-A4 Features: |
|
1. The heating rate is customized to meet different products. |
|
2. Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life. |
|
3. The level of soldering head is adjustable, to ensure uniform part assembly processing. |
|
4. Digital display to control temperature, easy and clear. |
|
5. With digital pressure meter, can be preset pressure range. |
|
6. Special welding materials. |
|
7. It is equipped with precise PID control, phase Angle instead of pulse drive. |
|
8. Little vibration, low noise, no voltage fluctuation. |
|
9. Molybdenum alloy soldering head instead of traditional titanium alloy, warmming faster, good coefficient of heat transfer, wear-resisting. |
|
Hot Bar Soldering Machine HBS-A4 specification : |
|
|
Model |
HBS-A4 |
|
Y-axis movement mode |
cylinder |
|
Way of starting |
Start button |
|
Soldering head size |
MAX 60*5mm(Or customized) |
|
Minimum soldering pitch |
0.2mm |
|
power |
AC220V±10% 50HZ,2300W |
|
Soldering time |
1~99.9s adjustable |
|
Work pressure |
0.45-0.70Mpa |
|
Temperature setting |
RT ~ 500 ± 5 DEG C |
|
Machine weight |
75kg |
|
Soldering pressure |
1~20kg |
|
Work size |
Max 150*150mm |
|
Work environment |
10-60℃ |
|
Machine Size |
460*480*560mm |
| Hot Bar Soldering Machine HBS-A4 Application : |
|
Advantages:ultra-fine spacing welding can be achieved; Digital temperature display; Soldering speed 3-5s |
|
Suitable for： |
|
1. FPC-PCB soldering |
|
2. FPC-FPC soldering |
|
3. FPC- ceramic wafer soldering |
|
4. FPC- ink cartridge plus chip soldering |

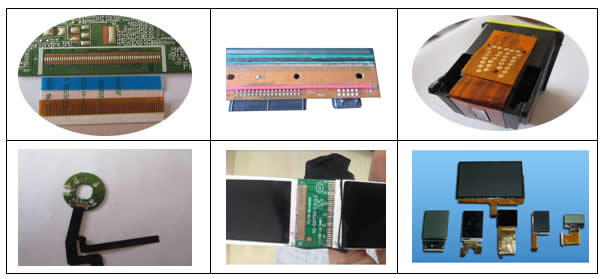

| Application |
|
|
Hot Bar Soldering Machine HBS-A4 Configuration: |
|
1. Magnetic cylinder sensor switch : SMC |
|
2. Solenoid valve : made in Taiwan |
|
3. Connectors and trachea : made in Taiwan |
|
4. Filter regulator : made in Taiwan |
|
5. Precision cylinder under pressure regulator : SMC regulator : SMC |
|
6. Control system: independent research and development ( Chinese ) |
|
7. Power transformer : 220V, 2000W |
|
8. Driver module : 45A |
|
9. Vacuum Generators : SMC |
|
10. Button switch: Schneider |
|
11. Relay: Omron |
|
12. Chassis components: aluminum plus bending parts |
|
13. Body color：gray |
|
Hot Bar Soldering Machine HBS-A4 Standard configuration : |
|
● Hot Bar Soldering Machine |
|
● Start button*1pcs |
|
● Air pipe*1pcs |
|
● 1 year parts warranty |
|
Hot Bar Soldering Machine HBS-A4 Optional configuration : |
|
● Customized precision fixture. |
|
● Customized Soldering tip |
|
● CCD+display *1set |
|
● Start button |
|
● Emergency Stop button |
|
● Power switch button |
