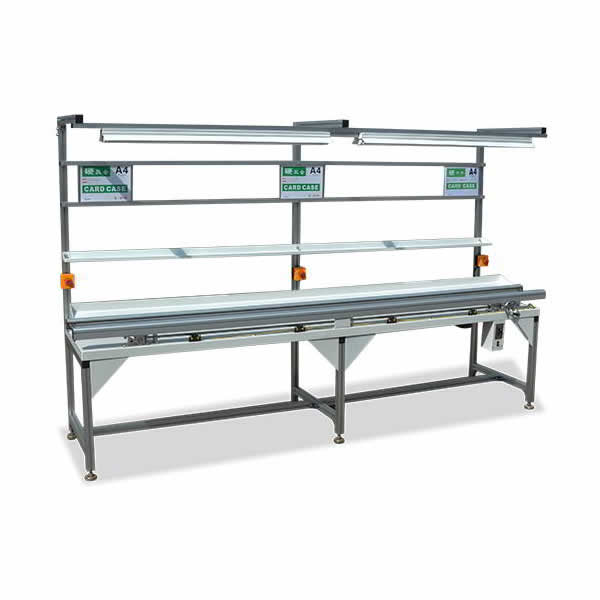

Insertion conveyor MI-3000
The Insertion conveyor adopt quality motor with speed controller, guide rail with pin chain and driving mechanism, runs smooth and low noise, equipped with component box,LED light, it is very suitable for through hole assembly line.
Available Options
|
Insertion conveyor MI-3000 Features: |
|
1. 3000mm Aluminum conveying guide rail. |
|
2. 40 x 40 mm aluminium profile ,thickness :1.5mm. |
|
3. 35B pin chain(5mm). |
|
4. Equipped with LED light *2 pcs. |
|
5. Equipped with quality 60W conveying motor with speed controller, runs smooth and low noise. |
|
6. Equipped with 2 component box. |
|
7. Equipped with process card bracket. |
|
8. ESD ground socket. |
|
Insertion conveyor MI-3000 Specification： |
|
|
Model |
MI-3000 |
|
Conveying width |
Max 400mm |
|
Conveying height |
750±30mm |
|
Conveying direction |
Left to right |
|
Conveying speed |
0-5M/min |
|
Power supply |
1P 220V50/60HZ |
|
Overall dimension |
L=3000mm W=750mm H=1900mm |
|
Power |
150W |
|
Insertion conveyor MI-3000 Option: |
|
1.Manual stop switch button |
|
2.Stopping cylinder with foot pedal *3 set |
