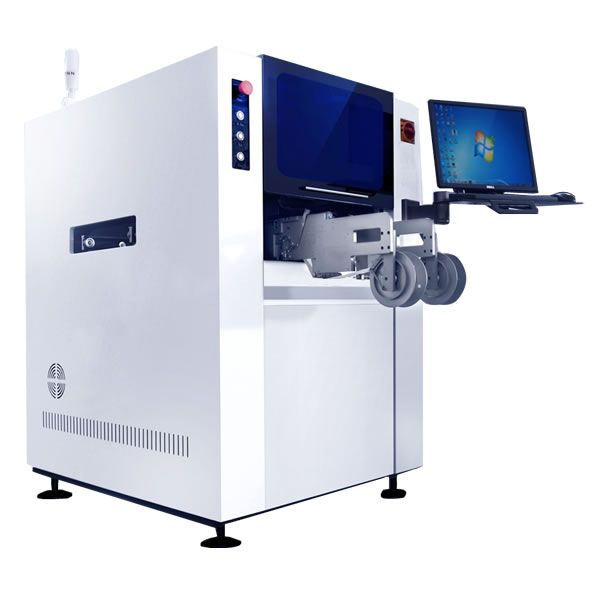

Automatic Labeling Machine LAB-400S

Inline labeling system, conveyor with standard SMEMA connector.

	● High rigidity welding frame to ensure high speed and stable operation.

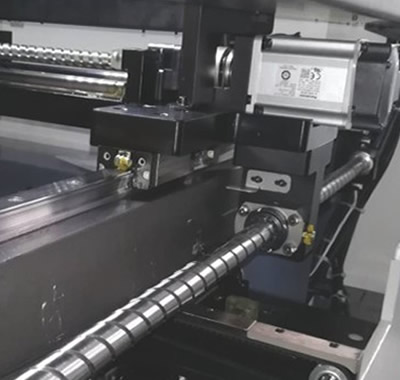

	● X/Y axis driven by servo motor with THK guide rail, repeatability can reach ±0.01mm. ● Labeling accuracy: ±0.1mm.

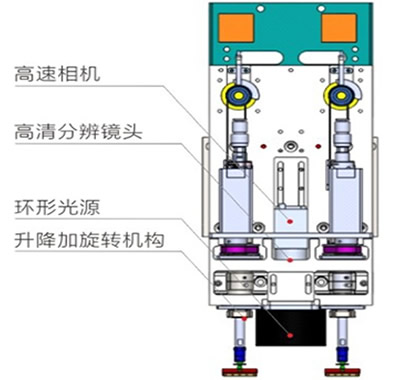

	● 2 Lableing head with rotation mechanism. ● Top camera to recognize fiducail and correct offset.

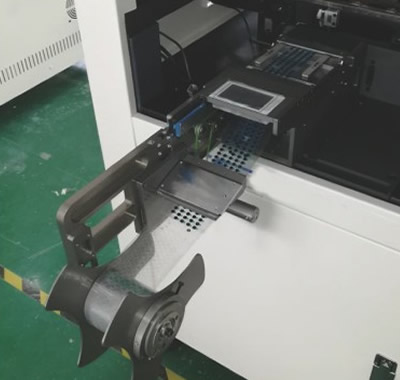

	● High precision electronic feeder for various label with precise label stripping and feeding.

Automatic Labeling Machine LAB-400S Features:

● Inline labeling system, conveyor with standard SMEMA connector.

● Max Product size : 400mm x 400mm.

● X/Y axis driven by servo motor.

● Top CCD for Fiducial recognition.

● Bottom CCD to correct lable position.

● 2 Labeling head.

● Industrial PC ,full English interface with Windows 7 OS.

Automatic Labeling Machine LAB-400S specification:
Model	LAB-400S
Overall Dimension	LWH	Approx 90012001500cm
	Weight	around 800kg
PCB Parameter	PCB size	Min:60mm60mmMax:400mm400mm
	PCB thickness	0.5-3.0mm
Operation System	OS	Windows 7
Vision System	Top CCD	Fiducial recognition
	Bottom CCD*1set	Correct X/Y/R labeling offset
Labeling accuracy	±0.1 mm
Labeling speed	approx 3000 CPH
Lable size	L5mmW5mm-L60mmW30mm
Labeling head	Double labeling head
Conveyor	Auto width adjustment
	SMEMA connector
	Conveying height: 900mm±20mm, Conveying direction: L to R, or R to L
Feeder Quantity	Standard 1 set
Power supply	1P, 220V, 50/60Hz
Air pressure	0.6Mpa
Power	Max 2 KW
