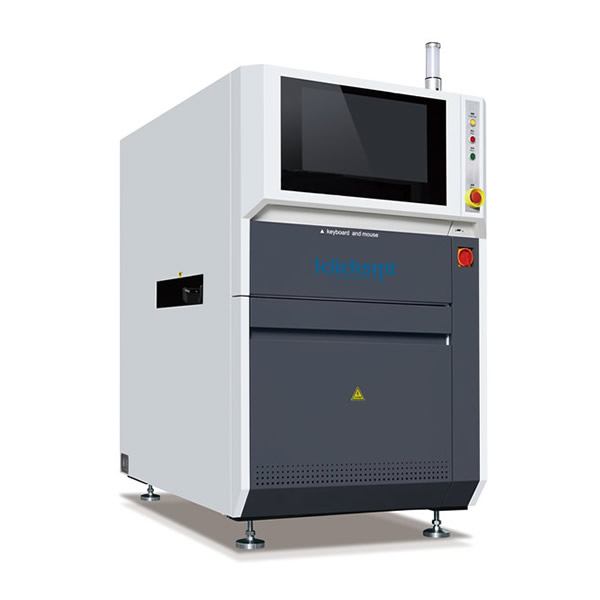

Laser Marking System LM450 series
LM450 series is a fully automatic laser marking machine for marking 1D code, QR code, text, symbol or graphic on the surface of PCB. It consists of laser marking system, XY precision motion platform, CCD visual system for PCB positioning, conveyor with automatic width adjustment and camera online barcode reading system. CO2 laser system/UV laser/Fiber laser is selectable for different application.
Available Options
|
Laser Marking System LM450 series Description : |
|
1. Laser Marking System LM450 series with compact size, can be easliy intergrated into production line help you realize automation. |
|
2. LM450 series can mount virous high quality laser head for different application, such as USA SYNRAD CO2 laser head, INNO UV /Green laser head, Raycus fiber laser head. |
|
3. Capable to print 1D barcode, 2D Data matrix barcode, 2D QR code etc. |
|
4. X/Y axis adopt servo motor control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system. |
|
5. CCD +fiducial recognition system automatically correct the offset of PCB position. |
|
6. Standard equipped with fume extrator ensures a clean environment. |
|
7. CCD barcode reader check the printed barcode to avoid defective barcode printed going to next process. |
|
8. Optional built in PCB flipping system realize automatic PCB flipping and double side marking. |
|
9. LM450-C is capable to connect with customer MES system. |
|
10. Industrial PC, full English interface with Windows 7 OS, professional software, easy to operate. |
|
Laser Marking System LM450-C CO2 laser head Features: |
|
|

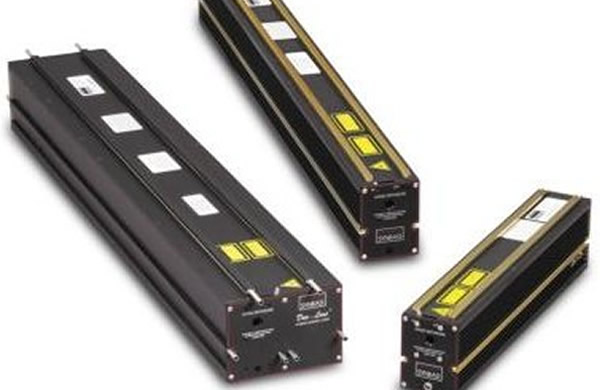

● Laser head：Synrad’ s 48-series Rugged & reliable. ● Wave length : 10640nm
● More than 50,000 applications worldwide |
|

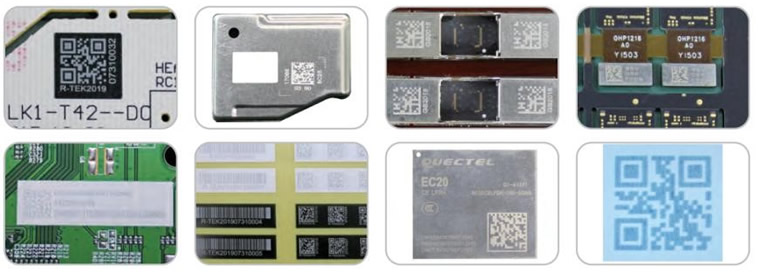

● Frequently used bar code format |
|
|
Laser Marking System LM450-C Features: |
|
|

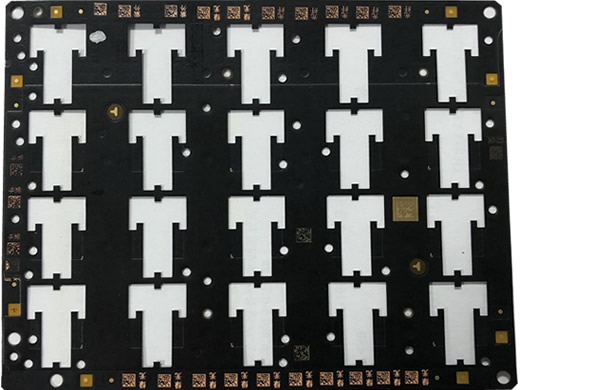

Mark Sample with CO2 laser head : |
|
|
|
|

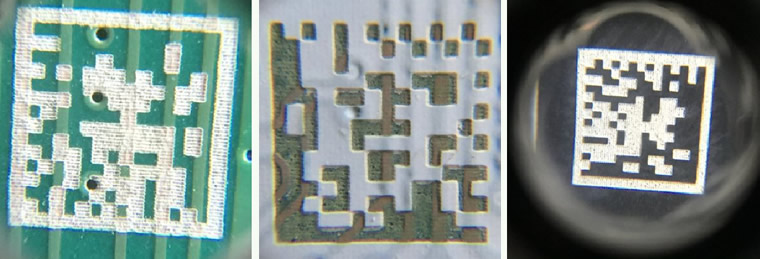

Mark Sample with CO2 laser head (under 60times microscope) |
|
|
|
|
Laser Marking System LM450-U UV laser head Features: |
|
|
● Laser head：INNO laser ● model : FOTIA-355 ● Wave length : 355 nm
● More than 50,000 applications worldwide |
|
● UV laser application: |
|
|
Laser Marking System LM450-G Green laser head Features: |
|
|
● Laser head: INNO laser, ● model: FOTIA-532 ● Wave length: 532 nm
● More than 50,000 applications worldwide |
|
● Suitable application: certain plastics, silicon and reflective metals material. |
|
|

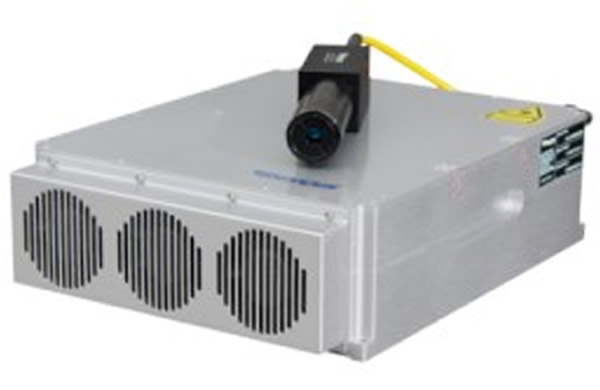

Laser Marking System LM450-G Fiber laser head Features: |
|
|
● Laser head: Raycus laser ● model: RFL-P20QEr ● Wave length: 1060 nm
● More than 50,000 applications worldwide |
|

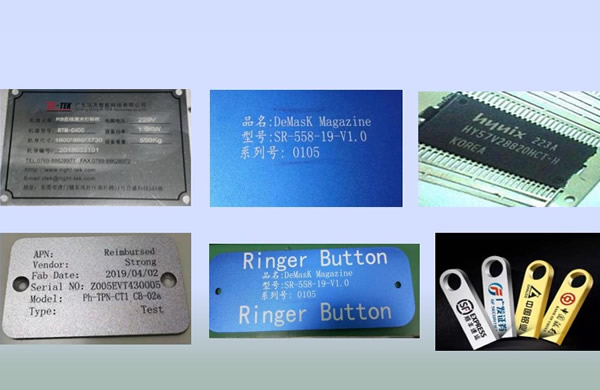

● Suitable application: electronic components, hardware accessories, screen cover etc. |
|
|

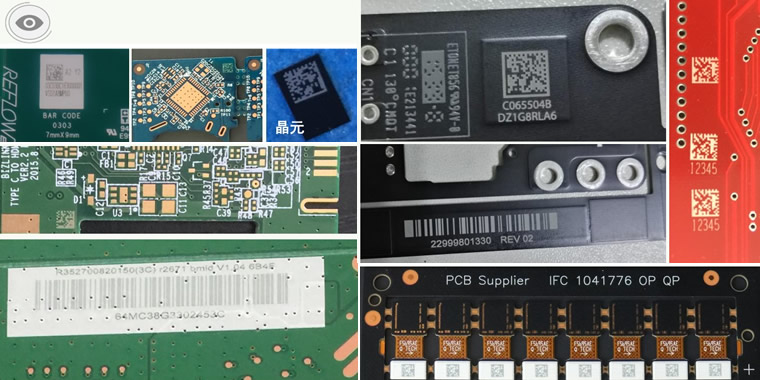

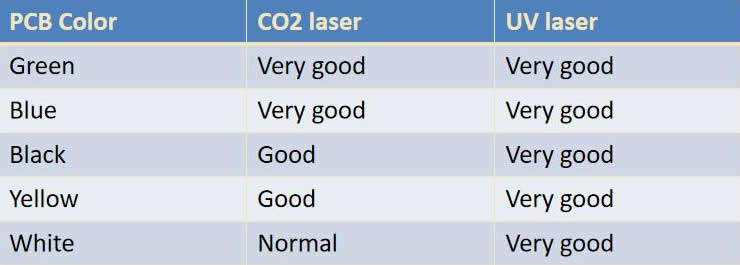

PCB Laser Marking Application comparison: |
|
|
|
|

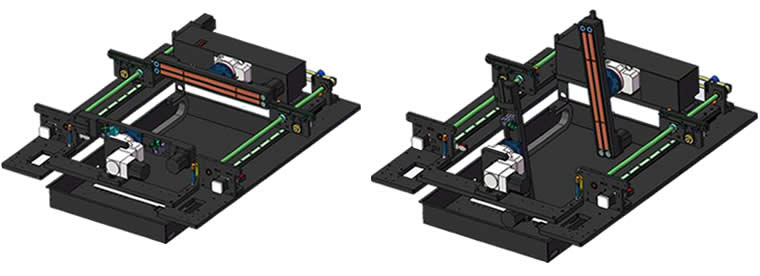

Laser Marking System LM450 series Flipping system: |
|
|
Optional built in PCB flipping system easily realize automatic PCB flipping and double side marking. |
|
|
|
|
Laser Marking System LM450 series Features: |
|
|

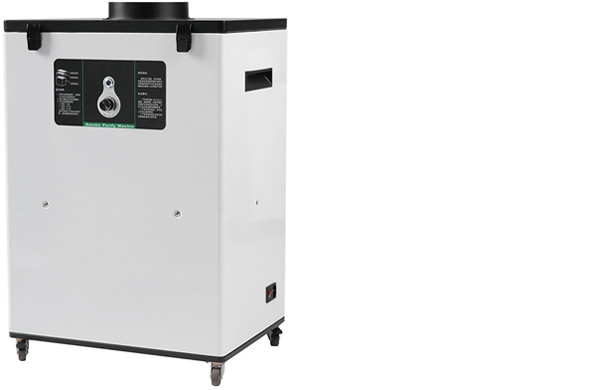

● Standard equipped with fume extrator ensures a clean environment. |
|
Laser Marking System LM-450 Specification : |
||||
|
Model |
LM450-C |
LM450-U |
LM450-G |
LM450-F |
|
Laser type |
CO2 laser |
UV laser |
Green laser |
Fiber laser |
|
Laser wave length |
10640 nm |
355 nm |
532nm |
1060nm |
|
Laser head |
USA made Synrad laser system |
China made INNO UV laser |
China made INNO green laser |
China made Raycus fiber laser |
|
Laser power |
Standard 10W/Optional 30W |
5W |
10W |
20W |
|
varifocal range |
2D laser |
|||
|
Working method |
laser moving |
X/Y platform moving |
X/Y platform moving |
laser moving |
|
Laser cooling |
Forced air cooling |
Water cooling |
Water cooling |
Forced air cooling |
|
2D barcode marking |
2mm*2mm |
1.5 mm*1.5 mm |
1.5 mm*1.5 mm |
2mm*2mm |
|
Laser marking range |
55*55mm |
|||
|
Repeatable positioning accuracy |
±0.025mm |
|||
|
Positioning system |
CCD+mark recognition |
|||
|
Max PCB Size |
Standard with L450*W450mm Option with PCB flipping system 450*450mm |
|||
|
PCB Thickness |
0.5—3mm |
|||
|
PCB Height |
UP:35mm DOWN:15mm |
|||
|
PCB Clamping system |
Standard configuration |
|||
|
Conveying System |
900+-20mm, left-right |
|||
|
Marking object |
characters, 1D, 2D barcode, drawing data. |
|||
|
Power supply |
1P, AC 220V, 50/60HZ |
|||
|
Power |
1.5KW |
|||
|
Machine size |
Machine size Standard:W900*D1480*H1650mm, W900*D1760*H1650mm with built in flipper |
Standard:W900*D1530*H1650mm | Standard:W900*D1530*H1650mm | Standard:W900*D1555*H1650mm |
|
Machine weight |
Approx standard:650KG, 800KG with flipper |
Approx standard:650KG | Approx standard:650KG | Approx standard:650KG |
|
Laser Marking System LM450 series configuration: |
|
Standard configuration: |
|
● Laser marking system with X/Y servo motor and ball screw. |
|
● Industrial PC, monitor, Keyboard, mouse. |
|
● CO2 laser system or UV laser , or Fiber laser. |
|
● CCD with Fiducial mark recognition function. |
|
● CCD barcode reading system. |
|
● Fume extractor |
|
● Automatic conveyor width adjustment. |
|
● 1 year warranty. |
|
|
|
Optional configuration: |
|
● Automatic PCB Flipping system. |
|
● Connection with MES. |
|
● Additional bar code reading camera. |
| ● Optional 30W CO2 laser head. |
