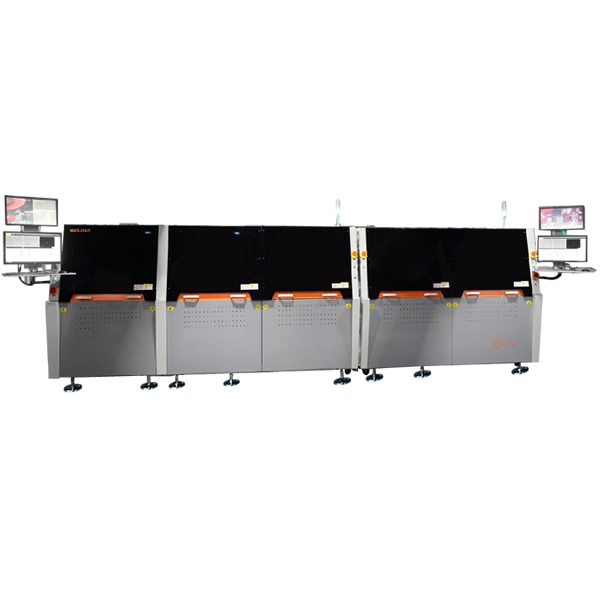

MAS-i24/1 4 pots selective soldering

MAS-i24/1 is the machine designed for below products:
1. High output requirement! Machine designed with single lane conveyor (Max W508xL508mm), 4 individual solder pot, can solder for 4 boards at same time.
2. Heavy load board! Max 20kg load for each conveyor.
3. High flexibility! 4 solder pots with individual Z axis, can equip with 4 different size nozzle. Each nozzle can cover 508x508mm soldering area.

Available Options

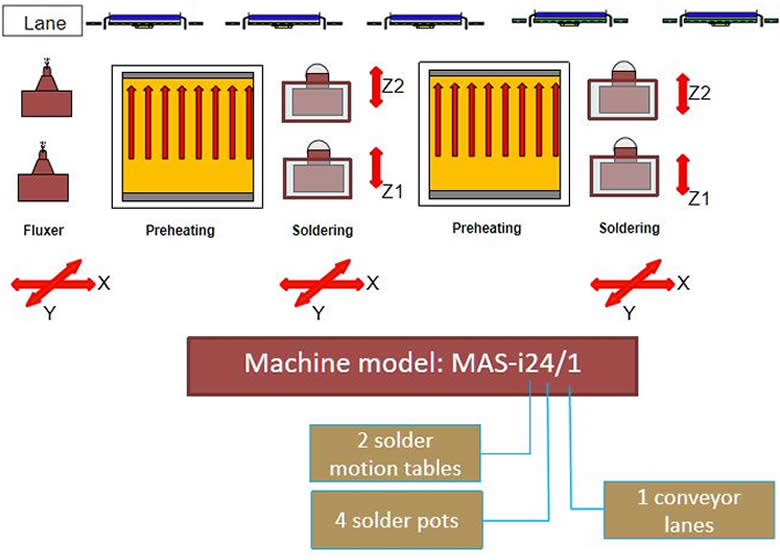

MAS-i24/1 Machine layout

MAS-i24/1 General Explanation

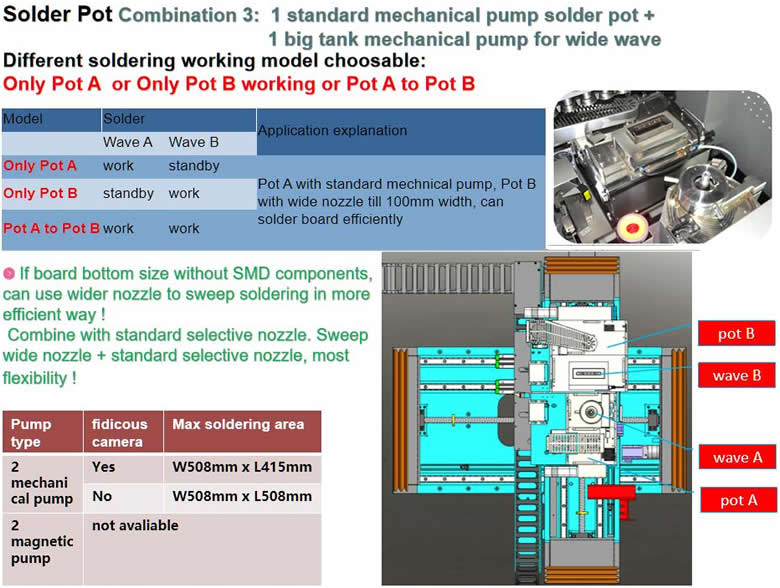

General Explanation: Soldering section

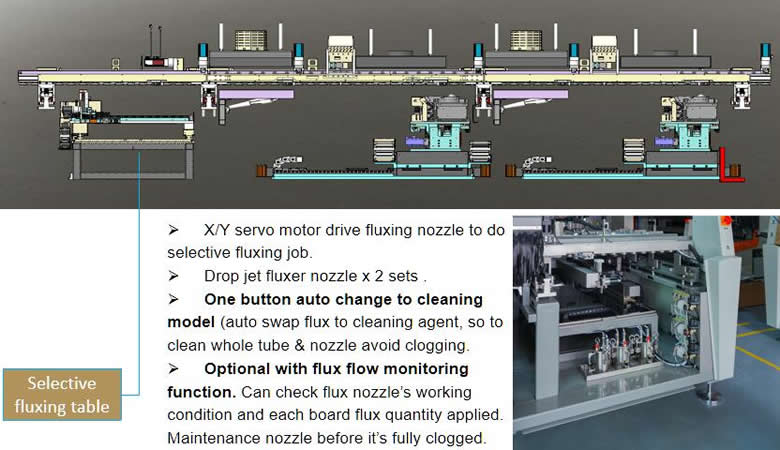

MAS-i24/1 General Explanation: Combination of machine--selective fluxing table

MAS-i24/1 General Explanation: Combination of machine--Preheating section

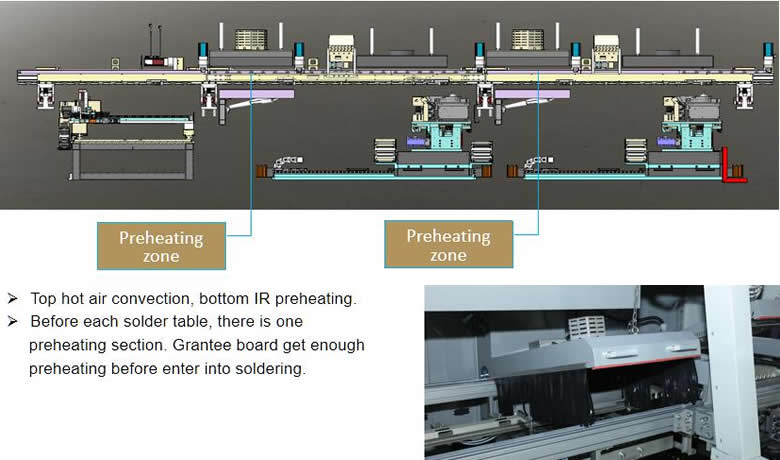

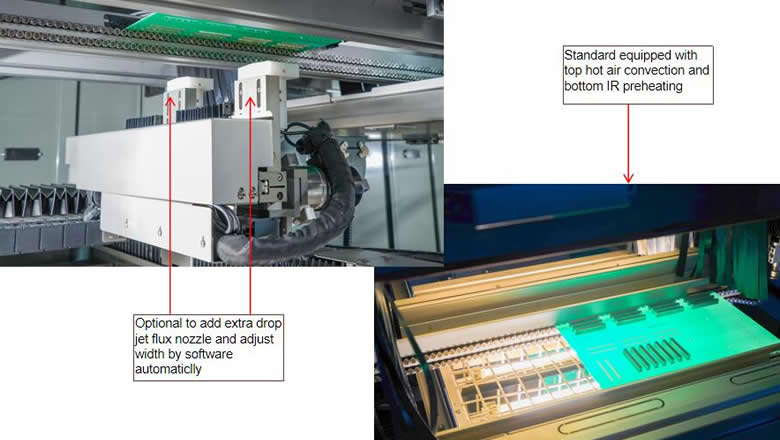

MAS-i24/1 Hardware--Fluxing & preheating

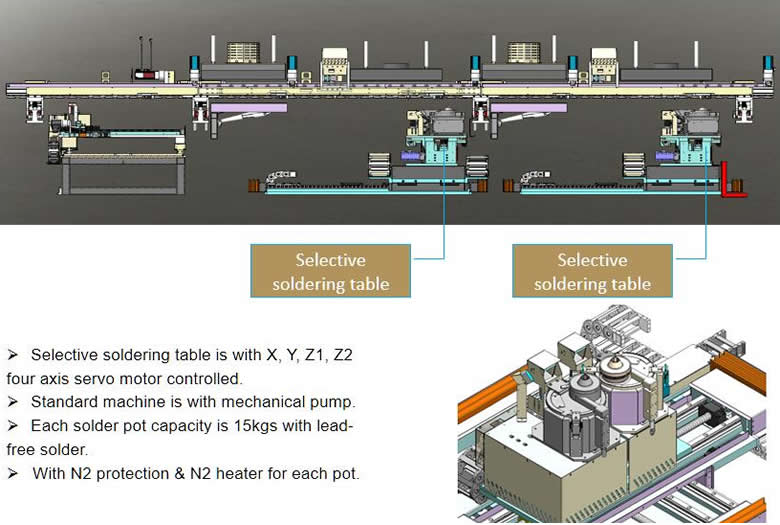

MAS-i24/1 General Explanation: Combination of machine--Selective soldering table

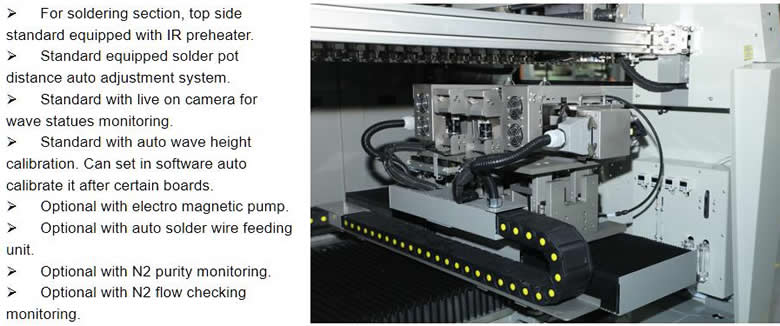

MAS/i24-1 Hardware--Soldering

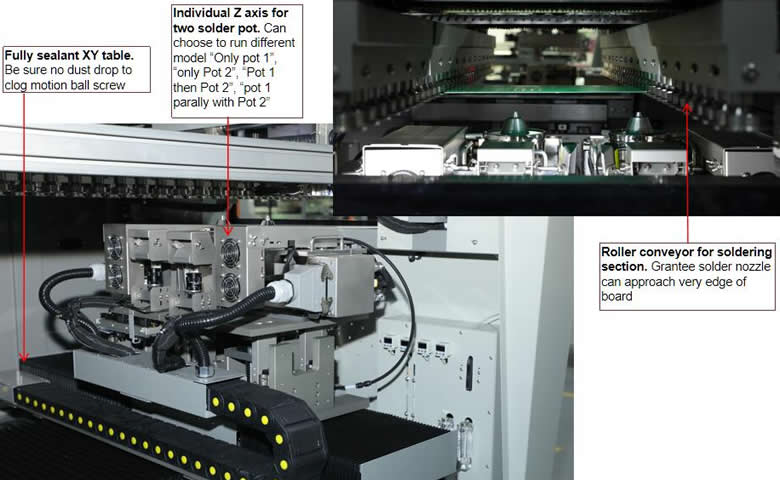

MAS-i24/1 Hardware

MAS-i24/1 Specifications
Item	MAS-i24/1
General
Operating power/Max power	12KW/36KW

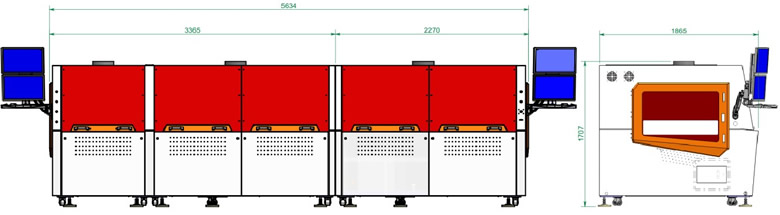

Machine dimension	5650(L)1865(W)1720(H)
Net weight	2500KG
Power supply	3PH 380V 50HZ
Air supply	3-5 bars
Exhausting required	600M3/h x 2 ports
PC	Yes
Typical Program Time	10 Minutes
Conveyor section x 5 sets
Conveyor lane	Single Lane
MAX PCB (single lane model)	See “Soldering section” explanation
PCB top clearance	120mm
PCB bottom clearance	35mm
Max PCB weight	20kgs
Selective fluxing table x 1 sets

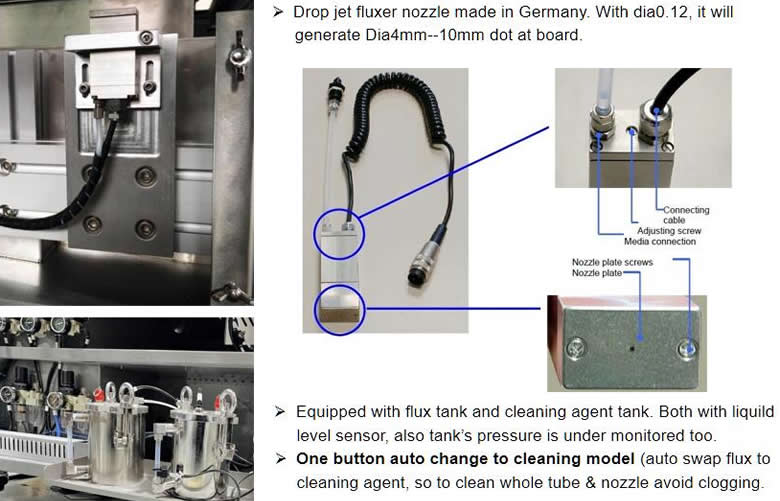

Flux Nozzle Type	drop jet fluxer made in Germany
Flux Nozzle Quantity	Standard equip 2 set
Flux Tank Capacity	1L
Flux Tank Quantity	2pcs
Flux Nozzle Distance	width adjustable by software
Axes of Motion	X, Y Servo motor
Position Accuracy	+ / - 0.05mm
Preheat section x 2 sets
Preheating method	Top hot air, bottom IR
Temperature range	25--250℃ degree
Selective soldering table x 2 sets

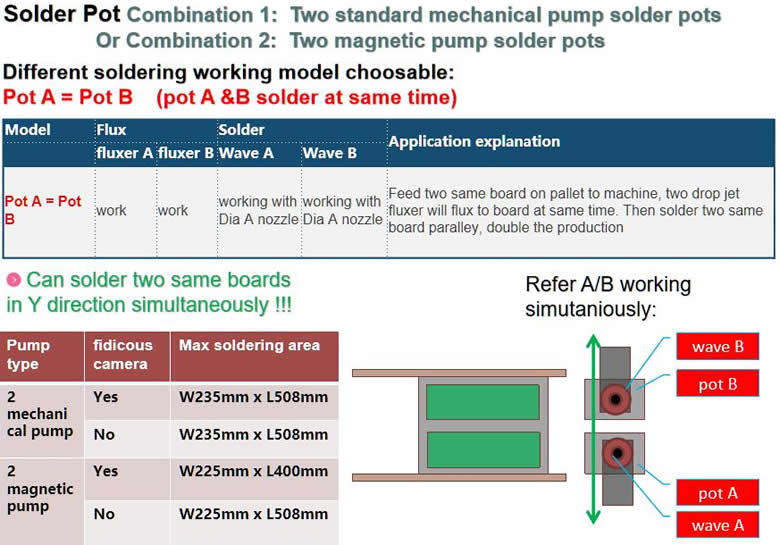

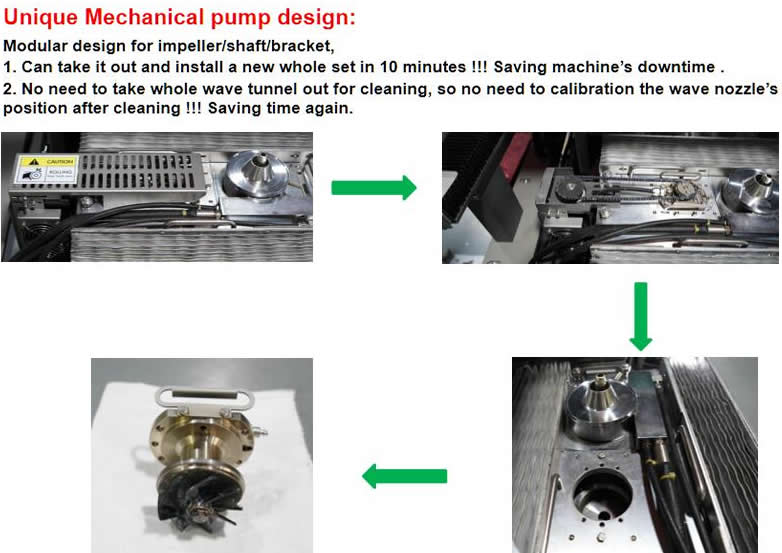

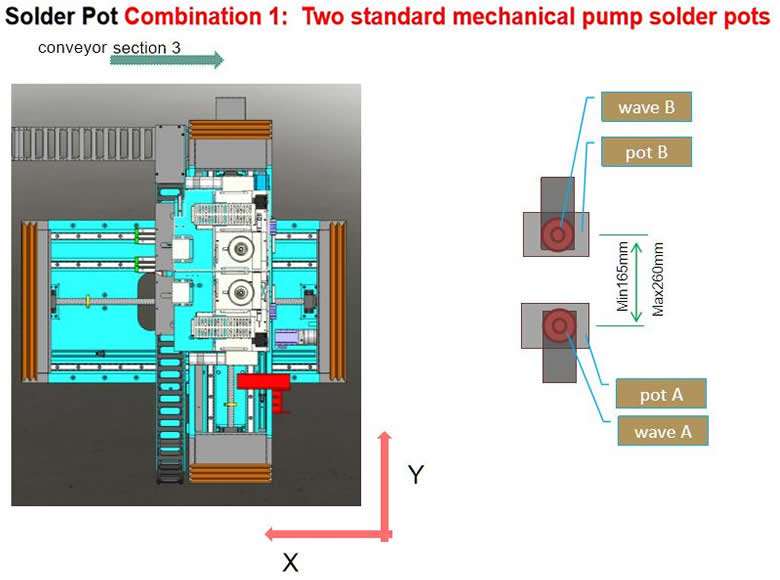

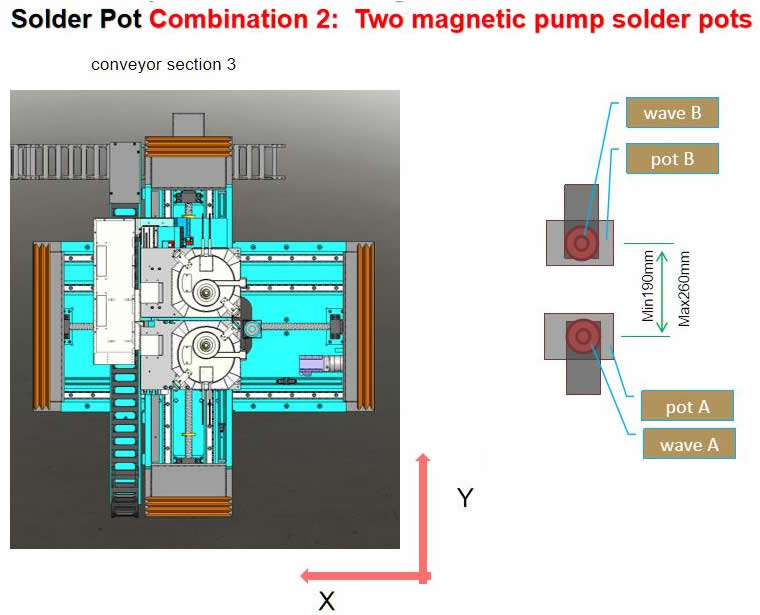

Solder pot type	Standard equipped mechanical pump Optional with magnetic pump
Solder pot quantity	2 individual sets
Solder Pot Capacity	15kgs / pot x 2pots
Solder Pot distance	Software adjustment
Solder level alarm	standard equipped
Mini Wave Nozzles	Dia 4,6,8,10,12MM
Customized nozzle	Available
Motion Control	All servo control with ball screw
Position Accuracy	+ / - 0.05mm
Motion table	Pot A &B share X, Y table, have individual Z axis, Y distance adjutable by software
Top preheating	Standard equipped with IR top preheating
(N2) Inertion Management
N2 Consumption per Nozzle	1.5m3/H, total 6m3/H　(recommend to use SELMATE-8)
Required N2 Purity	> 99.99%

Software System

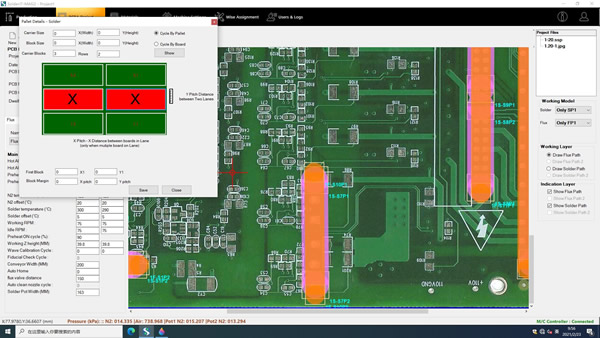

	Solder It ● “Solder It” is a Windows Professional 10 based software designed to create a solder program. It can easy POINT AND CLICK for fluxing path and soldering parameters.

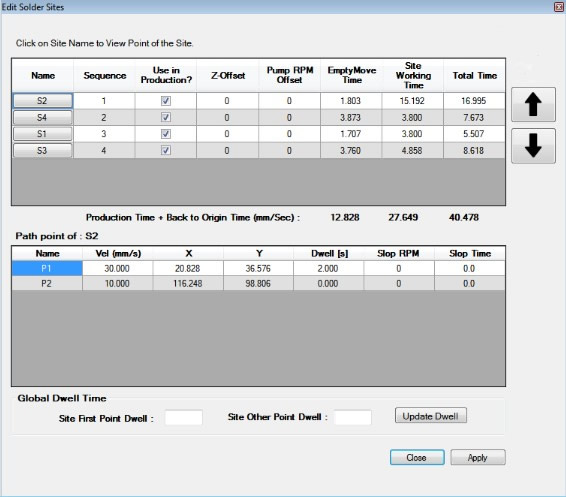

	● All motion path can be editable, include soldering speed, empty move speed, dwell time, solder Z height, wave height, wave slop speed, solder leaving angle, N2 temperature etc. Meanwhile, any factors related to good soldering result, it will be monitored, for sample all air pressure, N2 pressure, N2 purity, N2 flow rate etc.

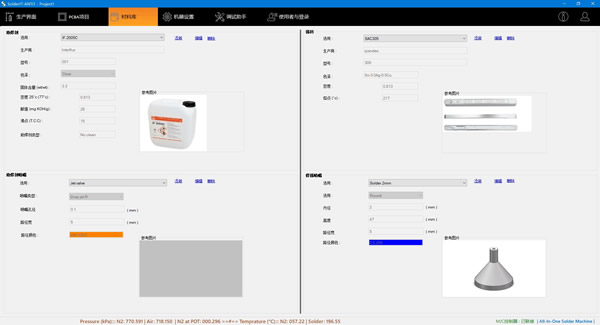

	● Date base information. Engineer can input all solder, flux, solder nozzle information to machine. When doing programming, they can add these information to programming of board. In future to produce the same board, it will be easy to get not only motion information, but also what flux/solder/nozzle was used before, easy to repeat soldering quality.

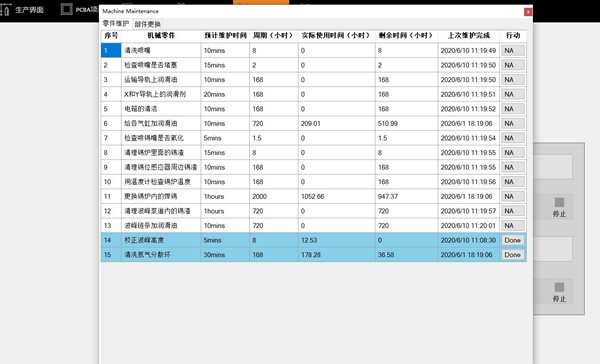

	● Pre-maintenance & consumable parts timing function. Can count down consumable parts’ life time, remind engineer to do necessary change in advance. Also, can remind for necessary maintenance of machine.

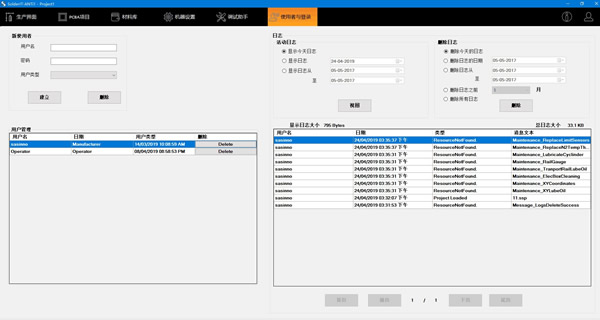

	● 3 Level logging rights and date log information records. Who use machine, when use machine, what unnormal happen on machine, all these will be recorded.
