Smart phone MMI inspection machine MMI-550
The Smart phone MMI inspection machine realize the tablet or mobile phone MMI detecting, using manipulator, simulate keystrokes and ADB, and other functions, through the actual operation simulation, can make sure to complete the function of the detecting, and adopts automatic drawer, can be convenient and automatic production line for docking.
Available Options

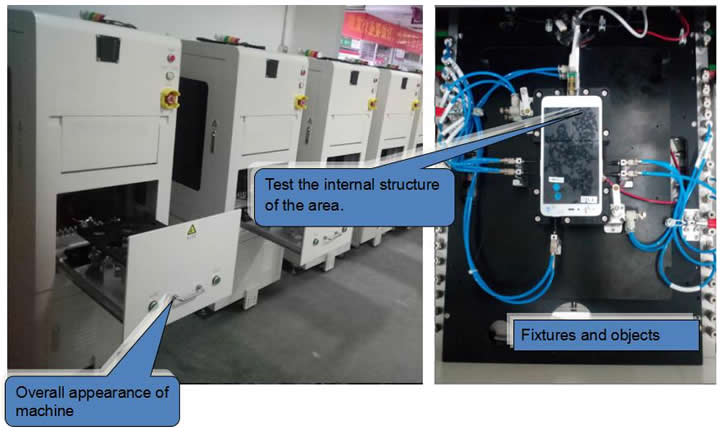

| Complete machine introduction |
|
|

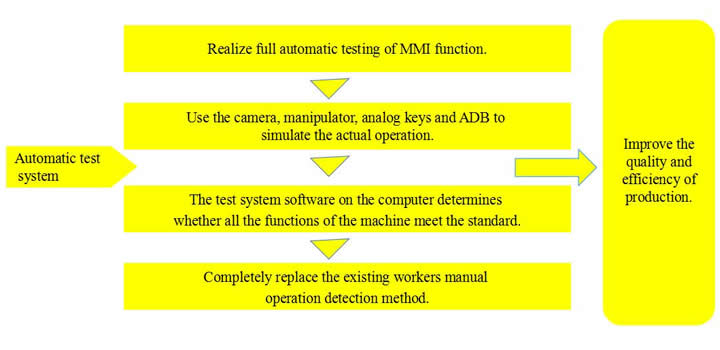

| Machine MMI inspection principle |
|
|
Smart phone MMI inspection machine MMI-550 Specification |
|||||
|
No. |
Test project |
No. |
Test project |
No. |
Test project |
|
1 |
PSN |
13 |
USB |
25 |
Fingerprint (front and back) |
|
2 |
Mobile phone/tablet information |
14 |
Charging |
26 |
Buttons (side buttons and virtual buttons) |
|
3 |
SIM card |
15 |
OTG |
27 |
Gravity sensor |
|
4 |
SD card |
16 |
Headset |
28 |
Gyro |
|
5 |
EMMC |
17 |
Headphone line control button |
29 |
Compass Sensor |
|
6 |
Memory |
18 |
Hall switch |
30 |
Range sensor |
|
7 |
RTC |
19 |
Vibration test |
31 |
Light sensor |
|
8 |
Battery |
20 |
NFC |
32 |
Distance sensor calibration |
|
9 |
WIFI |
21 |
FM |
33 |
Gravity sensor calibration |
|
10 |
Bluetooth |
22 |
Infrared remote control |
34 |
Gyro calibration |
|
11 |
GPS |
23 |
Audio circuit |
35 |
Touch screen test (including CTP self-inspection and mechanical manual marking) |
|
12 |
Breathing lamp（LED） |
24 |
Screen, keyboard backlight test. |
36 |
Sweep the qr code |
|
Equipment efficiency |
|||||
|
Comparison of quality improvement |
Cost-saving comparison | Management of ascension | |||
|
Manual detecting |
Automated detecting | Manual detecting |
Automated detecting |
Manual detecting | Automated detecting |
| Easy to misdetect the miss detect | Ensure detect consistency | 250UPH About 6-8 workers Sensor detecting4-6 workers | 4 sets of machine replace about four workers | The detect data is cluttered and it is not easy for the manager to check the detecting information | The manager can access the detecting information remotely at any time |

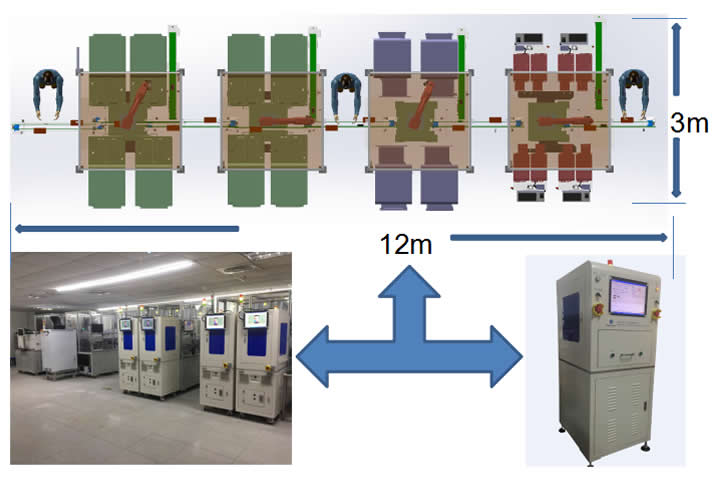

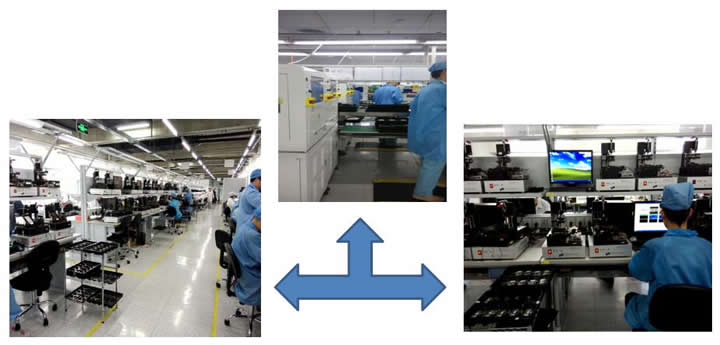

Smart phone MMI inspection machine MMI-550 Case
|
|
|
|
