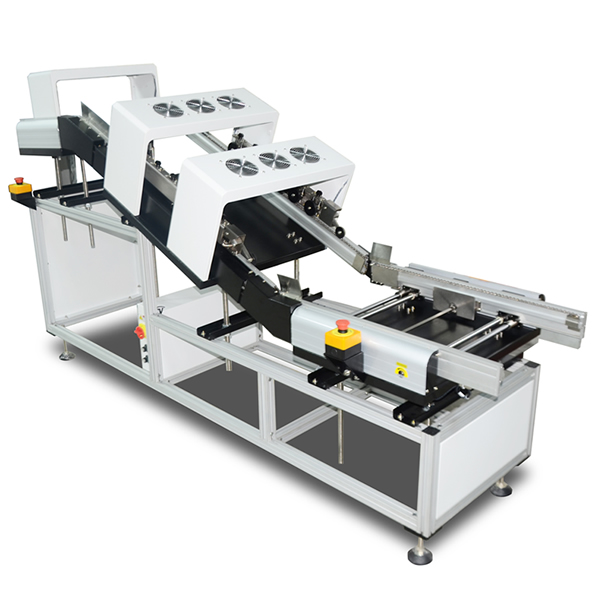

This conveyor is used to unload PCB's or pallets from a wave soldering machine at 6-7° angle. Decline section presents PCB/pallet at standard height to downstream machine.

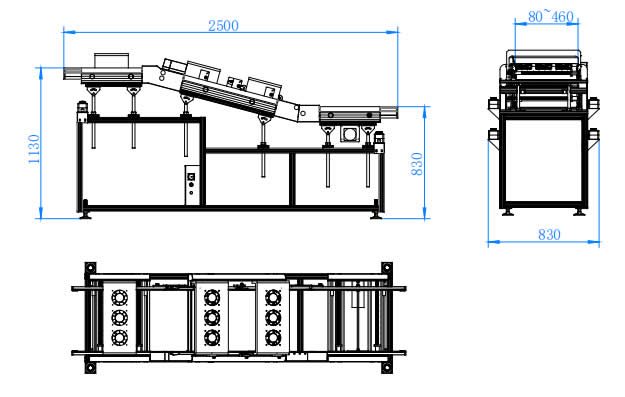

| Solder Outfeed Conveyor Dimension | ||||||||||||
|
||||||||||||
|
||||||||||||
Wave Solder Inloading Conveyor Features: |
● Conveyor width adjustment using hand crank. |
● Free running concept, no flow control. |
● Flux protected by using 3 mm pinchain. |
● Sliding resistors on decline section. |
| ● CE certified. |
OPTIONS |
● Pinchian using 5mm pins. |
● Cool fans. |
● Cylinder stoper. |
● Electrical conveyor width adjustment. |
| ● Other options available on request. |
Solder Outfeed Conveyor Specification: | |
Model | MWN-460XL-2500 |
Transport height: | Specify uopon order |
Transfer direction: | Left to right |
Operation side: | Front of the machine |
Fixed rail: | Front of the machine |
Interface: | SMEMA |
Conveyer concept: | Metal Pinchain |
Belt speed: | 0.5-3m/min adjustable |
PCB edge support: | 5mm |
Power supply: | 230 VAC/50 Hz/1 Ph |
Power consumption: | 200 VA max |
Component Clearance: | Top 30mm, bottom 60mm |
