Electronic industrial, electrommunication, Auto parts, metals, watches and other metal or nonmetal products but not highly reflective meterials.
|
Most Affordable |
|
● Electro-optic conversion efficiency can reach up to 30%, the power consumption of machine is less than 500watt, it is the 1/10 of lamp pumped solid laser marking machine,save energy. |
|
Free Maintenance |
|
● Laser without any maintenance, also need not adjust or clean lens. |
|
Long Use Life |
|
● Equiped with quality laser device, Long use life up to 100000 hours. |
|
Fast Processing Speed |
|
● The Processing speed is 2 times or 3 times faster than tranditional laser marking machine. |
|

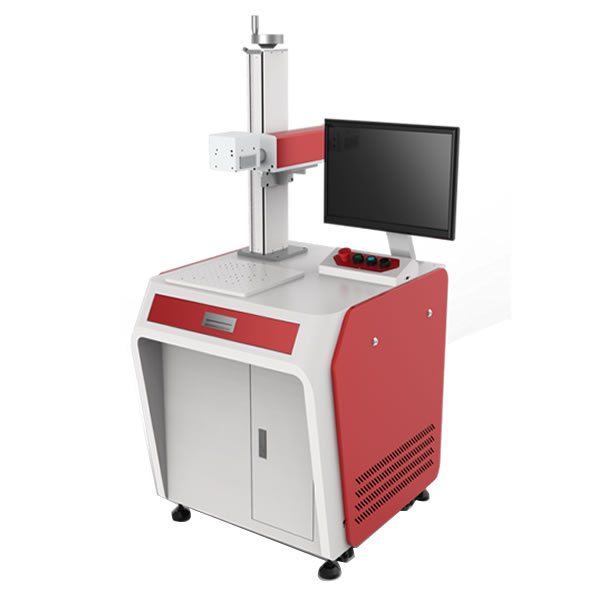

LMW30 Specification: |
|
|
Model |
LMW30 |
|
Maximum processing range |
170mm*170mm |
|
Focal length |
295mm |
|
Minimum character |
0.15mm |
|
Minimum line width |
0.01mm |
|
Engraving Speed |
800 standard characters/s |
|
Wavelength |
1064mm |
|
Laser power |
10%~100%(adjustable) |
|
Laser Frequenc |
20KHZ~200KHZ(adjustable) |
|
Laser cooling |
Cooling Fan |
|
Environment Temperature |
15℃-25℃ |
|
Power supply |
AC220V/50HZ Max 500W |
|
Engraving depth |
＜1.2mm |
|
Weight |
80KG |
|
Dimension |
1100x700x1450MM |
|
Applications: |
|
Electronic industrial, electrommunication, Auto parts, metals, watches and other metal or nonmetal products but not highly reflective meterials |
|
|
