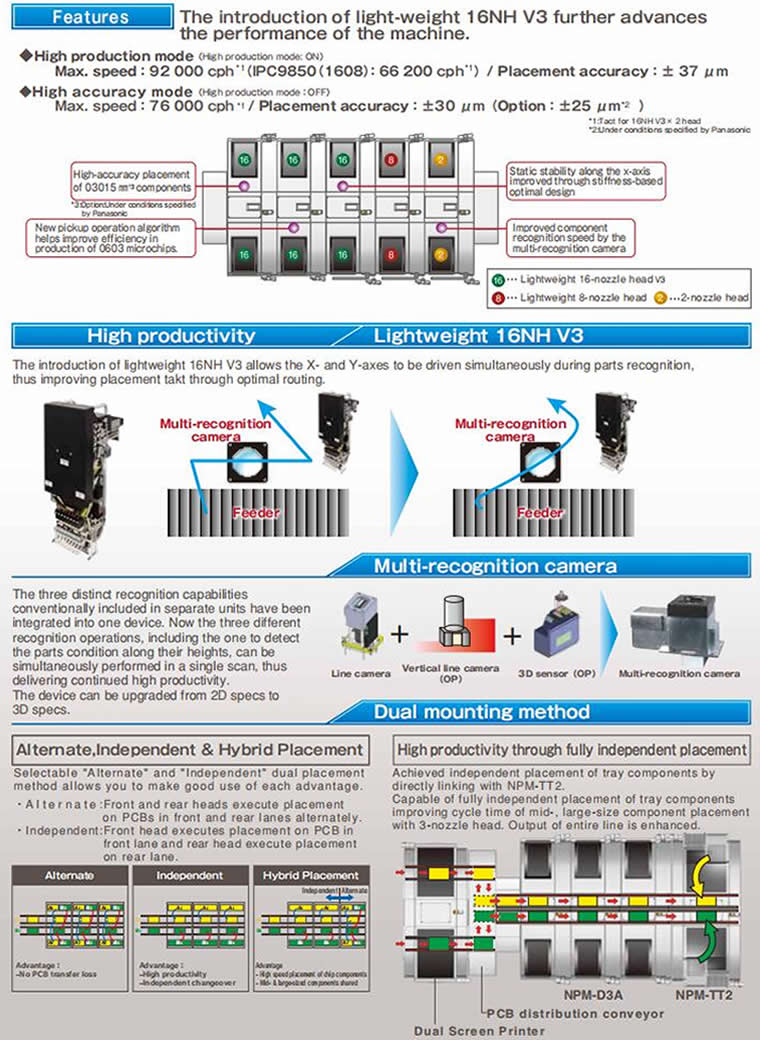

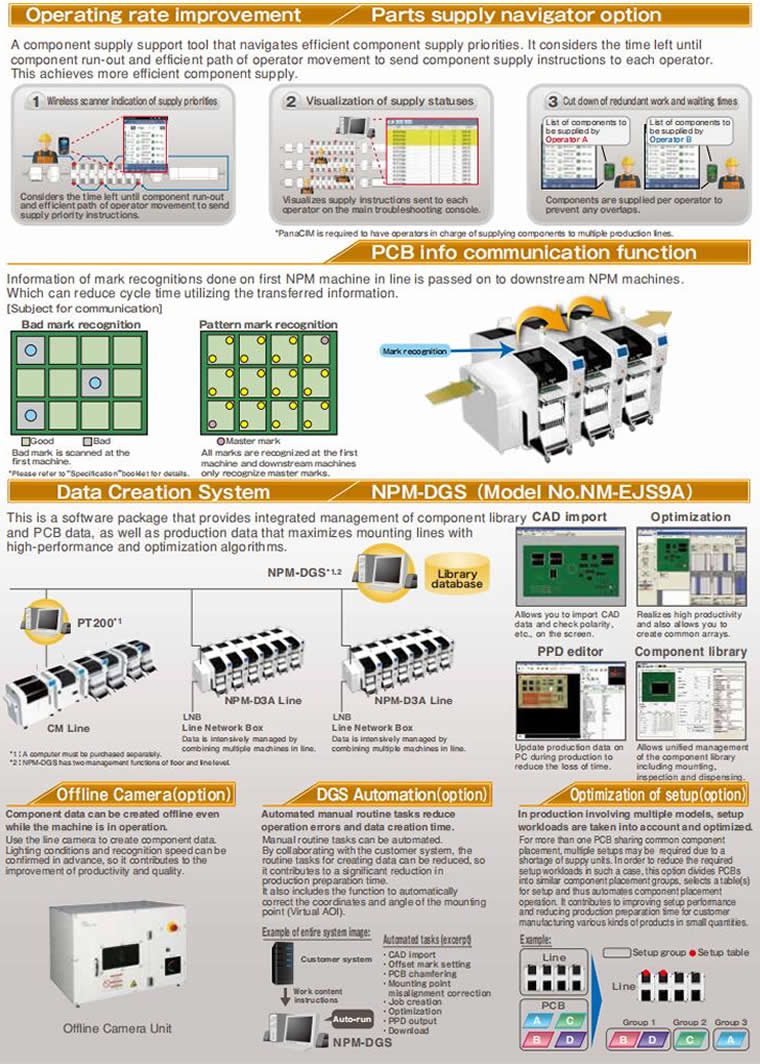

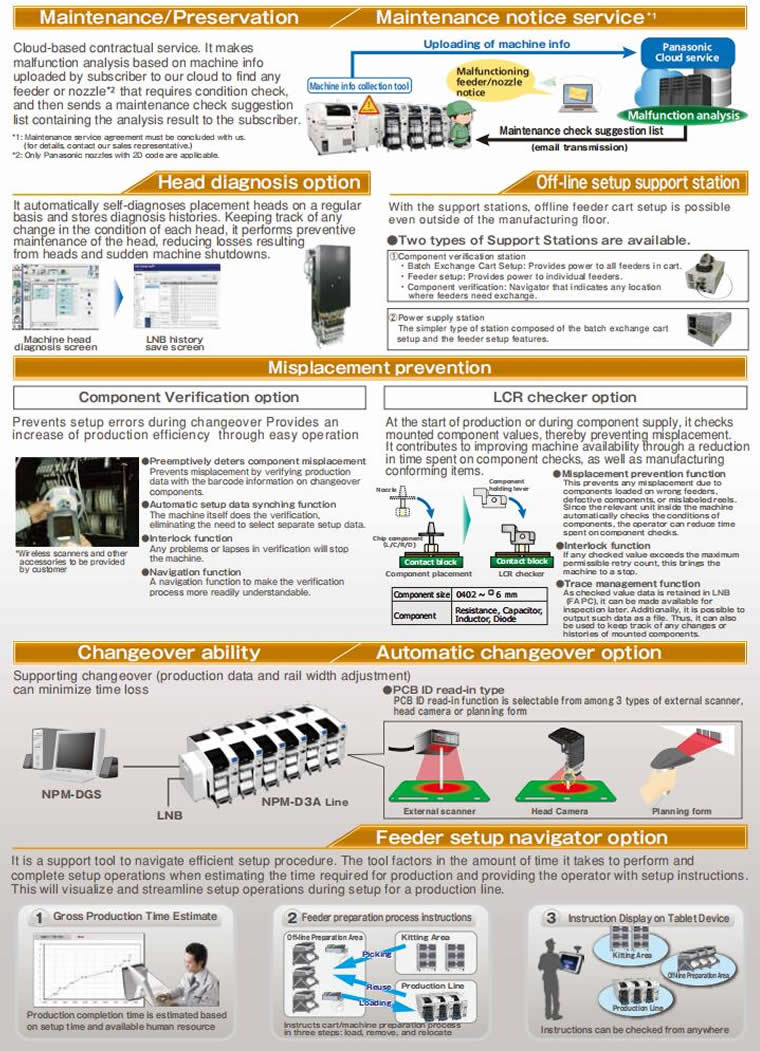

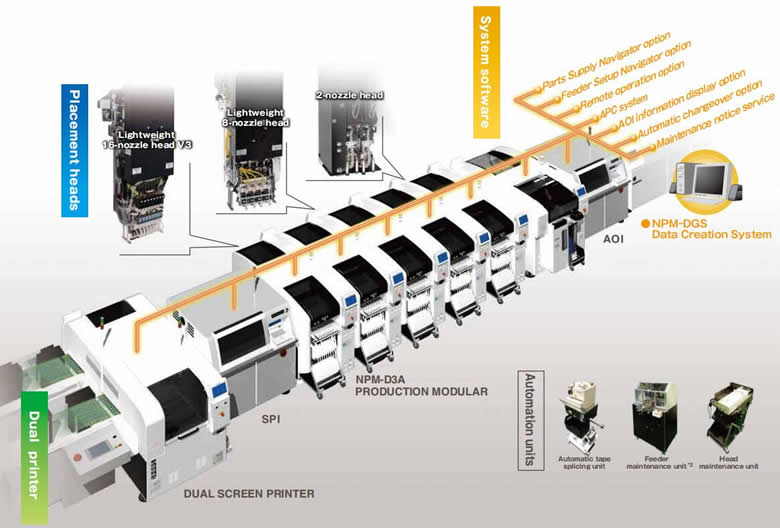

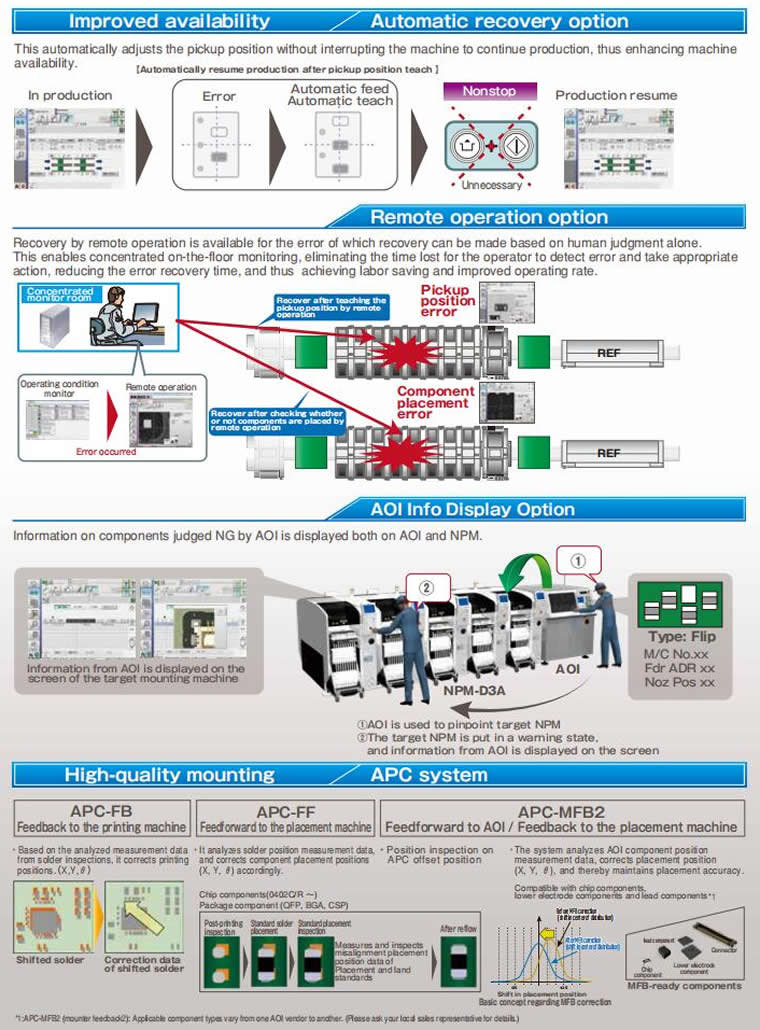

The introduction of light-weight 16NH V3 further advances. the performance of the machine.
NPM-D3A Specification: | |||
Model | NPM-D3A | ||
PCB dimensions *1 | Dual-lane mode | L50mm×W50mm～L510mm×W300mm | |
| Single-lane mode | L50mm×W50mm～L510mm×W590mm | ||
PCB exchange time | Dual-lane mode | 0s * *No 0 s when cycle time is 3.6 s or less | |
| Single-lane mode | 3.6s* *When selecting short conveyors | ||
Electric source | 3-phase AC 200, 220, 380, 400, 420, 480V 2.7kVA | ||
Pneumatic source *2 | 0.5MPa、100 L/min(A.N.R.) | ||
Dimensions *2 | W832mm×D2652mm *3 ×H1444mm *4 | ||
Mass | 1680kg (Only for main body:This differs depending on the option configuration.) | ||
Placement head | Lightweight 16-nozzle head V3(Per head)*5 | Lightweight 8-nozzle head (Per head) | 2-nozzle head (Per head) | ||
High production mode[ON] | High production mode[OFF] | ||||
Max. speed | 46000cph(0.078s/chip) | 38000cph(0.095s chip) | 21500cph(0.167s/chip) | 5500 cph(0.655s/chip） 4250cph(0.847s/QFP) | |
Placement accuracy(Cpk≧1) | ±37μm/chip | ±30μm/chip(±25μm/chip *6) | ±30μm/chip, ±30μm/QFP 12mm～32mm, ±50μm/QFP 12mm Under | ±30μm/QFP | |
Component dimensions (mm) | 0402chip*7～L6×W6×T3 | 03015*7*8/0402chip～L6×W6×T3 | 0402chip*7～L32×W32×T12 | 0603chip～L100×W90×T28 | |
Component supply | Taping | Tape: 4/8/12/16/24/32/44/56mm | Tape: 4～56/72/88/104mm | ||
| Max. 68 (4\8mm tape\Small reel) | |||||
| Stick | —— | Max.16 (Single stick feeder) | |||
| Tray | —— | Max.20(per tray feeder) | |||
*1: Due to a difference in PCB transfer reference, a direct connection with NPM (NM-EJM9B)/ NPM-W (NM-EJM2D) /NPM-W2 (NM-EJM7D)dual lane specs cannot be established. *2: Only for main body *3: Dimension D including tray feeder: 2 683 mm: Dimension D including feeder cart: 2 728 mm *4: Excluding the monitor, signal tower and ceiling fan cover. *5: Lightweight 16NH V2 is also installable. *6: ±25 μm placement support option.(Under conditions specified by Panasonic) *7: The 03015/0402 mm chip requires a specific nozzle/feeder. *8: Support for 03015 mm chip placement is optional.(Under conditions specified by Panasonic: Placement accuracy ±30 μm / chip) | |||||
