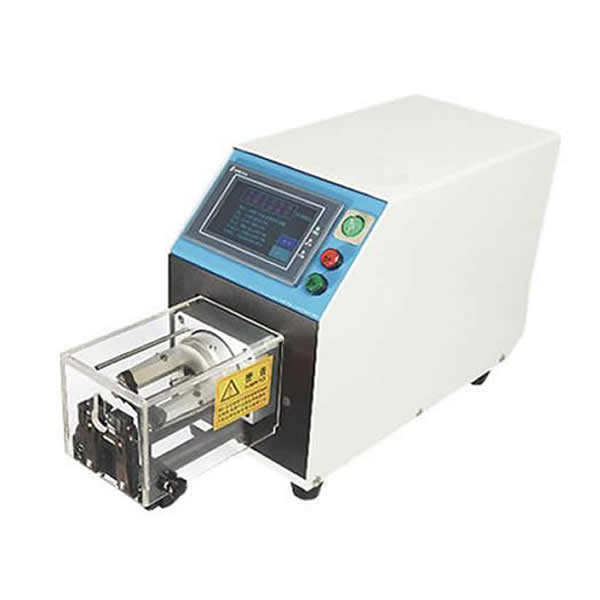

Semi automatic coaxial cable stripping machine TBX-48 series

init sku time:

BX-48 Series is a compact high-precision coaxial-cable stripping equipment which is suited to strip flexible coaxial cable of 0.5mm to 7.5mm diameter, max stripping length is 48mm, max stripping layer is 9 layers. It adopts intelligent control technology, friendly man-machine interface, can store max 100 kinds of process data ,easy to operate.

Available Options



Wire clamping device :Automatic self-aligning, motor drive, clamping force is programmable.




Cutting blades: Cutting blades is made of Swiss tungsten steel, life time is approx 500,000 time.



Motor and ball screw : High quality step motor and ball screw driving ensure stripping precision.

Semi Automatic Coaxial Cable Stripping Machine TBX-48 Series Features

● BX-48 Series is a compact high-precision coaxial-cable stripping equipment which is suited to strip flexible coaxial cable of 0.5mm to 7.5mm diameter, max stripping length is 48mm, max stripping layer is 9 layers.

● Wire clamping device is programmable with motor driving, self-align, clamping force can be set on software.

● Patent coaxial positioning technology with high precision ball screw driving ensure high precision cable stripping. operator do not need calibrate blade after replacement.

● Adopt intelligent control technology, friendly man-machine interface, can store max 100 kinds of process data, easy to operate.

 3 kinds of start function of button,pedal or sensor, stripping speed is adjustable.

● Blade is made of  Swiss tungsten steel with long service life.

TBX-48 Series Specification

  Model

  TBX-48S

  TBX-48R

  Maximum processing cable diameter

  7.5mm

  7.5mm

  Minimum processing cable diameter

  0.81mm

  0.5mm

  Minimum cutting depth

  0.01mm

  0.01mm

  Maximum stripping length

  48mm

  48mm

  Minimum stripping length

  0.1mm

  0.1mm

  Maximum stripping layers

  9 layers

  9 layers

  Driving mode

  Motor/ball screw drive

  Motor/ball screw drive

  Display mode

  Touch screen with English interface

  Touch screen with English interface

  Cutting blade

  2pcs

  2pcs

  Blade material

  Swiss tungsten steel

  Swiss tungsten steel

  Blade lifetime

  Approx 500,000 times

  Approx 500,000 times

  Centering plate

  2pcs

  2pcs

  Wire clamping device

  Automatic self-aligning, motor drive, clamping force is programmable

  Automatic self-aligning, motor drive, clamping force is programmable

  Productivity

  500-700 PCS/hr (depending on the cable type and length)

  500-700 PCS/hr (depending on the cable type and length)

  Starting mode

  Sensor / Button/ Pedal

  Sensor / Button/ Pedal

  Power supply

  AC220V/50/60HZ

  AC220V/50/60HZ

  Power

  180W

  180W

  Dimensions

  L530X W190 X H300mm

  L530X W190 X H300mm

  Weight

  19kgs

  19kgs

Semi automatic coaxial cable stripping machine TBX-48 series optional

  Tungsten steel blades *1set
