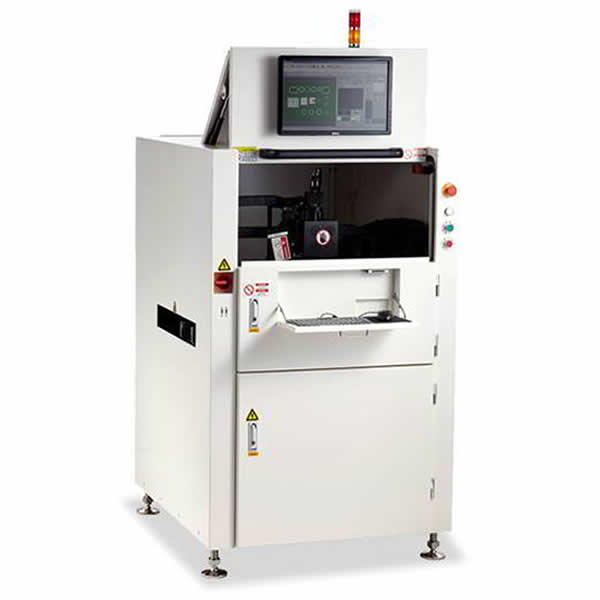

S-460i/600i Inline SPI Machine
The use of PSLM combined with the PMP to achieve 100% high-precision solder paste 3D measurement in SMT production line. Using PSLM technology, changed the traditional way of generating 3D Struct Light, the traditional glass grating moire required mechanically, driven by a piezoelectric motor (PZT). By using PSLM, no need glass grating and mechanical parts any more. The elimination of the mechanical drive and moving parts, greatly improving the ease of use, and avoid mechanical wear and reduce maintenance costs.
Available Options
|
|

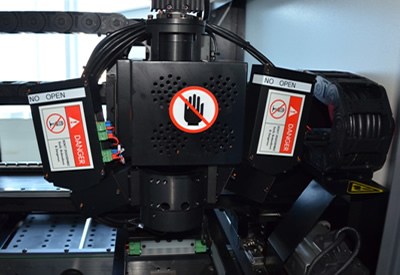

Programmable spatial light modulation(PSLM). The use of PSLM combined with the PMP to achieve 100% high-precision solder paste 3D measurement in SMT production line. Using PSLM technology, changed the traditional way of generating 3D Struct Light, the traditional glass grating moire required mechanically，driven by a piezoelectric motor (PZT). By using PSLM, no need glass grating and mechanical parts any more. The elimination of the mechanical drive and moving parts, greatly improving the ease of use，and avoid mechanical wear and reduce maintenance costs. |
|
|

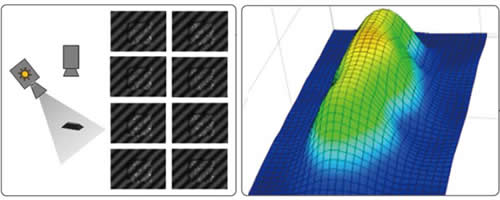

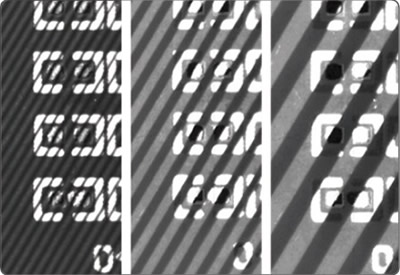

Phase modulation profiler metry. By using the Stop & Catch methods combined with multiple image acquisition, realize highly repeatable 3D results on the solder paste measurement. Compared to conventional scanning just take one pictures only on the solder paste a scan sampling, multiple image acquisition greatly enhancing the accuracy and reliable test results. |
|
|

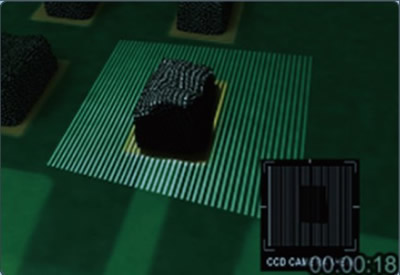

3D Diffuse lighting & active RGB 2D light source The use of synchronous structure light perfect solve the influence of the shaded part in solder paste inspection. Based on RGB two-dimensional light source, perfect the base board of high contrast. Like black solder mask and ceramic PCB, etc. Meanwhile, we can provide 2D/3D solder paste color images. |
|
|
High resolution image processing system Standard Ultra-high frames of 5M pixel industrial CCD to ensure that the extremely small components and high precision SMT component were stable and rapid detection. |
|
|

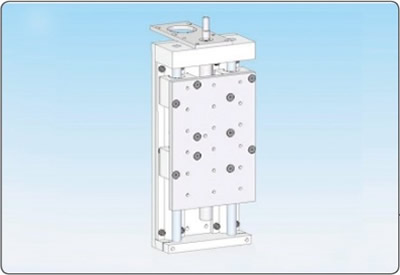

Z axis real time and static vision compensation capability The Characteristics of PSLM provide the real-time dynamic tracking on the rigid PCB, for flexible PCB, use static vision compensation to perfectly solve the warpage problems of flexible PCB. |
|
S-460i/600i Inline SPI Machine Features: |
|
1. The use of PSLM combined with the PMP to achieve 100% high-precision solder paste 3D measurement in SMT production line. Using PSLM technology, changed the traditional way of generating 3D Struct Light, the traditional glass grating moire required mechanically，driven by a piezoelectric motor (PZT). By using PSLM, no need glass grating and mechanical parts any more. The elimination of the mechanical drive and moving parts, greatly improving the ease of use，and avoid mechanical wear and reduce maintenance costs. |
|
2. By using the Stop & Catch methods combined with multiple image acquisition, realize highly repeatable 3D results on the solder paste measurement. Compared to conventional scanning just take one pictures only on the solder paste a scan sampling, multiple image acquisition greatly enhancing the accuracy and reliable test results. |
|
3. Patented D-Lighting technology achieves full light spectrum detect ability. It is perfect solution to solve the shadow effect and reduce noise interference during 3D measurement. |
|
4. Gerber data conversion and import, achieve automatic detection of the entire board. Manual "Teach" function realize user-friendly programming and test job generation in case of no Gerber data situation. |
|
5. Friendly and simple user interface, five minutes of programming and one key operation. |
|
6.Powerful "Statistical Process Control (SPC)", provide a plenty of tools, user-friendly real-time monitoring, reduce defects caused by poor solder paste printing and improve final product quality. |
|
S-460i/600i Inline SPI Machine Specifications |
||
|
Model |
S-460i |
S-600i |
|
Measurement Principle |
3D white light PSLM PMP(programmable spatial light modulation) | 3D white light PSLM PMP(programmable spatial light modulation) |
|
Measurements |
volume, acreage, height, XYofiset, shape |
volume, acreage, height, XYofiset, shape |
|
Detection of defective range |
missing print, insufficient solder, excessive solder, bridging, offset, mal-shapes, surface contamination | missing print, insufficient solder, excessive solder, bridging, offset, mal-shapes, surface contamination |
|
Camera Pixel |
Standard : 5M |
Standard : 5M |
|
LensTypes |
Telecentric lens +coaxial lighting source |
Telecentric lens +coaxial lighting source |
|
Lens Resolution |
16um(36*36mm) |
16um(36*36mm) |
|
Minimum component size |
0201 inch |
0201 inch |
|
FOVSpeed |
0.45s/FOV |
0.45s/FOV |
|
Quantityof lnspection Head |
Single Head |
Single Head |
|
RGB LightSource |
standard configuration |
standard configuration |
|
Z axis for compensation of deformed board |
standard configuration |
standard configuration |
|
Maximun Meauring Height |
Standard :±550um |
Standard :±550um |
|
Maximun Measuring Heightof PCB Warp |
±5mm |
±5mm |
|
Minimum Pad Spacing |
150um |
150um |
|
Maximum PCB Size |
L460xW460mm |
L600xW460mm |
|
Thickness of thePCB |
0,6-5mm |
0,6-5mm |
|
Component height limited |
up:30mm down:40mm |
up:30mm down:40mm |
|
Board EdgeDistance |
3mm |
3mm |
|
Conveying Direction |
left to right |
left to right |
|
SPC Statistics |
Standard configuration |
Standard configuration |
|
Geiber & CAD data loading |
Standard configuration |
Standard configuration |
|
Computer |
Windows 10 OS (64 bit), English version |
Windows 10 OS (64 bit), English version |
|
Equipment Diemension and Weight |
W1000x D1000xH1580mm |
W1200x D1350xH1580mm |
|
Power & AirPressure |
AC, 220V, 50/60hz, 4~6Bar |
AC, 220V, 50/60hz, 4~6Bar |
|
Power (Start/nornmal) |
start: 2.5kw / normal operation: 2kw |
start: 2.5kw / normal operation: 2kw |
|
S-460i/600i Inline SPI Machine Includes: |
|
Standard configuration: |
|
● Inline SPI machine S-460i/600i |
|
● 5M pixels industrial camera &telecentric lens |
|
● 3D inspection head (PSLM PMP) |
|
● SPC software |
|
● One year warranty |
