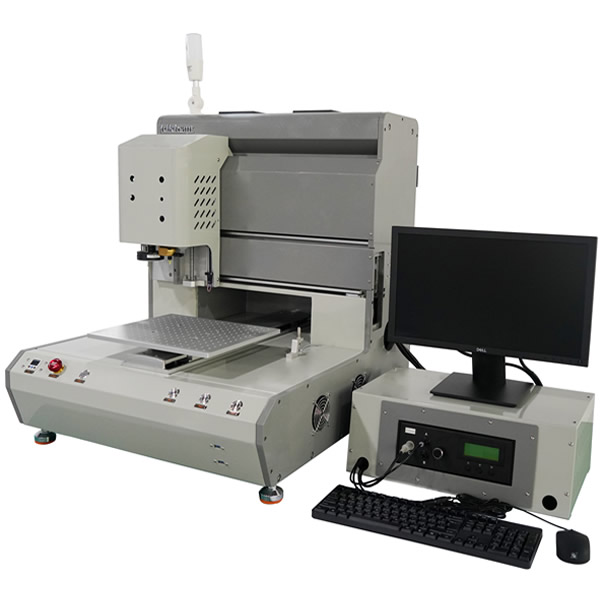

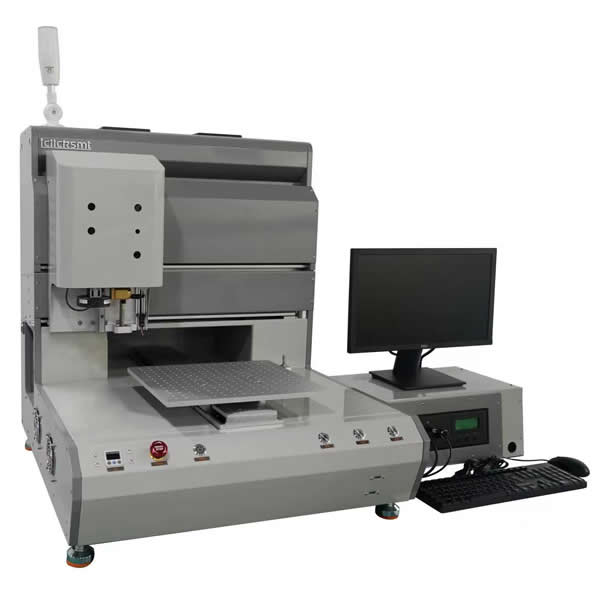

Benchtop Dispensing Machine SD-400i adopt high precison servo control system which ensures stable and precise run of machine. it can fit different valve. it's visual system make programming easier and ensures precise dispensing. Standard machine not included valve because customer's different application. Valve Option: ● TECHCON TS5000DMP rotary valve ● MUSASHI controller+syringe
|

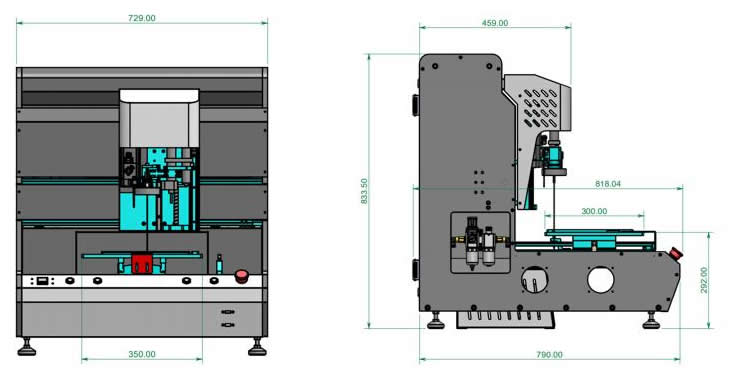

Benchtop Dispensing Machine SD-400i Dimension: |
|
|
|
|

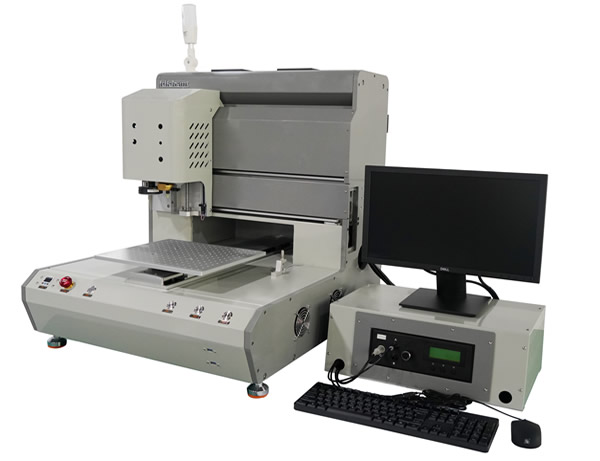

Advanced industrial design make machine ● Advanced industrial design make machine looks very beatiful, solid structure and X/Y/Z servo motor with it's motion control system ensure machine run smoothly and precisely. |
|
|

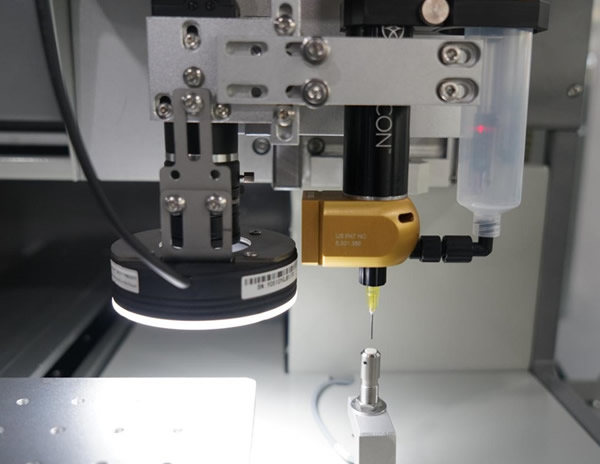

CCD for programming ● CCD for programming: Machine Using CCD to teach the dispensing path, compared to traditional programming methods, it can save a lot of time and programming is easy. CCD can identify mark points, it can correct the offset of the PCB on the fixture. |
|
|

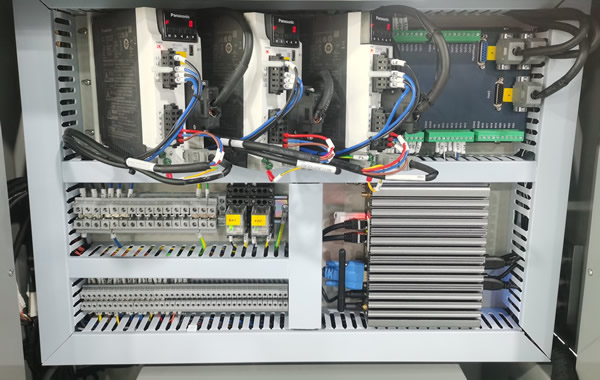

● High precison servo motor + servo driver, ball screw and it's driving system, ensure stable and precise run of motion system. ● Industrial PC+motion control card, windows operation system, full english interface, very easy to operate. |
|
|

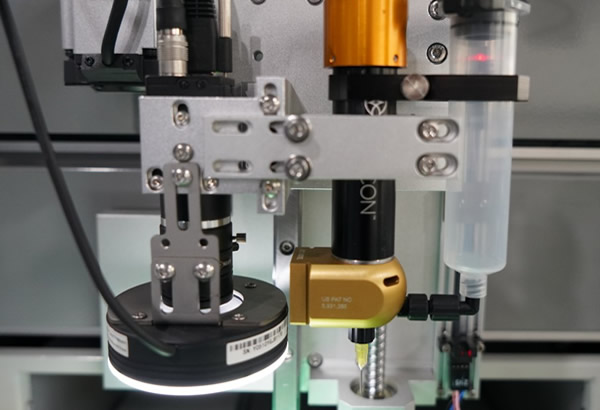

● The machine is equipped with automatic needle alignment function. After replacing the needle, the machine can auto-correction the height of the Z-axis for the needle.Ensure consistency in each dispensing process. |
|
|

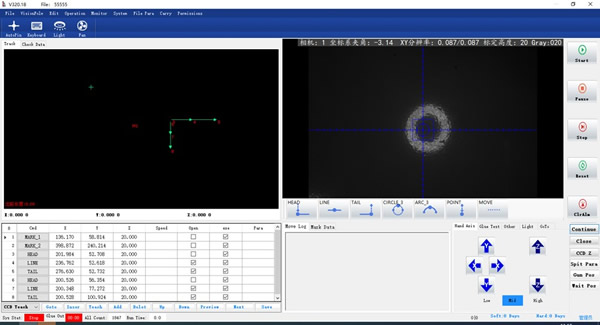

● Powerful software has the dispensing point, straight line, round, rectangular, and other graphical command; Position correction function. ● The trajectory of dispensing can be displayed on the software, which is clear and intuitive |
|
|

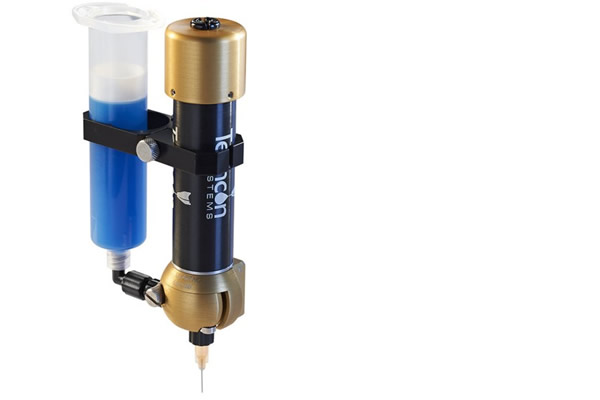

Option ● Option: High precision TECHCON TS5000DMP rotary valve is suitable for medium to high viscosity liquids with viscosity ranging from 30k to 1300kcps.Mainly suitable for solder paste, UV glue, red glue, epoxy resin (silicone). |
|
|

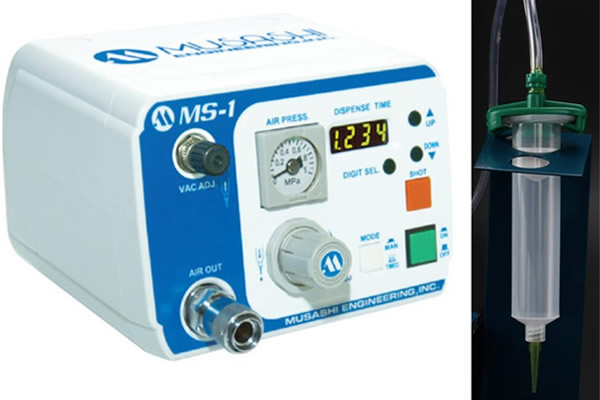

Option ● Option: High precision MUSASHI controller MS-1+syringe control dispensing.Mainly suitable for solder paste, silver paste, UV resin, instant drying glue, silicone resin, lubricating oil. |
|
Benchtop Dispensing Machine SD-400i Features: |
|
● High precison servo motor, ball screw and it's driving system, ensure stable and precise run of motion system. |
|
● Various high precision valve such as screw valve, MUSASHI controller+syringe which can meet different dispensing requirement. |
|
● Equipped with high quality Industrial CCD, powerful visual software makes programming easier and accurater. CCD can identify mark points, it can correct the offset of the PCB on the fixture. |
|
● Powerful software has the dispensing point, straight line, round, rectangular, and other graphical command; Position correction function. |
|
● The machine is equipped with automatic needle alignment function. After replacing the needle, the machine can auto-correction the height of the Z-axis for the needle. |
|
● Industrial PC, windows operation system, full english interface, very easy to operate. |
Benchtop Dispensing Machine SD-400i Specification: | |
Model | SD-400i |
Dispensing scope | 350mm*300mm |
Control System | Industrial computer/motion control card |
Axis number | X,Y,Z axis |
Motion system | Servo motor and ball screws |
Max Work Movement Speed | Max 500mm/s |
Programming Type | Camera teaching/CAD load |
Positioning Accuracy | +/- 0.05mm |
Repeatable Accuracy | +/- 0.05mm |
CCD visual system | Industrial CCD |
Power Supply | AC220V 50~60Hz |
Total Power | About 2KW |
Air Requirement | 0.6Mpa |
Overall Size W*D*H | 729*790*833.5mm(not include the light tower) |
|
Benchtop Dispensing Machine SD-400i Configuration: |
|
Standard configuration: |
|
● X,Y,Z Axis dispensing Machine. |
|
● Industrial PC ,monitor, Keyboard,mouse. |
|
● 3 axis servo driving system. |
|
● CCD visual system. |
|
● 1 year parts warranty. |
|
|
|
Optional configuration: |
|
● TECHCON TS5000TMP Screw valve. |
|
● MUSASHI controller MS-1+syringe. |
