The Max load capacity of this automatic guide vehicle is 500kg.After loading the materials by hand or industrial robot, the AGV can automatically drive to the feeding point entire transport process bar and the location setting. The entire transport process needn't human intervention. The operation is simple and the AGV doesn't conflicts with other units in logistics system. The machine adopts QR code navigation, accurate positioning, and the QR code can be reused.
|
QR Code Navigation AGV Features: |
|
1. QR code navigation: QR code navigation, AGV realizes different motion paths by reading different QR codes, At the same time, use QR code positioning, positioning accuracy. |
|
2. Handling capacity: maximum 500KG load. |
|
3. Stable and efficient: Adopt industrial-grade devices, electrical modules, electromechanical structure to achieve 7 * 24 hours of continuous and reliable work. |
|
4.The positioning is accurate, the navigation flexibility is better, and it is easier to lay, change or expand the path, which is convenient for controlling communication and controlling sound and light without interference. |
|
5. Safety guarantee: multi-sensor obstacle avoidance, providing obstacle detection, collision detection, emergency braking and other multi-level safety protection. |
|
6. Reliable communication: Intelligent wireless communication network and management system complete the communication function, industrial-grade wireless WIFI, support AP, AC. |
|

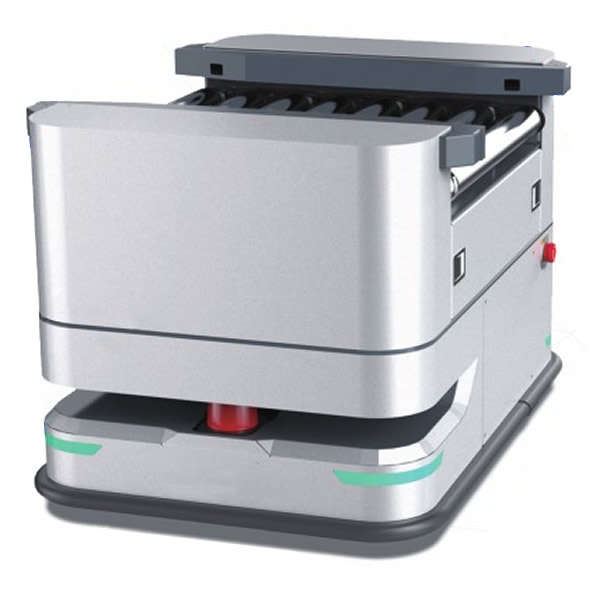

QR Code Navigation AGV SY-500Q specification: |
||
|
Model |
SY-500Q |
|
|
Basic performance |
DImension: L; W; H | 920*686*280mm |
| Selt weight | 120KG | |
| Load capacity | 500KG | |
|
Running parameters |
Max running speed(empty load) | 2.0m/s |
| Max running speed(full load) | Go forward:1.5m/s | |
| Radius of gyration | 578mm | |
| Gradeability | 3degrees | |
| Obstacle height | 10mm | |
| Across the width of the gap | 30mm | |
| The gap off the ground | 25mm | |
| The width of the walkway | Min800 mm | |
| Turning channel width | Min1200 mm | |
| Site positioning accuracy | ±10mm | |
| Navigation method | IMU + QR code | |
| Lifting height | 50mm | |
|
Battery performance |
Battery capacity | 55V 20Ah |
| Full charge running time | 5-8h | |
| Charging way | Automatic, manual | |
|
External interface |
Charging time | 0.5 hour |
| Power outlet | 16000times | |
| Obstacle avoidance | Laser obstacle avoidance | |
|

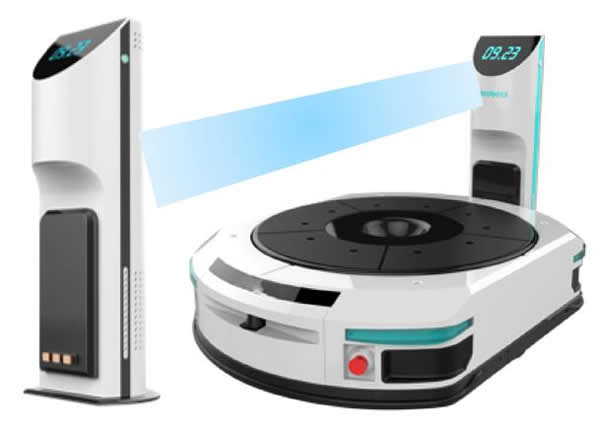

Laser Navigation AGV automatic charging station: |
|
|
Functional advantages: ● Intelligent automatic charging. ● Small size and high efficiency. ● Industrial design, safe and reliable. |
|
|
Specifications: ● Voltage：220V ● Quick charge: 60 minutes full |
|
|
Scheme design-configuration list: |
|||||
|
No |
Name |
Model |
Product description |
Quantity |
Unit |
|
1 |
AGV |
SY-500Q |
500KG QR code navigation + roller |
1 |
pcs |
|
2 |
Charging station |
ACS-1900 |
Charging Station |
1 |
pcs |
|
3 |
server |
HETU-Server-Standard |
Recommended models: 2 dual hot standby, DL388Gen9 E5-2600v4 series models Single 2609V4 8 core 1.7G Configuration requirements: 2 dual hot standby, 8 core, 16G, 500G SSD hard drive, Gigabit network card |
1 |
pcs |
|
4 |
PC |
ThinkCentre E74-10KS000CC |
Computer-Desktop-Lenovo ThinkCentre Series Desktop |
1 |
pcs |
|
5 |
PDA |
X5A-304WLM |
Xiao Bang-X5A-304WLM 2D |
1 |
pcs |
|
6 |
Hetu software |
Hetu Software |
Hetu System Standard Edition |
1 |
set |
|
7 |
Wireless Controller |
EWP-WX2540H |
H3C WX2540H-EWPXZ12540H-6 port Gigabit (5GE-T + 1SFP) wireless controller |
1 |
pcs |
|
8 |
switches |
LS-S5110-28P-PWR |
Ethernet switch, 24 Gigabit POE network port, 4 Gigabit optical port |
1 |
pcs |
|
9 |
Wireless AP |
EWP-WA4320-ACN-FIT |
Wireless AP, support POE, 802.11ac /n |
1 |
pcs |
|
10 |
Wireless AP license |
LIS-WX-8-BE |
Wireless controller license, 8 |
1 |
set |
|
11 |
Weak current cabinet |
TS.6022 |
omputer peripherals-cabinet-600 * 1000 * 1255 server cabinet-hexagon mesh front door |
1 |
pcs |
