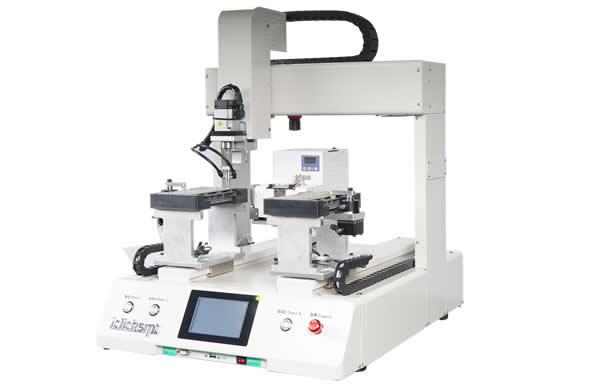

SY-S12 series machine is equipped with high quality servo motor screw driver and customized screw feeder, Double work station realize non-stop running, greatly improve production efficiency.
|
|
High quality robot with step motor controlled by PLC and touchscreen. |
|
|
High quality servo motor screw driver and customized screw feeder. |
|
|

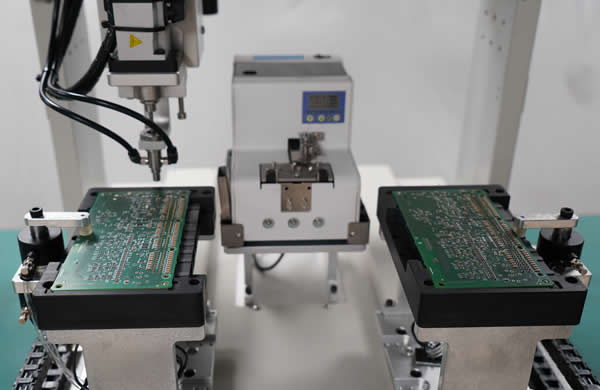

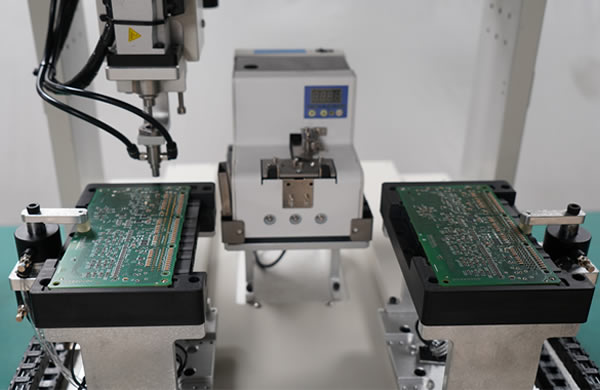

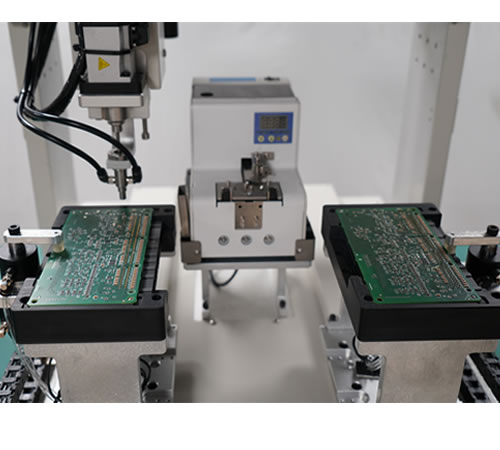

Double work station realize non-stop, improve production efficiency. Support placing products on the front side of machine and taking out on back side of machine. |
|
|

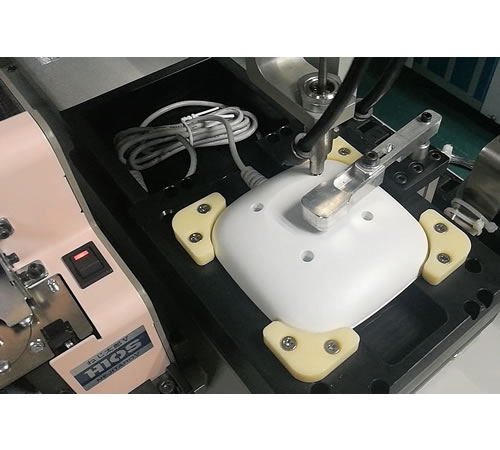

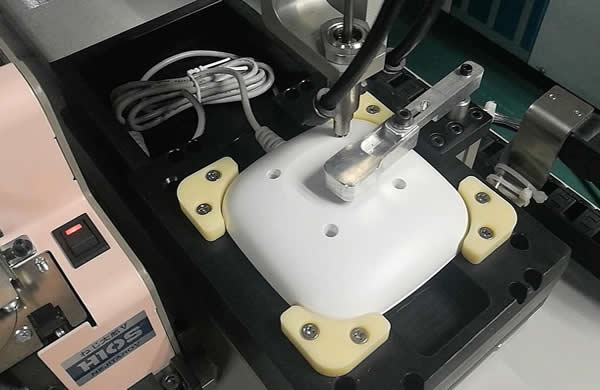

Customized fixture is available to variety of products. |
|
|

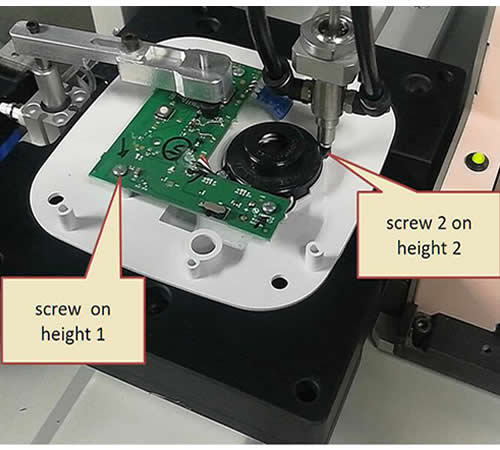

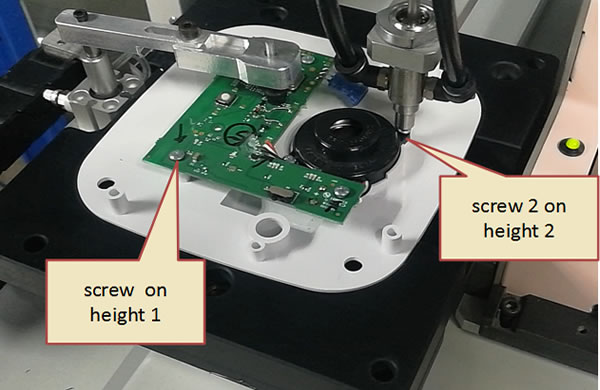

SY-S12T/L/M Series with optional A axis can automatically adjust screw driving height, capable to drive screws on different plane height. |
|

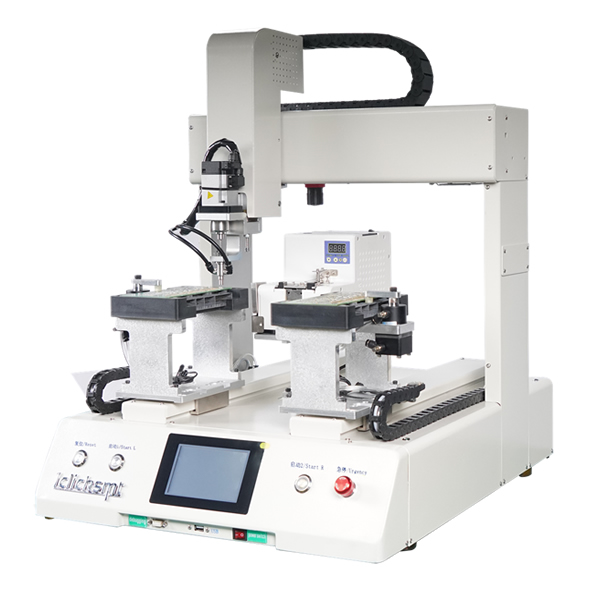

Automatic Screw Driving Machine SY-S12 Series Features: |
|
1. High quality 4 axis(X/Y1/Y2/Z) robot with step motor control ensures machine run stably. |
|
2. PLC and touch screen control system with full english interface, easy to operate. |
|
3. Equipped with high quality servo motor screw driver and customized screw feeder. |
|
4. Double work station realize non-stop, improve production efficiency. |
|
5. Customized fixture is available to variety of products. |
|
6. Screw missing detection and loose screw detection are standard configuration. |
|
7. SY-S12T/L/M Series with optional A axis is able to drive screws on different plane height. |
|
8. Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend. |
|
Automatic Screw Driving Machine SY-S12 Series Specification: |
|||
|
Model |
SY-S12T |
SY-S12L | SY-S12M |
|
Screw driving head quantity |
1 |
1 | 1 |
|
Work table quantity |
2 |
2 | 2 |
|
Work table size(mm) |
W120mm*D200mm*H60 |
W180mm*D250mm*H60 | W250mm*D300mm*H60 |
|
Drive system |
X/Y/Z axis step motor control |
X/Y/Z axis step motor control | X/Y/Z axis step motor control |
|
Positioning Repeatability |
±0.05mm |
±0.05mm | ±0.05mm |
|
Screw picking method |
vaccum picking |
vaccum picking | vaccum picking |
|
Screw driving speed |
max 1.5 pcs/sec |
max 1.5 pcs/sec | max 1.5 pcs/sec |
|
Power |
300W |
300W | 300W |
|
Power Supply |
1P, AC110V/220V, 50/60 HZ |
1P, AC110V/220V, 50/60 HZ | 1P, AC110V/220V, 50/60 HZ |
|
Machine size(mm) |
W550mm*D650mm*H650mm |
W650mm*D650mm*H700mm | W800mm*D650mm*H700mm |
|
Weight |
60KG |
70KG | 75KG |
|
air pressure requirement |
0.4-0.7Mpa |
0.4-0.7Mpa | 0.4-0.7Mpa |
| Specification of screws for standard Quicher screw feeder | One type of screw from M1.0 to M3.0(Others can be customized) | One type of screw from M1.0 to M3.0(Others can be customized) | One type of screw from M1.0 to M3.0(Others can be customized) |
| Applicable Screw Length(under head) |
Up to 20mm |
Up to 20mm | Up to 20mm |
|
Standard HIOS screw driver |
Standard Torque is 1~5kgf.cm (0.1~0.5N.M). Others can be customized | Standard Torque is 1~5kgf.cm (0.1~0.5N.M). Others can be customized | Standard Torque is 1~5kgf.cm (0.1~0.5N.M). Others can be customized |
|
Automatic Screw Driving Machine SY-S12 Series configuration: |
|
Standard configuration: |
|
● Automatic screw driving machine |
|
● 4 aix step motor and driving system. |
|
● Customized screw feeder |
|
● Servo motor screw driver |
|
● 1 year parts warranty. |
|
Optional configuration: |
|
● A axis for screws needed to be driven on different plane height |
|
● Screw floating height detection. |
|
● Customized fixture |
