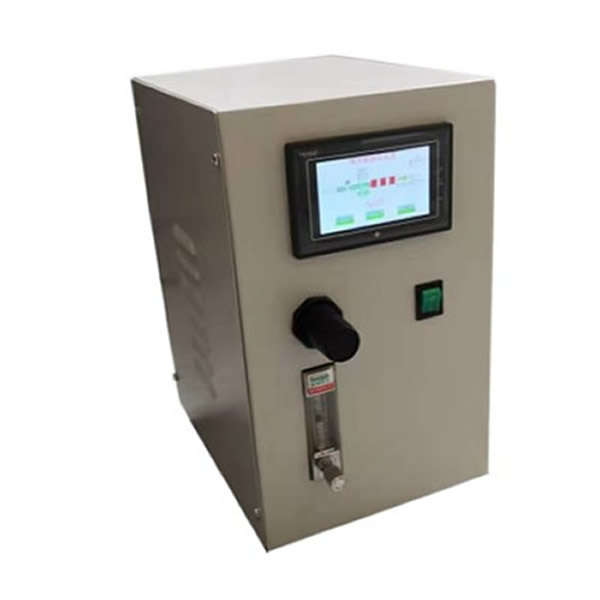

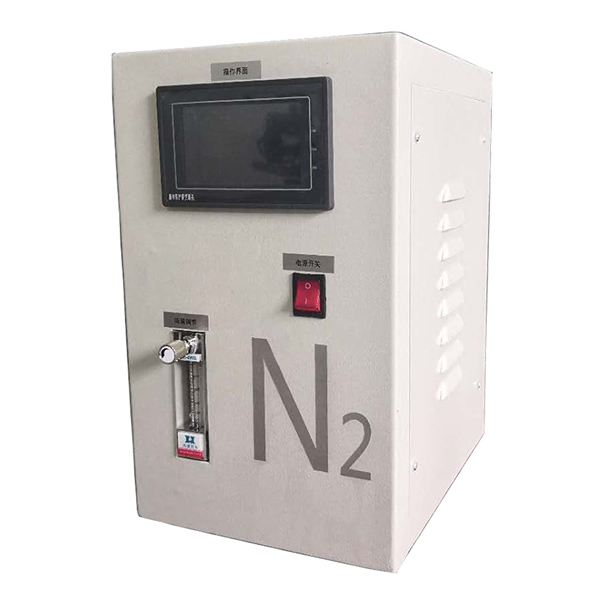

1Click Micro nitrogen generation system SelMate-M500 is the smallest desktop nitrogen machine at present, using the world's high quality, advanced imported membrane separation components.
|
Micro Nitrogen Generating System SelMate-M500 Features: |
|
● Multi-tube structure efficiently prevents movement of Carbon Molecular Sieve(CMS), Attrition is kept to a minimum, thereby prolonging the life span of the CMS. |
|
● N2 purity could reach as high as 99.999%. |
|
● Every adsorption tower is installed with an advanced control system. Also, our special 1Click design controls the air flow to enhance the efficiency of the generator system. |
|
● Ultra-frequency vibration filling technique enables closer and tighter packing of Carbon Molecular Sieve, to minimise movement. |
|
● Nitrogen machine with compressor and filter, small area, save space. |
|
Micro Nitrogen Generating System SelMate-M500 Specification |
|||||
|
N2 flow rate (L/H) |
N2 Purity (% ) |
N2 press | Power | Szie(mm) | Requirements for compressed air |
|
500 |
95 | 0.75Mpa | 200W (AC220) | 230*300*380 | Input air flowrate:≥20NL/min Compressed air pressure: 0.75-0.8Mpa compressed air dew point: -20 °C compressed air temperature: 25-55c Oil content of compressed air: ≦1PPM |
|
400 |
96 |
||||
|
300 |
97 |
||||
|
200 |
98.2 |
||||
|
100 |
99.3 |
||||
|
50 |
99.8 |
||||
