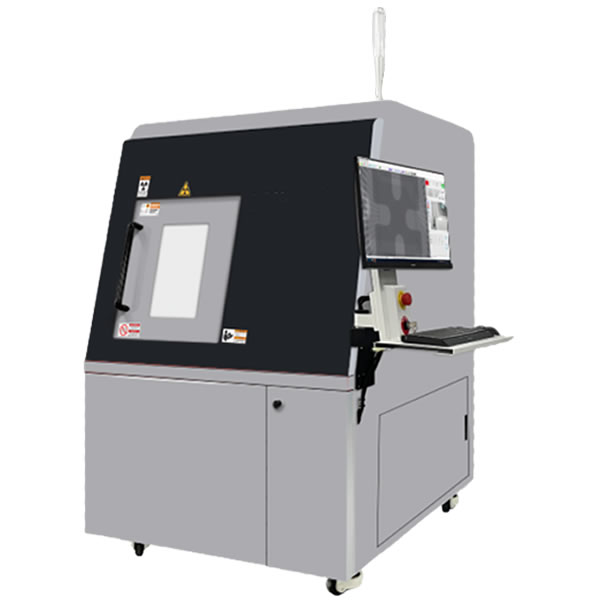

X-Ray machine SoYi-R7
The system mainly consits of micro focal X-ray source, image imaging unit, computer image processing system, mechanical system, electrical control system, safety protection system, warning system, including modern non-destructive tessolderg, computer software technology, image acquisition and processing technology, mechanical transmission technology as a whole, covering the optical, mechanical, electrical and digital image processing four categories of technology fields. X-ray absorption differences by different materials, the internal structure of objects imaging and detection of internal defects, can be real-time observed products inspection image, determine whether the internal defects and defect types and grades, at the same time through the computer image processing system to complete the image storage and processing, in order to improve the image resolution, Ensure the accuracy of the assessment.
Available Options
|

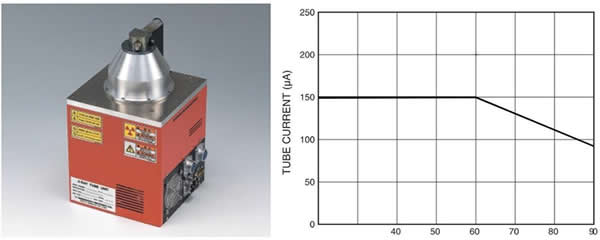

Hardware ● Top quality X-ray source in the world ● Hamamatus 90KV Microfocus X-Ray source |
|

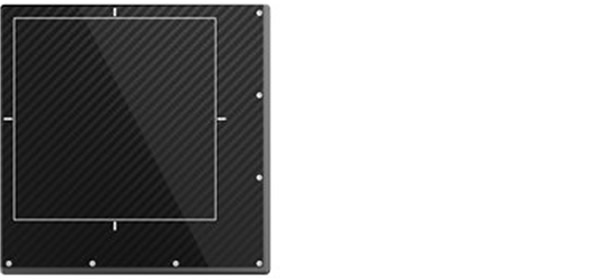

Hardware HBI Flat panel detector ● HBI Flat detector has real-time image acquisition, real-time image correction, provides high quality image, passive cooling device, built-in temperature sensor can display the working temperature in real time, a variety of different gain gear PGA + Binning combined working modes. |
|

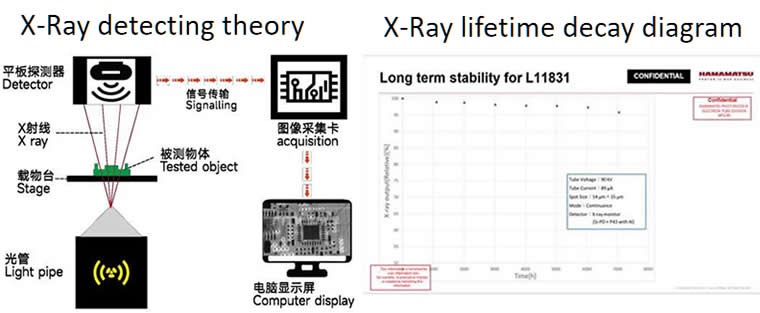

X-Ray Detecing Theory |
|
|
|
|
Common defect-Electronic semiconductor |
|
|

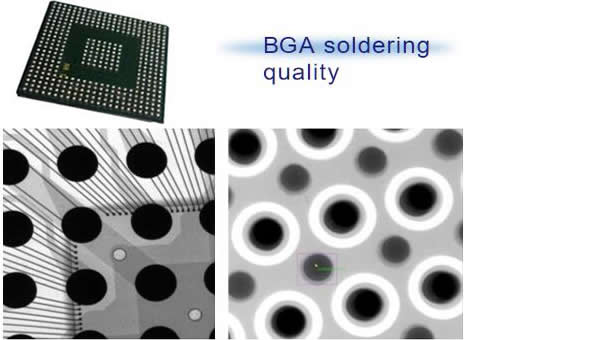

BGA soldering quality |
|

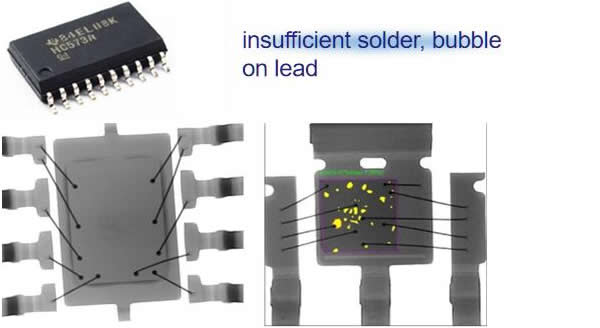

insufficient solder, bubble on lead |
|

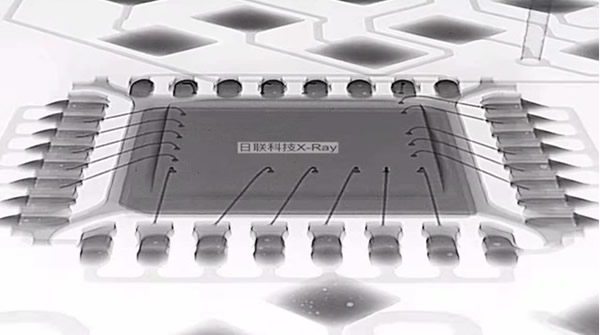

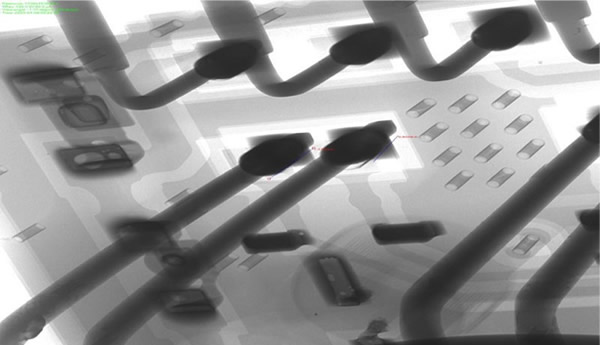

IC golden wire \ bubble detecting |
|
Solder height |
|

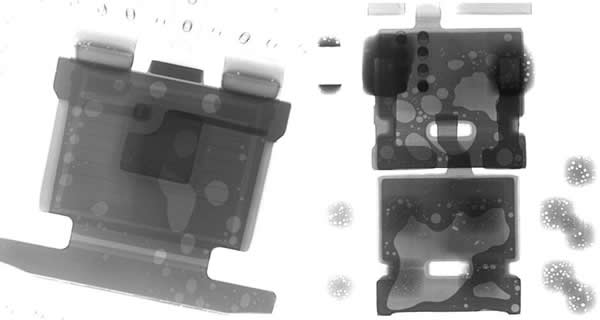

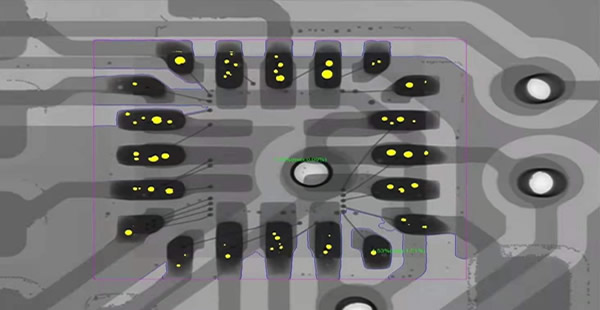

Soldering point bubble measuring |
|

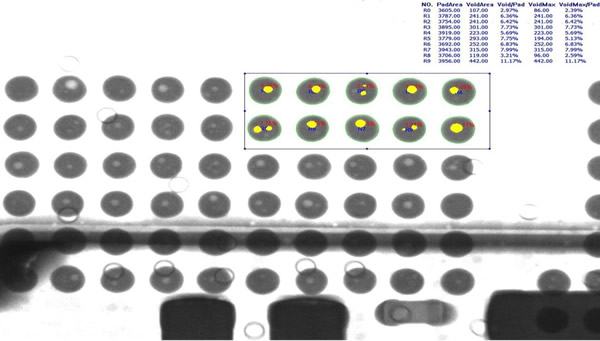

BGA bubble measuring |
|

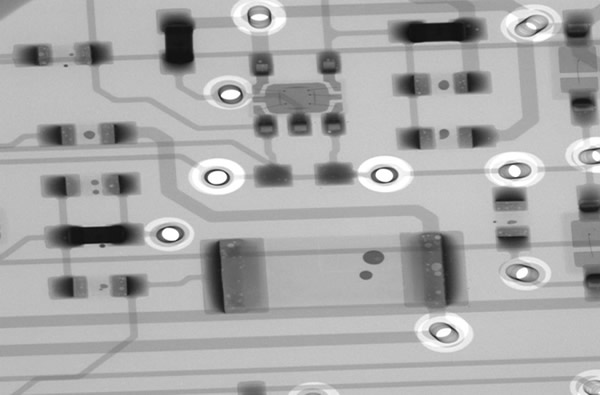

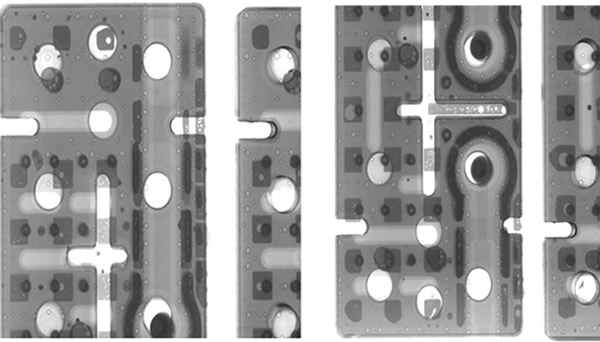

PCBA detecting |
|
5G Base station circuit board detecting |
|

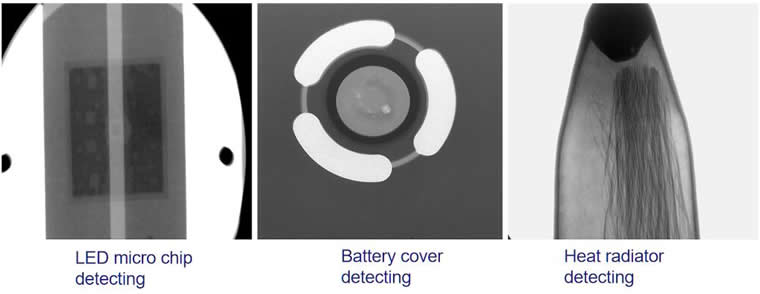

LED bubble detecting |
|

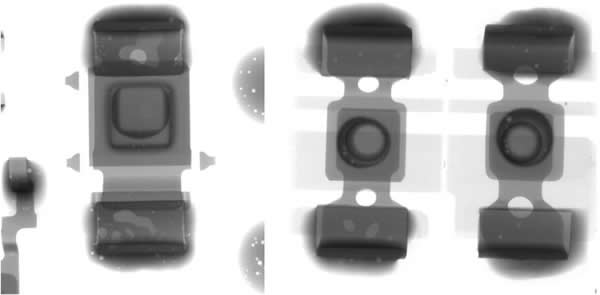

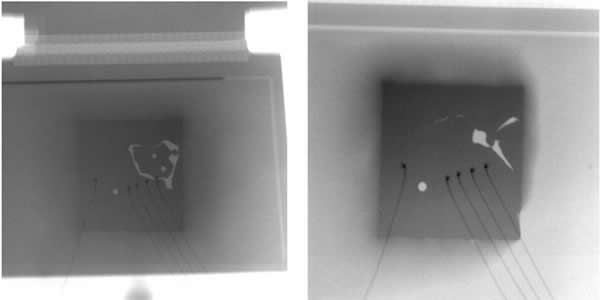

Chip bubble detecting |
|
Chip bubble detecting |
|
|
|
|
|

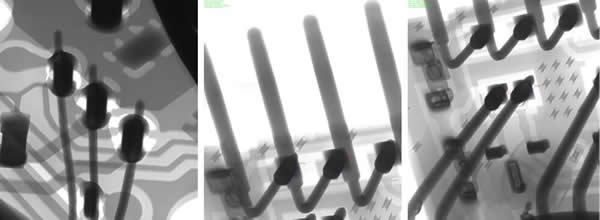

DIP soldering height detecting |
|

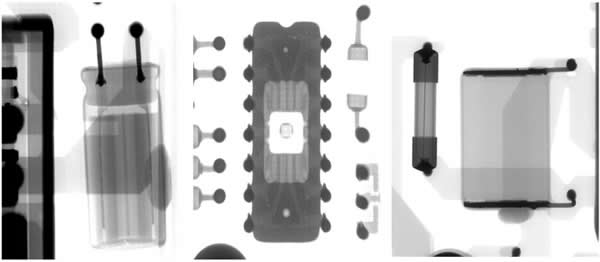

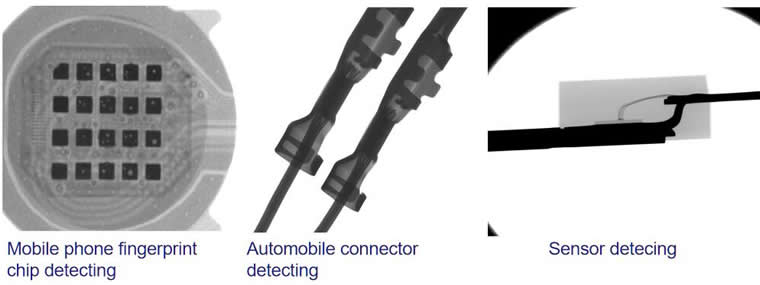

Component detecting |
|
|
|
SoYi-R7 Specification |
|||
| Hardware |
X-Ray Source |
Type | Enclosed |
| Volatge | 90kV(200uA) | ||
| Brand | Hamamatsu, made in Japan | ||
| Spatial resolution | 5um | ||
| Imaging unit | Type | Flat panel detector | |

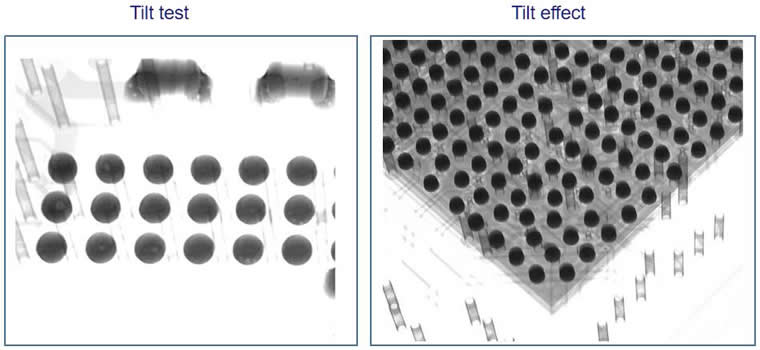

| Tilt angle | Single side 60° | ||
| Pixel matrix | 1280*1024 pixel | ||
| Pixel size | 85um | ||
| Frame rate | 30ps | ||
| System magnification | 200X | ||
| Brand | HBI, made in China | ||
|
Computer |
Industrial PC | Industrial PC, Window 10 system | |
| Display | 23” | ||
|
Loading platform |
Loading area | 540mm×540mm | |
| Detecting area (max) | 510mm×510mm | ||
|
Software |
Software | Self-developed image processing system | |
| Auto measuring | BGA soldering voids auto measuring, support data /graphic output | ||
| Multi measuring tools | Support measuring distance, angle, diameter, polygon, PTH filling rate, etc | ||
| CNC mode | CNC programmable inspection, easy operation | ||
| Real time display | Real time diplaying the working data of voltage, current, angle, date, etc | ||
|
Gerneral |
Power | 2kW | |
| Size | 1100*1360*1750mm(L*W*H), not including display and lighting tower | ||
| Weight | 950KG | ||
