The ESP-900 solder paste mixer provide powerful solder paste mixing capacity. Anyone can prepare the well mixed solder paste to simplify the printing process in STM line.

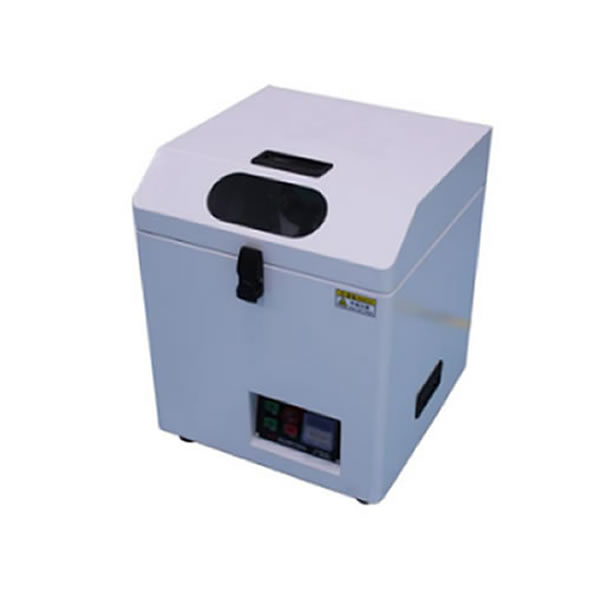

ESP-900 Solder Paste Mixer Details
|
● Easy to Operation The operation of ESP-900 solder paste mixer is very simple.Loading the original solder paste container into universal holder then press "Start" button. The ESP-900 will mix the solder paste, after your setting time the machine will stop automatically. The well mixed solder paste is ready for printing. Setting the timer by press the increasing and decreasing button. The LED display the setting time.
|
|
● Well Mixing Capacity The SPM-900 solder paste mixer has two rotation parts: 900rpm/min of arm rotation and 450 rpm/min of container, it can provide powerful solder paste mixing capacity. Anyone can prepare the well mixed solder paste to simplify the printing process in STM line.
|
|
● Flexibility The ESP-900 solder paste mixer equipped with universal solder paste container holders. Which can hold most of commercial solder paste container. The holders are very easy to load and unload the solder paste container.
|
|
● Precise Operation Time Control The ESP-900 equipped with electronic time and LED display. It is very easy to operate and the setting range from 6 seconds to 9.9 minutes by 6seconds index.
|
|
● Low Maintenance The ESP-900 equipped with digital timer. It is very easy to operate and set time range.
|
|
Image of Before-After Mixing
|
ESP-900-Specifications | |
Model | ESP-900 |
Arm Rotation Speed | Approx 900 RPM / MIN |
Container Rotation Speed | Approx 450 RPM / MIN |
Solder Container | 500g two container can be loaded |
| Maximum diameter of container(mm) | 62mm Max or specify |
| Maximum height of container(mm) | 70mm Max or specify |
Power supply | AC 220V 50HZ 1PH |
Exterior structure | Metal frame with paint processing |
Power Consumption | 300W max |
External Dimension L*W*H(mm) | L480*W460*H540mm |
Weight | 50KG |
