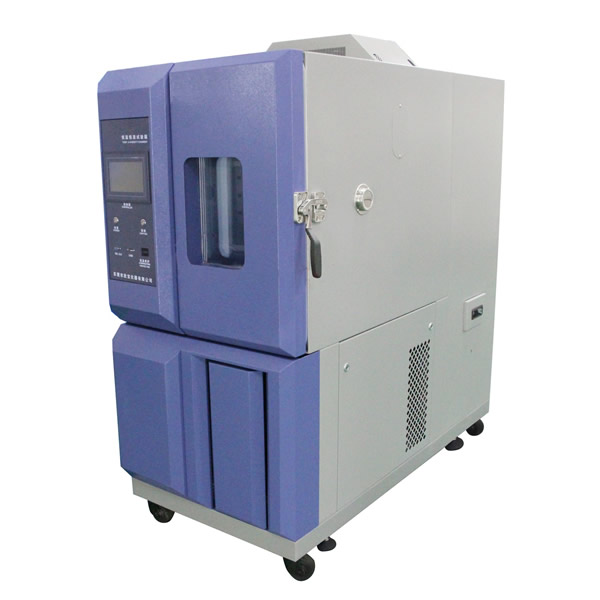

Programmable temperature and humidity chamber, also known as environmental chamber, it test the performance of heat, cold, dry, humidity resistance for material, it is suitable for test of electronic devices, instruments, plastic products, metal, food, chemical etc.
|
Programmable Temperature And Humidity Chamber THC Series Features: |
|
Meet test requirement as below : |
|
● GB/T2423.1-2001 TestA：Low temperature test method. |
|
● GB/T2423.2-2001 testB：High Temperature Test Method. |
|
● GB/T2423.3-1993 testCa:steady-state humid heat test. |
|
● GB/T2423.4-1993 testCb：cycle humid heat test. |
|
● GB10589 Technical Conditions of Low Temperature Test Chamber. |
|
● GB11158 Technical Conditions of High Temperature Test Chamber. |
|
● GB105861 Technical Conditions of Damp Heat Test Chamber. |
|
● GJB150.3-1986 High temperature test. |
|
● GJB150.4-1986 Low temperature test. |
|
● GJB150.9-1986 Humid heat test. |
|
1. Professional temperature and humidity control software with profile record function, do not need additional profiler. |
|
2. Controller has Preventing electromagnetic interference function with SGS certificate. |
|
3. The refrigerant flow is controlled by servo control valve to save electricity 30%. |
|
4. Machine has Defrosting function(defrost every 800 cycle, defrosting 2 hours each time, integration test can reach 25% energy saving ) |
|
5. With vacuum glass observation window, visual range W300×H350mm, directly monitor the test process effectively. |
|
6. Internal chamber is made of SUS 304 material. |
|
7. High quality parts ensures long service life of the machine, such as TECUMSEH compressor, Danfoss heat exchanger, ABB breaker etc. |
|
Programmable Temperature And Humidity Chamber THC Series Specification |
||||||
|
Model |
THC-80 |
THC-150 |
THC-225 |
THC-408 |
THC-800 |
THC-1000 |
|
WxHxD(mm)lnternal Dimensinos |
400x500x400 | 500x600x500 | 600x750x500 | 800x850x600 | 1000x1000x800 | 1000x1000x1000 |
|
WxHxD(mm)External Dimensinos |
600x1615x1205 |
700x1625x1530 |
800x1775x1530 |
1000x1925x1630 |
1200x2090x1830 |
1200x2090x2030 |
|
lnner chamber volume |
80L / 150L / 225L / 408L / 800L / 1000L | |||||
|
Temperature Range |
D type: -70℃～+150℃, B type: -40℃～+150℃ |
|||||
|
Humidity Range |
20%~98%R.H |
|||||
|
Temperature fluctuaton |
≤±0.5℃ |
|||||
|
Temperature offset |
≤±2.0℃ |
|||||
|
Temperature Rising/Falling Time |
< 5.0℃/minute/1.2℃/minute |
|||||
|
lnner and Outer Materials |
The inside case for SUS stainless steel mirror board,outside the box for iron plate |
|||||
|
Insulation Materials |
Resistant to high temperature,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
|
Cooling System |
Air.water cooling |
|||||
|
Protection Devices |
Fuse-free switch ,overloading protection switch for compressor,high and low coolant pressure protection switch,over-humidity and over-temperature protection switch,fuses,failure waming system | |||||
|
Control panel |
TH-900C | |||||
|
Compressor Brand |
French Tecumseh |
|||||
|
Power supply |
1Φ220VAC±10%50Hz for THC-80/150, others can be customized |
3Φ380VAC±10%50Hz for THC-225 /408/800/1000,others can be customized |
||||
