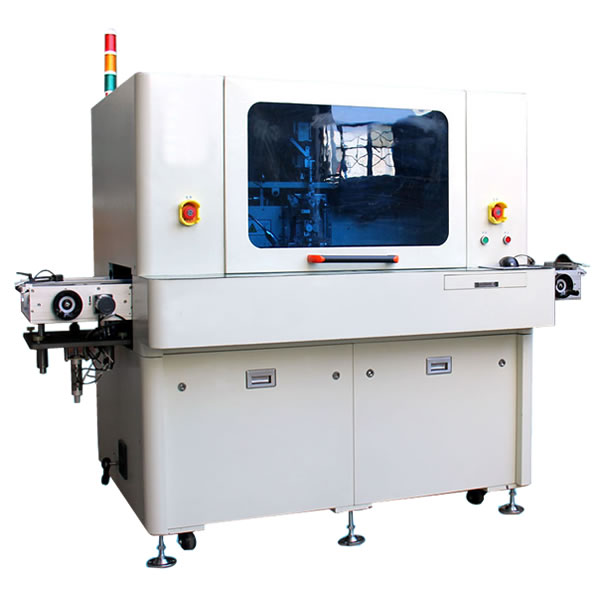

TI-750 can automatically feed and cut reel pins and insert the pin into the hole of PCB precisely and efficiently. advanced software based on Window OS make programming very easy.
Intelligent Pin Insertion System TI-750 Features: |
● X/Y platform adopts Panasonic servo and TBI ball screw and high quality guide rail. |
● the insertion height of the terminal is freely adjusted. Head can move up and down adjustment. |
● High-speed cam mechanis automatically feed and cut pin. |
● CCD visual system is adopted for PCB positioning. |
● Equipped with inline conveyor to realize full automatic process. |
| ● Win7 operating system, English operating interface, easy to operate. |
Intelligent Pin Insertion System TI-750 Specification: | ||||
Machine Specification | Technical Parameter | |||
PCB dimension | PCB size | maximum size | standard :L480 x W340mm | |
PCB transport direction | Left to right, conveying height: 900±20mm | |||
Insertion parameter | Insertion speed | Theratical 16000-19000 pcs /hour | ||
| Insertion accuracy | ±0.05mm | |||
| Insertion species | reel pins | |||
Vision system | Basler camera | For ficucial recogition | ||
Inserting head | Inserting head quantity | 1 inserting head | ||
Inserting platform | X/Y | Driven by servo motor | ||
Feeder | Feeder type | customized terminal reel feeder | ||
Operation | PC control | Industrial PC with software based on Windows 7 OS, English interface | ||
Utility | Working power supply | 1 Phase AC220V, 50HZ | ||
| Rated power | 2KW | |||
| Work pressure | 0.6 Mpa | |||
| Machine size | L2200*W1200*H1600mm | |||
| Machine weight | About 1400 KG | |||
Intelligent Pin Insertion System TI-750 includes: |
1 Inserting head with pin feeding system |
X/Y insertion platform. |
Top fiducial recognition vision system |
Industrial PC with display, mouse and keyboard. |
Conveying system with manual width adjustment. |
1year warranty. |
