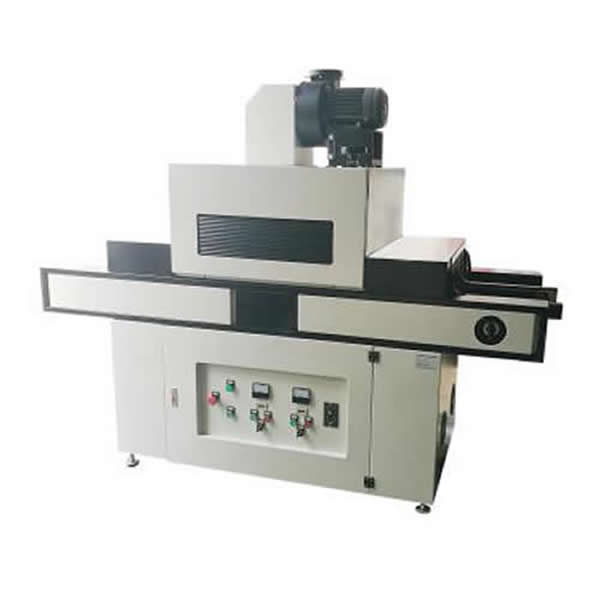

UV Curing Machine UVC-502 Series

init sku time:

UV Curing machine UVC-502 series is equipped with 2 groups of quality metal halid lamps which is suitable for conformal coating material curing.

Available Options

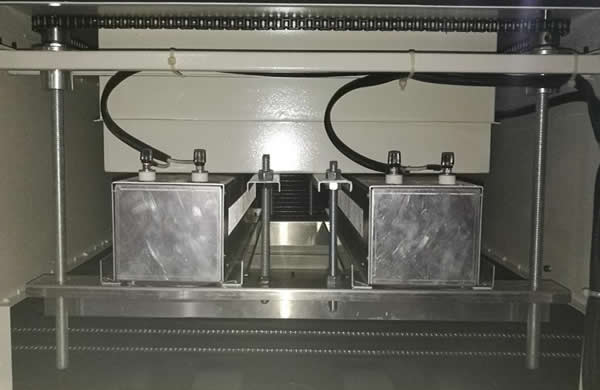

2 groups of metal halid lamps ,each lamp is controlled independently, lamp height is adjustable.

●   2 groups of metal halid lamps, each lamp is controlled independently, lamp height is adjustable.

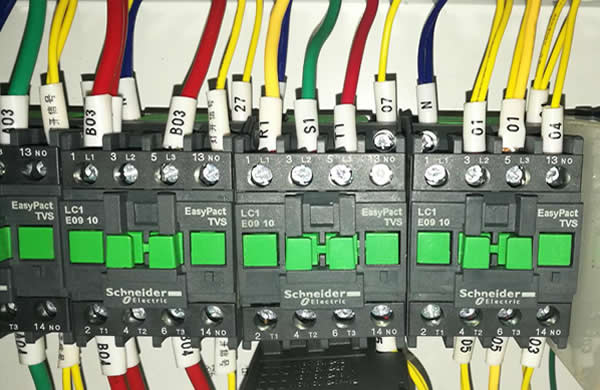

High quality electrical parts like Schneider contact ensure long service life of machine.

●   High quality electrical parts like Schneider contact ensure long service life of machine.

Teflon mesh belt conveyor for Offline mode UVC-502

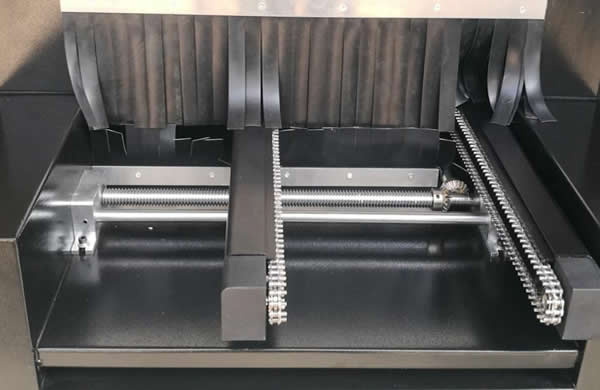

●   Teflon mesh belt conveyor for Offline mode UVC-502, Stainless steel pin chain conveyor for inline mode UVC-502I.

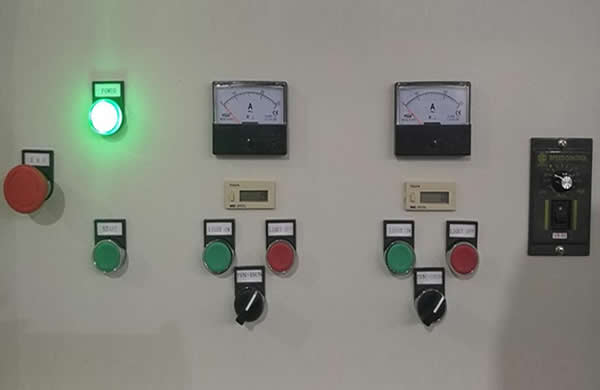

easy-operated control panel.

●   easy-operated control panel.

UV Curing Machine  UVC-502 Series Features:

1.   UV system adopt 2 groups of metal halid lamps, each lamp is controlled independently, lamp height is adjustable.

2.   With aluminium-magnesium alloy reflector, Ultraviolet light can be effectively reflected  more than 95%, CF vapor-plated quartz-glass and filtered IR, temperature is effectively reduced.

3.   Forced air cooling exhausting system is adopted for lamp cooling and  to reduce conveying mesh temperature.

4.   Offline mode UVC-502 with teflon mesh belt is easy for placing mutiple PCBs. Inline mode UVC-502I with stainless steel pin chain conveyor can be easily connected with selective coating machine for Inline production.

5.   High quality electrical parts are adopted to ensure long service life of machine.

UV Curing Machine UVC-502 Series Specifications

  Model

  UVC -502

  UVC-502I

  Overall dimension

  L2000*W665*H1800mm

  L2000*W790*H1800

  Net weight

  about 400Kg

  about 470Kg

  Power supply

  3 phase 380v 50hz

  3 phase 380v 50hz

  Conveyor speed

  0-3000mm/min

  0-3000mm/min

  General power

  12kw

  12kw

  Curing and controlling system

  lamp type

  metal halid lamp

  metal halid lamp

  lamp number

  2 pieces

  2 pieces

  curing zone length

  800mm

  800mm

  UV lamp

  4.8KW

  4.8KW

  Conveyor system

  Conveyor type

  Teflon mesh belt conveyor

  Stainless steel pin chain and guide rail conveyor

  Conveying height

  /

  900±20mm

  Conveying direction

  Left to right only

  Left to right only

  Max Product height

  100mm

  100mm

  Max Product width

  400mm

  400mm

  Cooling type

  cooling fan

  cooling fan

  Exhausting

  Exhausting volume

  28m3/min, connecting pipe diameter:150mm

  28m3/min, connecting pipe diameter:150mm

Standard configuration:

 ◎ UV curing machine UVC-502 series .

 ◎ USA made SYNNAD CO2 laser head

 ◎ Camera system

 ◎1 year parts warranty



Option:

Metal halid  lamp .
