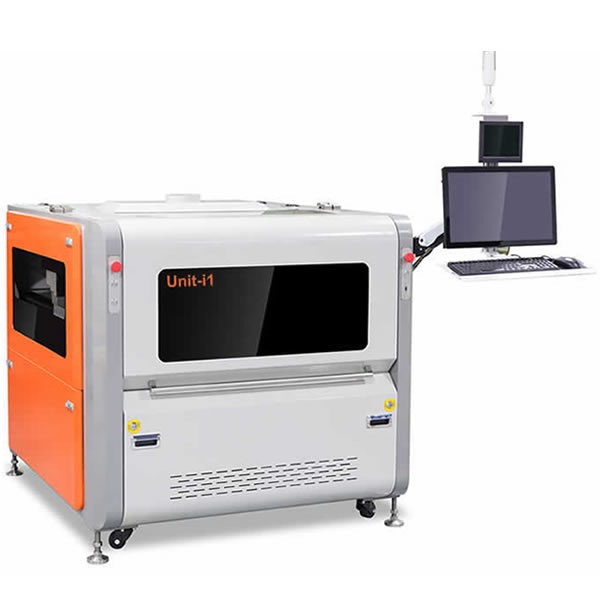

Unit-i1 inline 1 nozzle compact selective soldering

Unit-i1 is the latest generation selective with below feature:
All in one compact inline machine !!!

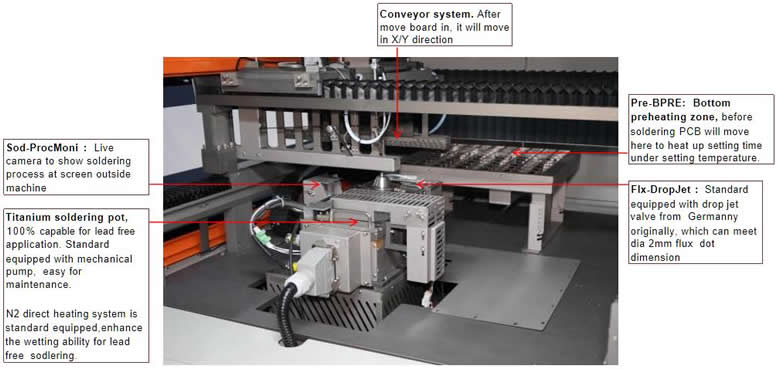

> One drop jet fluxer nozzle.

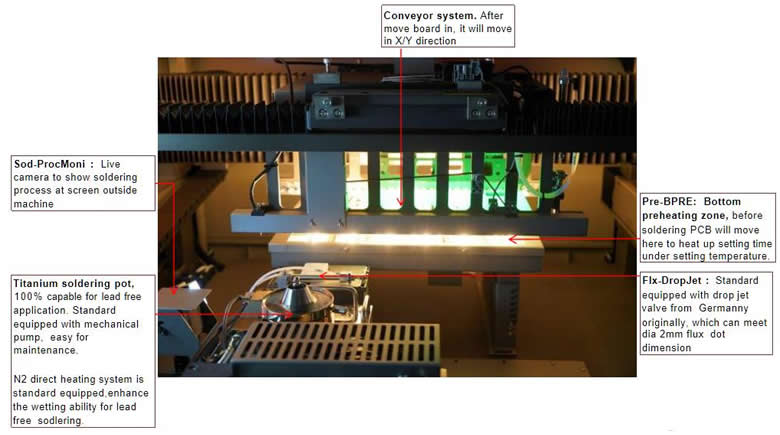

> Inbuilt with bottom IR preheating zone.
> Single solder pot with one wave tunnel.

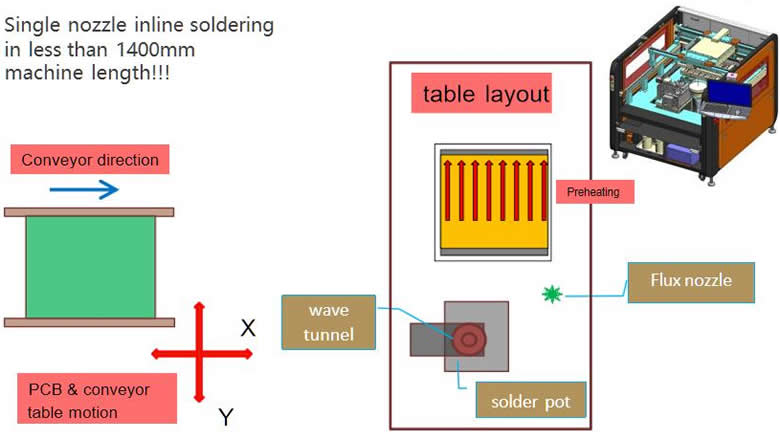

> Conveyor table is moving in X/Y direction under server motor. During fluxing & soldering, it will combine fluxer nozzle & solder pot’s Z direction motion to finish fluxing & soldering in XYZ direction motion.
> Standard equipped with wave height calibration.
> Windows 10 system English version.

Available Options

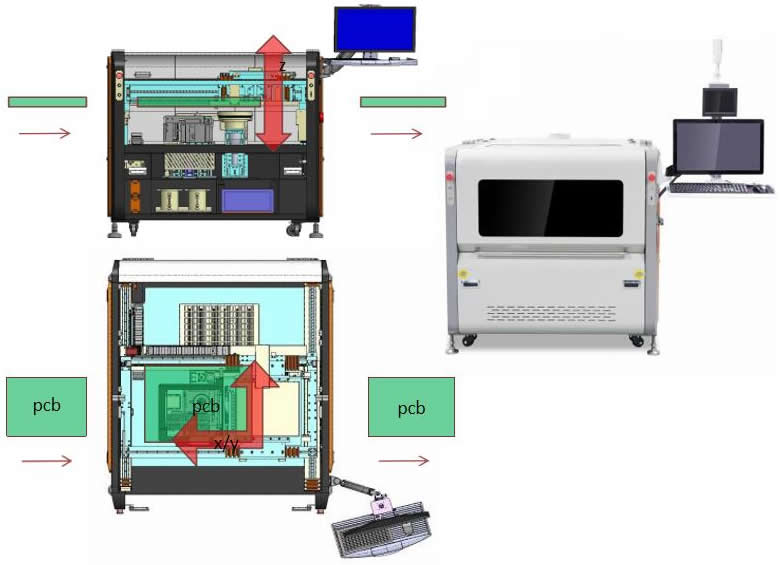

How to meet “All in one compact inline machine”

Compact inline Selective Soldering Machine

Unit-i1 Specifications
Item	Unit-i1
General
Operating power/Max power	4KW/6.5KW
PCB dimension	50x50---W350xL450mm
PCB top clearance PCB	70mm
PCB bottom clearance PCB	30mm
Max PCB & carrier load	3kgs

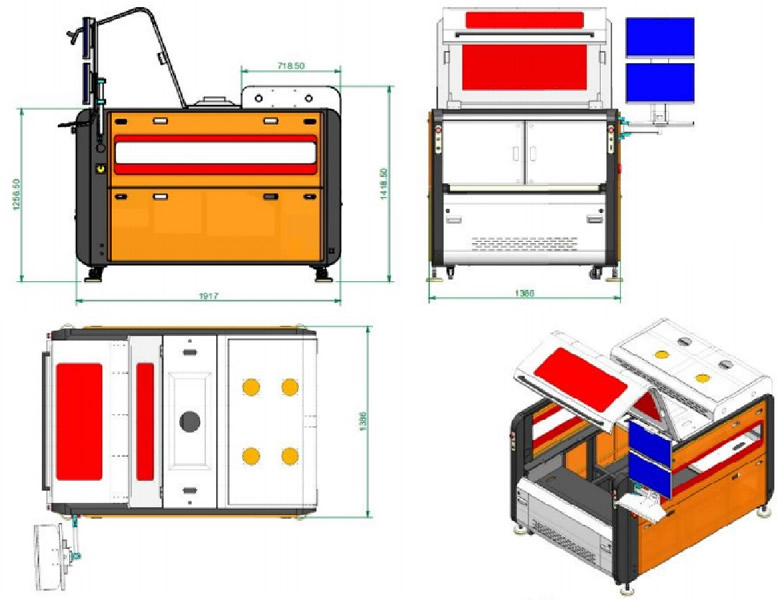

Machine dimension	1386(W)1917(D)1418(H)
Net weight	500KG
Power supply	1PH 220V
Air supply	3-5 bars
Exhausting required	200M3/h
Controlling System
Industrial PC	Yes
Typical Program Time	10 Minutes
Program method	Draw path in scanned picture of board
Controlling system	PC
PCB Robotic Platform
Axes of Motion	X, Y, Z
Motion Control	Servo motors for X,Y,Z
Position Accuracy	+ / - 0.05mm
Fluxing system
Flux Nozzle Type	drop jet nozzle
Flux nozzle number	1 set
Flux Capacity	1L x 1set

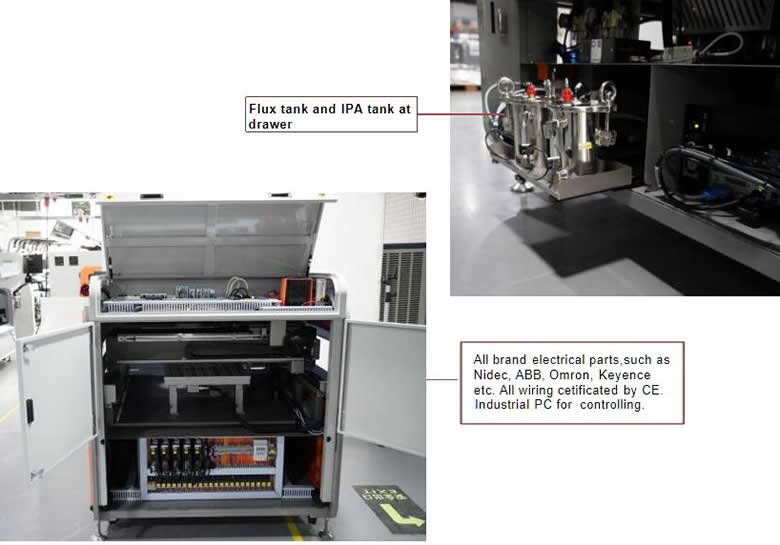

Flux Tank	Constant pressure tank
Cleaning tank	Constant pressure tank
Cleaning Capacity	1L x 1set
Preheat
Bottom preheating	2kw (bottom)
Soldering system
Solder Pot quantity	1
Solder Pot Capacity	15kgs
Wave tunnel & fountain	1 set
Wave nozzle number	1

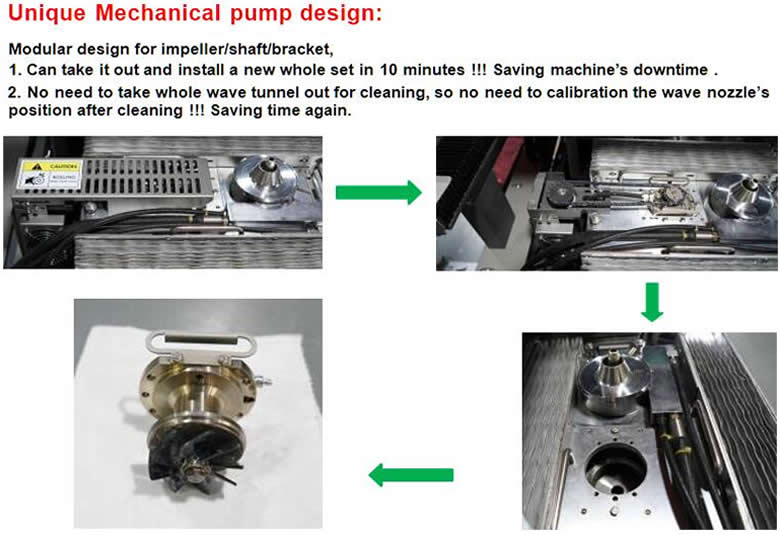

Pump type	Mechanical pump
Solder Temperature Control	PID
Heat-Up Time	About 30mins
Max Temperature	380 ℃
Solder Pot heater	1.5kw
Solder Nozzles
Mini Wave Nozzles	Dia 4, 6,8,10,12mm
Customized nozzle	Available
Nozzle Material	Proprietary Alloy
(N2) Inertion Management
N2 heater	Standard Equipped
N2 Temp PID Control Range	25 - 250 ℃
N2 Consumption per Nozzle	1.5m3/H (Recommend to connect with Selmate-4 N2 generator)
Required N2 Purity	>99.99%

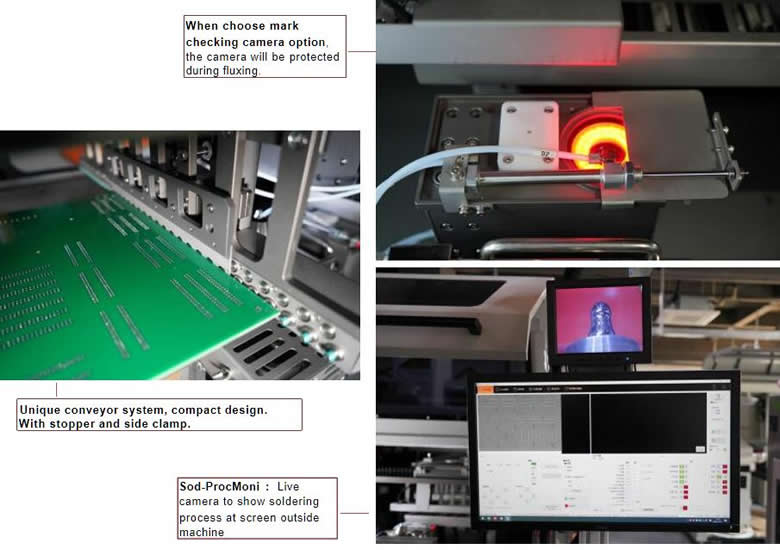

Conveyor System
Conveyor height	900+/-30mm
Conveyor type	mini shaft
Conveyor width adjustment	Auto by software
Conveyor stopper	yes
Conveyor side clamp	yes
SMEMA connection	yes
Alarm & monitoring
Air pressue monitoring	yes
flux level alarm	yes
cleaning solvent level alarm	yes
N2 flow monitoring	optional
N2 purity monitoring	optional
Solder process monitoring	yes
solder level alarm	yes
temperature alarm	yes
maintenance remind	yes
consumable parts life time count down	yes
Motion table limit alarm	yes

Software System

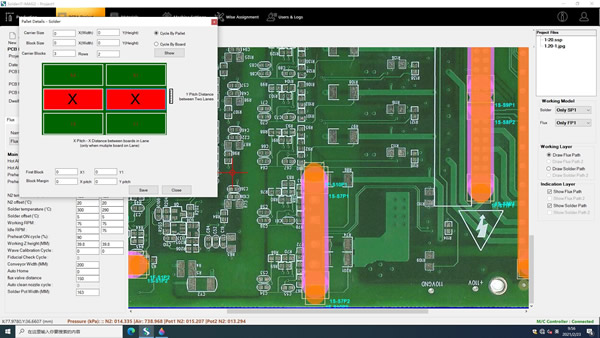

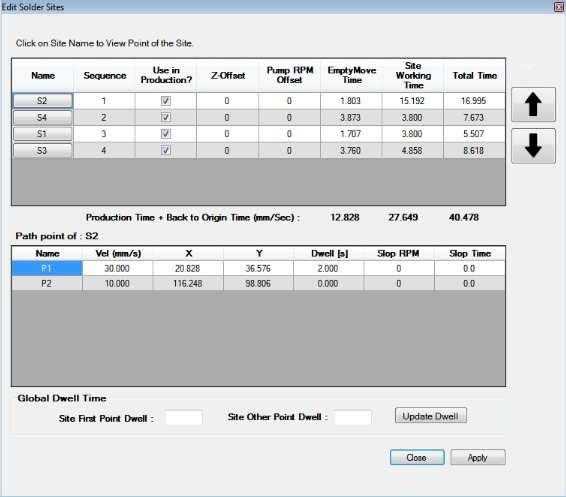

	Solder It ● “Solder It” is a Windows Professional 10 based software designed to create a solder program. It can easy POINT AND CLICK for fluxing path and soldering parameters.

	● All motion path can be editable, include soldering speed, empty move speed, dwell time, solder Z height, wave height, wave slop speed, solder leaving angle, N2 temperature etc. Meanwhile, any factors related to good soldering result, it will be monitored, for sample all air pressure, N2 pressure, N2 purity, N2 flow rate etc.

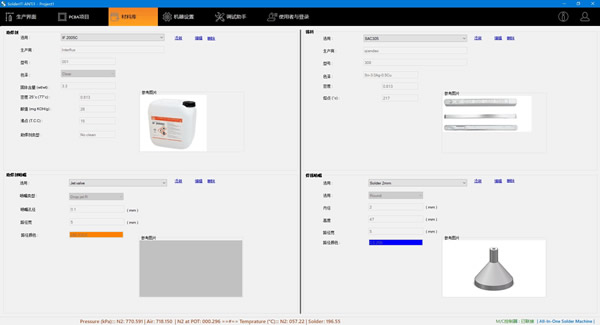

	● Date base information. Engineer can input all solder, flux, solder nozzle information to machine. When doing programming, they can add these information to programming of board. In future to produce the same board, it will be easy to get not only motion information, but also what flux/solder/nozzle was used before, easy to repeat soldering quality.

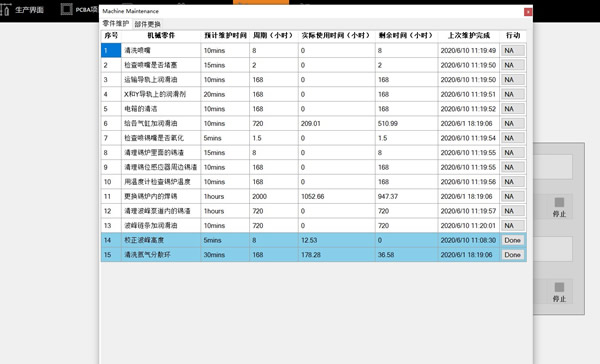

	● Pre-maintenance & consumable parts timing function. Can count down consumable parts’ life time, remind engineer to do necessary change in advance. Also, can remind for necessary maintenance of machine.

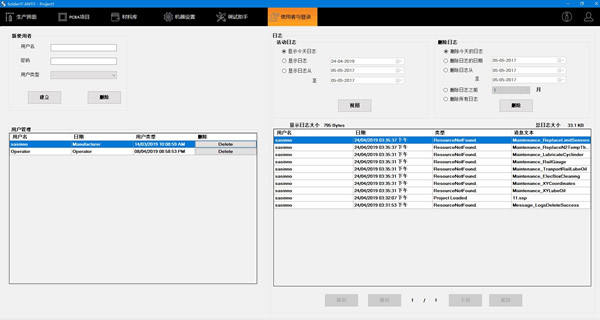

	● 3 Level logging rights and date log information records. Who use machine, when use machine, what unnormal happen on machine, all these will be recorded.
