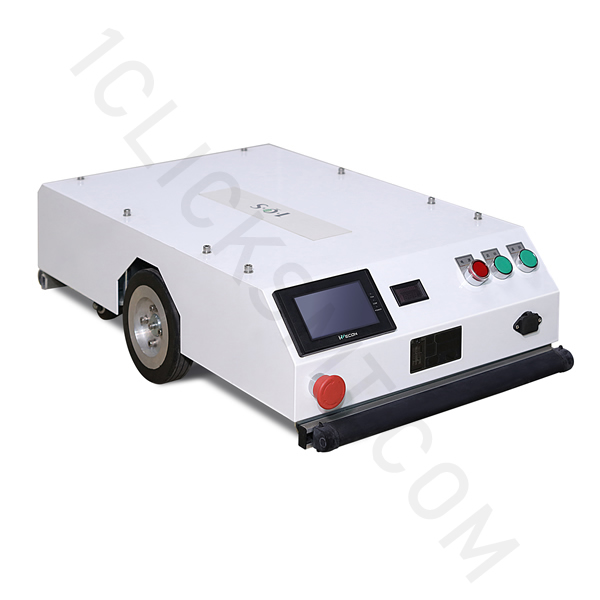

The Max load capacity of this automatic guide vehicle is 200kg. After loading the materials by hand or industrial robot, the AGV can automatically drive to the feeding point entire transport process bar and the location setting. The entire transport process needn't human intervention. The operation is simple and the AGV doesn't conflicts with other units in logistics system.
|

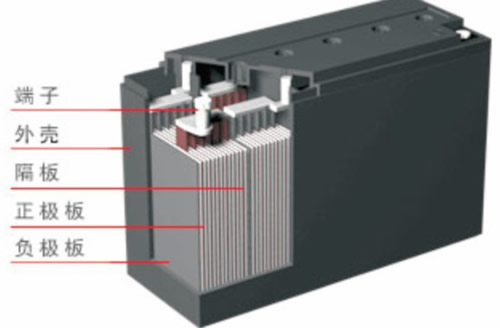

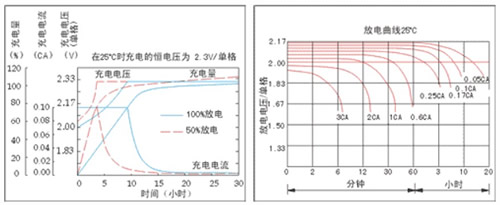

AGV battery system |
|
|
|
The basic information 1. Brand: CHILWEE 2. Specification: 24 v / 24 ah 3. Materials: high-capacity lead acid (maintenance free) rechargeable battery. 4. Capacity: 24 ah 5. Life time: continuous charge and discharge more than 1000 times (50% charge and discharge) |
|
|
Precautions 1. Battery compartment is well ventilated. 2. Charge and discharge process environment temperature is maintained at -15°C ~ 50°C 3. Avoid other heating units near the battery installation site. 4. Place the battery at the lowest point of the machine or on the rack to prevent unnecessary battery temperature increase 5. Avoid terminal short circuit; 6. Do not be exposed to open flames; 7. Storage battery cool and dry position; 8. If the battery is stored for a long period of time, charge and discharge it once every 6 months. |
|

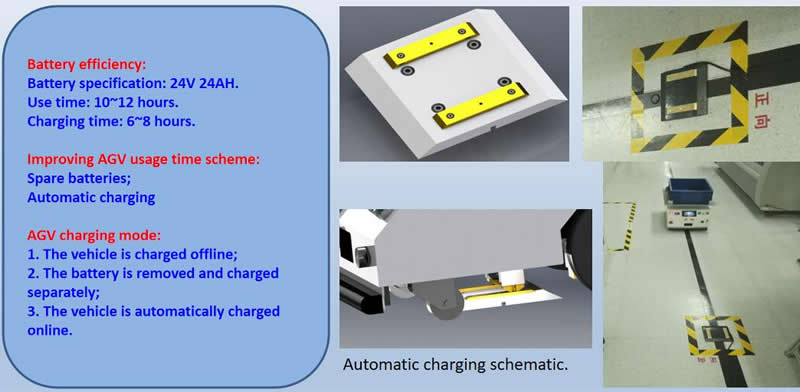

AGV Charging System： |
|
|
|
|

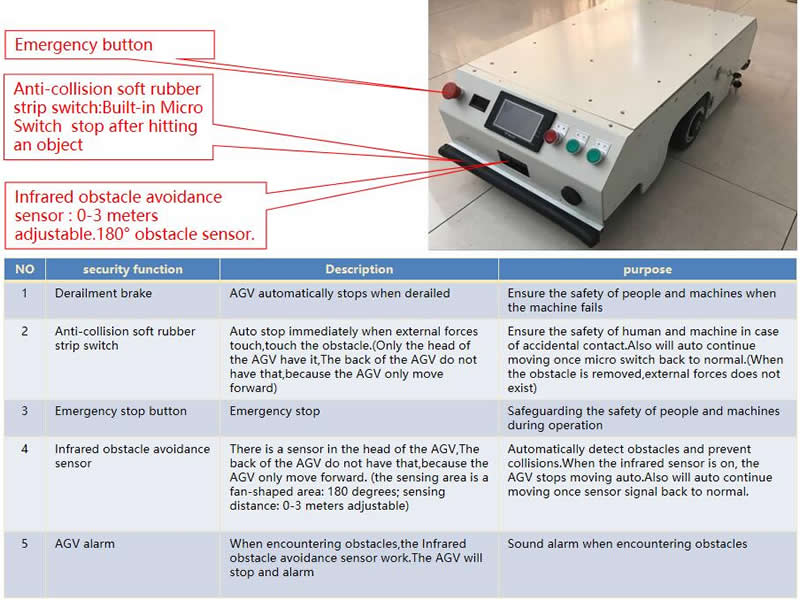

AGV security system： |
|
|
|
|

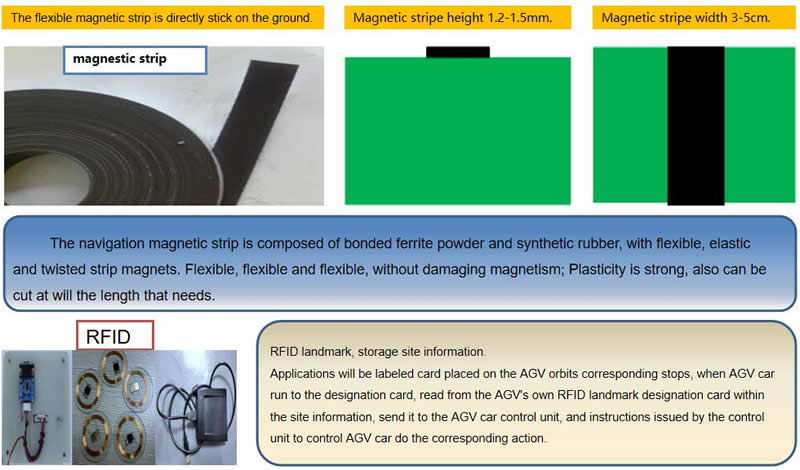

AGV Magnetic Strip Guide Accessories： |
|
|
|
|

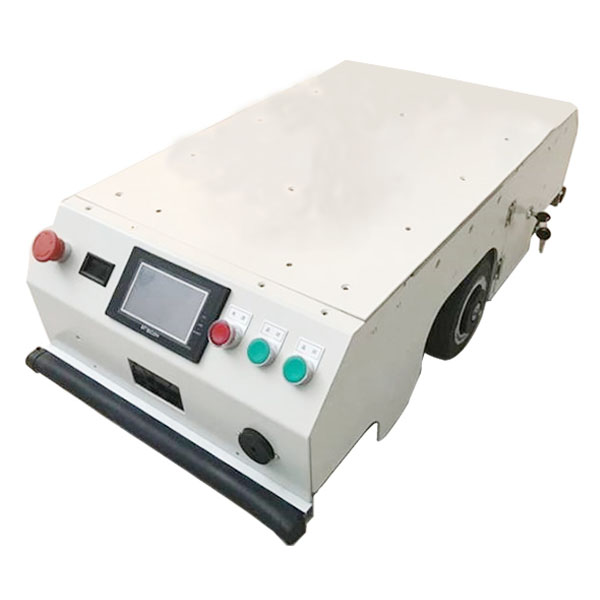

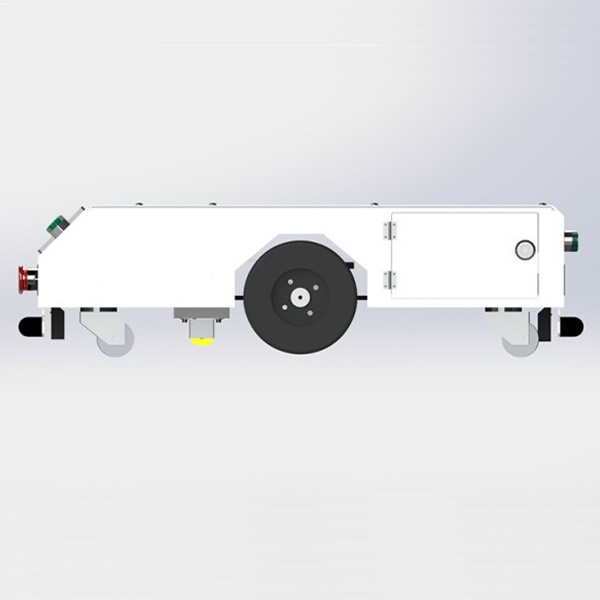

Magnetic Stripe Navigation AGV ZBX-200BF Specification: |
||
|
NO |
Name |
Specification |
|
1 |
Model and guide mode. |
ZBX-200BF, Backpacking AGV, magnetic stripe guidance, RFID landmark positioning. |
|
2 |
self weight |
80kg |
|
3 |
Walking direction |
Forward, linear regression, left and right steering, large range of steering function. |
|
4 |
Drive way |
Two rounds of differential drive. |
|
5 |
Drive motor |
Dc brushless servo motor. |
|
6 |
Automatic track search |
Search scope: AGV center as the dot, the radius of 200 mm, 90° rotating area |
|
7 |
Moving speed |
3m/min < speed < 25m/min |
|
8 |
Load capacity |
200kg |
|
9 |
Charging and endurance |
Offline charging, automatic charging optional. Once full charge can run for more than 8 hours |
|
10 |
Climbing ability |
2˚ |
|
11 |
Minimum turning radius |
>600mm |
|
12 |
Accuracy |
Linear guidance accuracy: ± 10mm, stop accuracy: ± 10mm. |
|
13 |
battery capacity |
DC24V, 33AH |
|
14 |
Safety sensing distance |
180° obstacle sensor, detection distance 0-3m adjustable, emergency brake 30±10mm |
|
15 |
Alarm method |
Music alarm |
|
16 |
Safety protection device |
Light sensor obstacle avoidance + mechanical anti-collision + emergency stop button triple insurance. |
|
17 |
Working environment |
Indoor temperature: - 10 ℃ to 50 ℃, relative humidity: 20% ~ 98% |
|
Magnetic Stripe Navigation AGV ZBX-200BF configuration: |
|
Optional configuration: |
|
1. Communication mode: Wireless communicate. |
|
2. Charging mode: auto-charging. |
