The Max load capacity of this automatic guide vehicle is 50kg. After loading the materials by hand or industrial robot, the AGV can automatically drive to the feeding point entire transport process bar and the location setting. The entire transport process needn't human intervention. The operation is simple and the AGV doesn't conflicts with other units in logistics system.
|

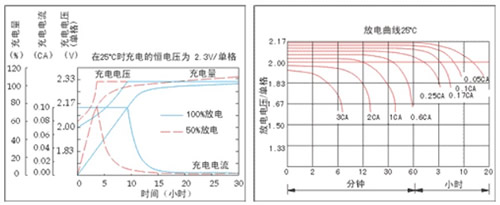

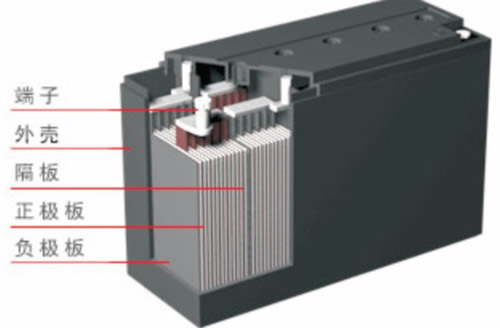

AGV battery system |
|
|
|
The basic information 1. Brand: CHILWEE 2. Specification: 24 v / 24 ah 3. Materials: high-capacity lead acid (maintenance free) rechargeable battery. 4. Capacity: 24 ah 5. Life time: continuous charge and discharge more than 1000 times (50% charge and discharge) |
|
|
Precautions 1. Battery compartment is well ventilated. 2. Charge and discharge process environment temperature is maintained at -15 °C ~ 50 °C 3. Avoid other heating units near the battery installation site. 4. Place the battery at the lowest point of the machine or on the rack to prevent unnecessary battery temperature increase 5. Avoid terminal short circuit; 6. Do not be exposed to open flames; 7. Storage battery cool and dry position; 8. If the battery is stored for a long period of time, charge and discharge it once every 6 months. |
|

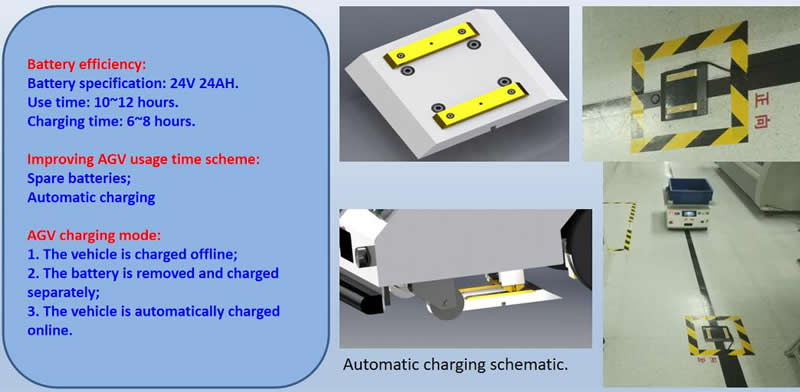

AGV Charging System： |
|
|
|
|

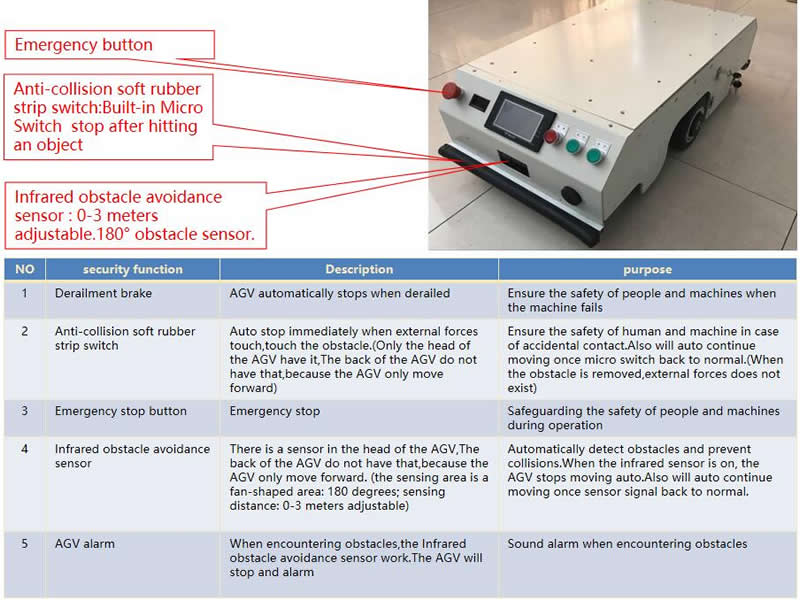

AGV security system： |
|
|
|
|

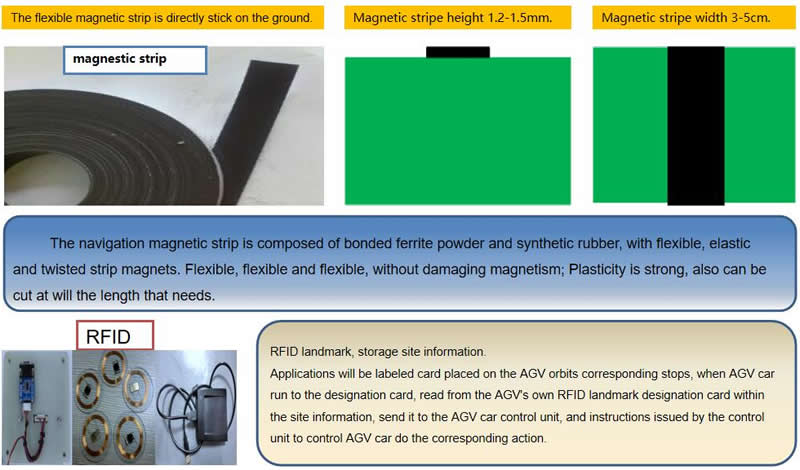

AGV Magnetic Strip Guide Accessories： |
|
|
|
|

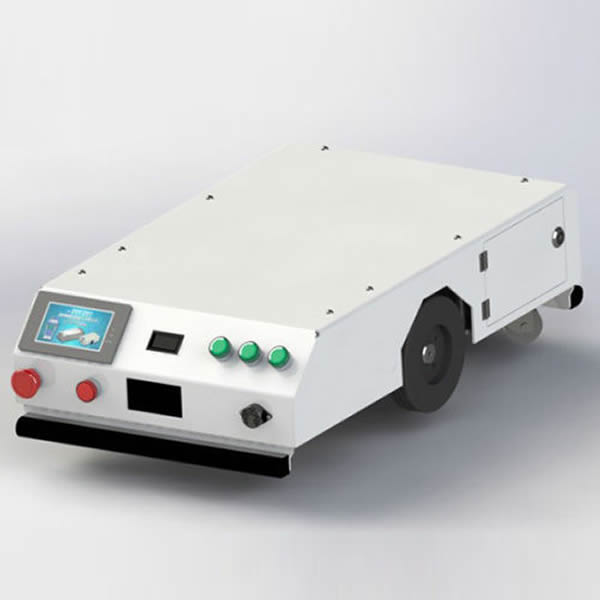

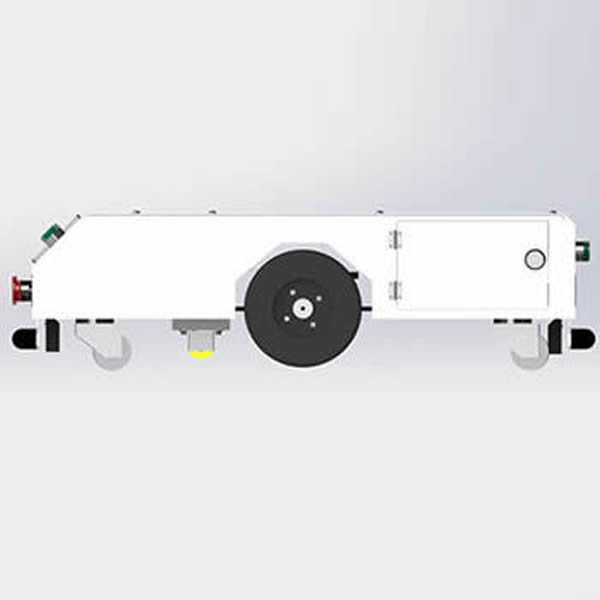

Automatic Guided Vehicle ZBX-50BF Specification |
|
|
Model |
ZBX-50BF |
|
Appearance |
715mm*426mm*212mm |
|
Voltage |
220V/50HZ |
|
Load capacity |
50kg |
|
Running speed |
0-45m/min(adjustable) |
|
Navigation mode |
Magnetic strip |
|
Min turning radius |
400mm |
|
Positioning accuracy |
±10mm |
|
Security protection mode |
Laser obstacle sensor, Mechanical anti-collision switch, Emergency stop switch |
|
Drive system |
Two-wheel different speed driving |
|
Climbing ability |
3-5degree |
|
Interactive interface |
Touch screen |
|
Working hours |
9-12hours |
|
Charging time |
4hours |
|
Charging mode |
Manual charging(standard),automatic charging (optional) |
|
Battery life |
Can be re-used more than 500 times |
|
Automatic Guided Vehicle ZBX-50BF configuration: |
|
Optional configuration: |
|
1. Communication mode: Wireless communicate. |
|
2. Charging mode: auto-charging. |
