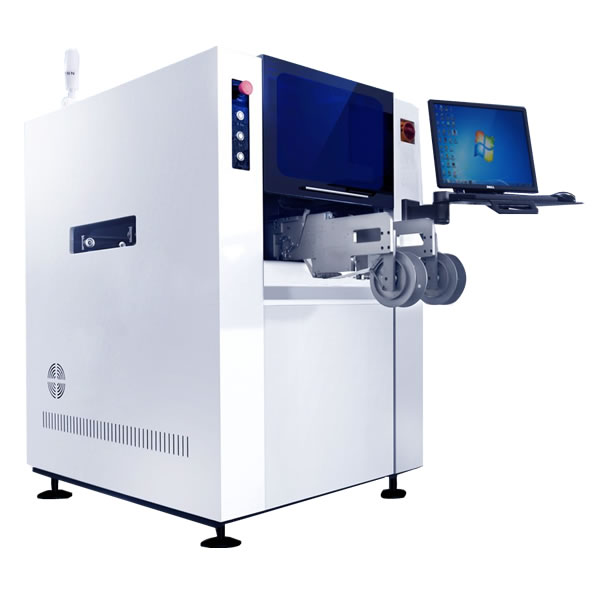

Automatic Labeling Machine LAB-400S

init sku time:

Inline labeling system, conveyor with standard SMEMA connector.
Max Product size: 400mm x 400mm
X/Y axis driven by servo motor.
Top CCD for Fiducial recognition.
Bottom CCD to correct lable position.
2 Labeling head
Industrial PC, full English interface with Windows 7 OS.

Available Options

High rigidity welding frame to ensure high speed and stable operation.

●   High rigidity welding frame to ensure high speed and stable operation.

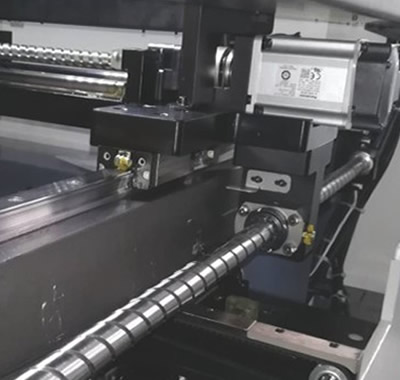

X/Y axis driven by servo motor with THK guide rail, repeatability can reach ±0.01mm.

●   X/Y axis driven by servo motor with THK guide rail, repeatability can reach ±0.01mm.

●   Labeling accuracy: ±0.1mm.

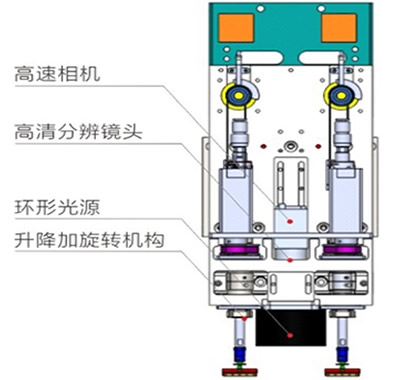

2 Lableing head with rotation mechanism.

●   2 Lableing head with rotation mechanism.

●   Top camera to recognize fiducail and correct offset.

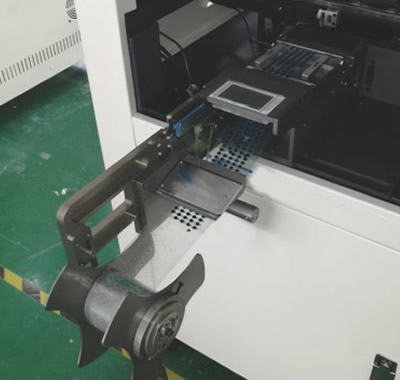

High precision electronic feeder for various label with precise label stripping and feeding.

●   High precision electronic feeder for various label with precise label stripping and feeding.

Automatic Labeling Machine LAB-400S Features:

●   Inline labeling system, conveyor with standard SMEMA connector.

●   Max Product size: 400mmx400mm.

●   X/Y axis driven by servo motor.

●   Top CCD for Fiducial recognition.

●   Bottom CCD to correct lable position.

●   2 Labeling head.

●   Industrial PC ,full English interface with Windows 7 OS.

Automatic Labeling Machine LAB-400S specification:

  Model

  LAB-400S

  Overall Dimension

   L*W*H   Approx 900*1200*1500cm
  Weight   around 800kg

  PCB Parameter

   PCB size   Min:60mm*60mmMax:400mm*400mm
  PCB thickness   0.5-3.0mm

  Operation System

  OS

   Windows 7

  Vision System

  Top CCD   Fiducial recognition
  Bottom CCD*1set   Correct X/Y/R labeling offset

  Labeling accuracy

  ±0.1 mm

  Labeling speed

  approx 3000 CPH

  Lable size

  L5mm*W5mm-L60mm*W30mm

  Labeling head

  Double labeling head

  Conveyor

  Auto width adjustment
  SMEMA connector
  Conveying height: 900mm±20mm, Conveying direction: L to R, or R to L

  Feeder Quantity

  Standard 1 set

  Power supply

  1P, 220V, 50/60Hz

  Air pressure

  0.6Mpa

  Power

  Max 2 KW
