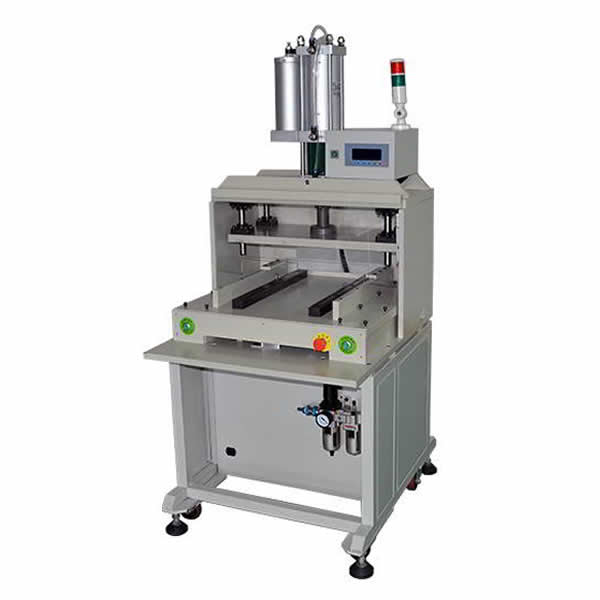

Punch depanelling machine PD-3T/10T
FPC Punching PCB Depaneller PD-3T separates FPCs or PCBS with high efficiency Minimizing stress to boards,components or solder joints, it can use mutiple dies, dies replacement and operation is very esay, it is suited for high-volume production.
Available Options
Punch depanelling machine PD-3T/10T Features
|
● Mutiple dies can be easily changed. |
|
● Compact, solid structure with easy and safe operation. |
|
● Extremely high efficiency to cut semi-finished PCB and FPC. |
|
● Customized die is available according to provided PCB gerber file. |
|
● Cutter's lifetime of die is average 300,000 times and cutter is changeable. |
|
● Lower die moves in and out automatically for easy discharge of product which may drop into the drawer. |
|
● Minimize the internal stress generated during punching, avoids microcracking of solder joints and delamination of PCBs. |
|
Punch Depaneling router WZ-P3T/10T/10TL Specification |
|||
|
Model |
WZ-P10TL | WZ-P10T | WZ-P3T |
|
Punch power |
10T |
10T |
3T |
|
Punch Max.height |
108mm |
108mm |
120mm |
|
Working area |
460X330mm |
330X220mmpressure |
330X220mm |
|
Force transmission |
Air-liquid super charged |
||
|
Working mode |
Manual feeding, Lower die moves in and out automatically |
||
|
Starting mode |
Manual control |
||
|
Punch speed |
20s/cycle |
||
|
Product Size |
830x830x1230mm (Benchtop） |
720x700x1230mm (Benchtop） |
820x730x1760mm（Vertical type） |
|
Weight |
650kgs |
580kgs |
460kgs |
