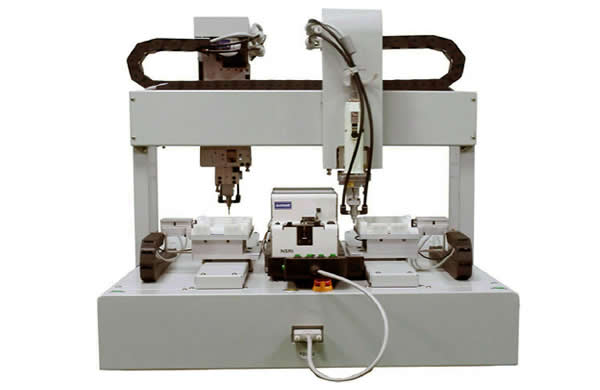

SY-S22T combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2 different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production.
|
|
|
|
|
High quality Japan made HIOS high quality screw driver and screw feeder (optional). |
|
|
Customized fixture is available to variety of products. |
|

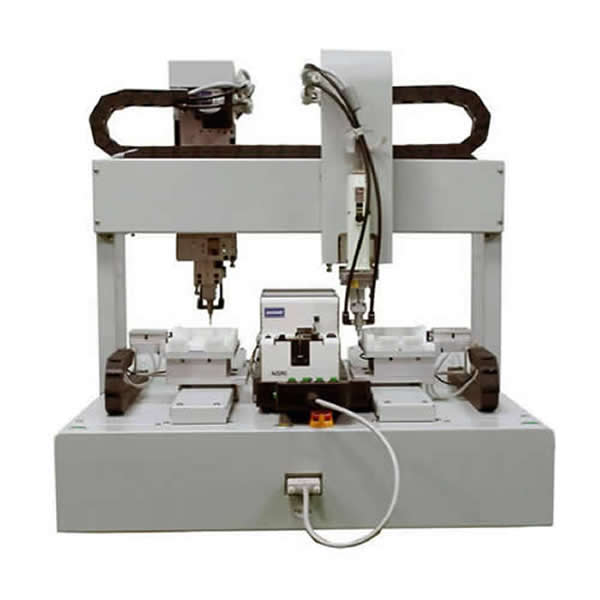

Automatic Screw Driving Machine SY-S22T Description: |
|
1. SY-S22T combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production. |
|
2. High quality 6 axis(X1/X2/Y1/Y2/Z1/Z2) robot with step motor control ensures machine run stably. |
|
3. PLC and touch screen control system with full english interface, easy to operate. |
|
4. Equipped with high quality Japan made HIOS screw driver and screw feeder (optional). |
|

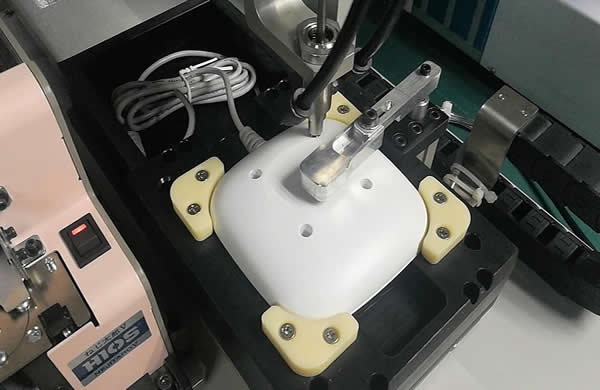

5. Customized fixture is available to variety of products. |
|
6. Support placing products on the front side of machine and taking out on back side of machine. |
|
7. Screw missing detection and loose screw detection are standard configuration. |
|
8. Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend. |
|
Automatic Screw Driving Machine SY-S22T Specification: |
||
|
Model |
SY-S12T |
SY-S22T |
|
Screw driving head quantity |
1 |
2 |
|
Work table quantity |
2 |
2 |
|
Work table size(mm) |
W120mm*D200mm*H60 |
W180mm*D500mm*H60 |
|
Drive system |
X/Y/Z axis step motor control |
X/Y/Z axis step motor control |
|
Positioning Repeatability |
±0.05mm |
±0.05mm |
|
Screw picking method |
vaccum picking |
vaccum picking |
|
Screw driving speed |
max 1.5 pcs/sec |
max 1.5 pcs/sec |
|
Power |
300W |
400W |
|
Power Supply |
1P, AC110V/220V, 50/60 HZ |
1P, AC110V/220V, 50/60 HZ |
|
Machine size(mm) |
W550mm*D650mm*H650mm |
W650mm*D930mm*H700mm |
|
Weight |
60KG |
100KG |
|
air pressure requirement |
0.4-0.7Mpa |
0.4-0.7Mpa |
|
Specification of screws for standard Quicher screw feeder |
One type of screw from M1.0 to M3.0(Others can be customized) |
One type of screw from M1.0 to M3.0(Others can be customized) |
|
Applicable Screw Length(under head) |
Up to 20mm |
Up to 20mm |
|
Standard HIOS screw driver |
Standard Torque is 1~5kgf.cm (0.1~0.5N.M) .Others can be customized | Standard Torque is 1~5kgf.cm (0.1~0.5N.M) .Others can be customized |
|
Automatic Screw Driving Machine SY-S12 Series configuration: |
|
Standard configuration: |
|
● Automatic screw driving machine SY-S22T |
|
● 6 aix step motor and driving system |
|

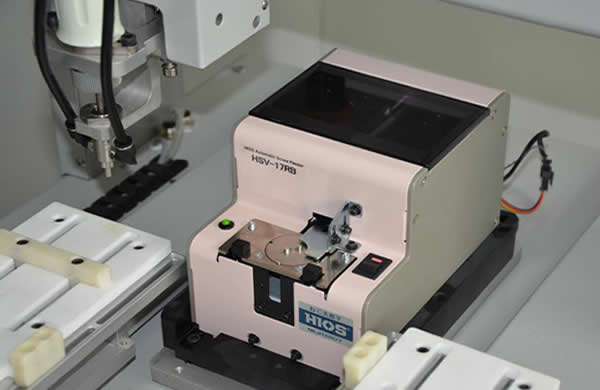

● Quicher screw feeder*2set(One type of screw from M1.0 to M3.0,Others can be customized) |
|
● HIOS screw driver *2set (Standard is CL-2000 or CL-3000 or CL-4000 two sets;Others can be customized) |
|
● 1 year parts warranty |
|
Optional configuration: |
|
● A axis for screws needed to be driven on different plane height. |
|
● Screw floating height detecting system to ensures each screw is driven to bottom and tightened. |
|
● Customized fixture |
