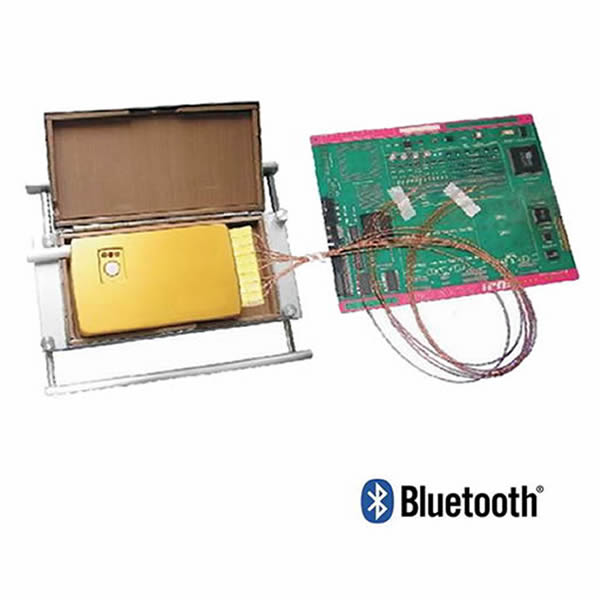

HC-8 Bluetooth 8 Channel Reflow Profiler is an extremely useful tool for tuning the soldering process of SMT boards. By examining the graphic output of the unit's software, operators can adjust oven parameters to best optimize production and ensure best product quality.
|
|
HC Series profiler uses four k-type thermocouples |
|
|
Thermal Profiler Data is downloaded from the recorder to a laptop or desktop PC via Bluetooth wireless transmission. Even wireless transmission is interrupted, USB cable can be used to read the data.The system's PlotAnalyze thermal profiling software runs on Windows® XP or later operating systems and manages all communication with the recorder. The software also graphically displays temperatures versus time on the operator's monitor, Each channel is drawn in a different color. Recorded data may be printed or stored on a hard disk for quick recall. |
HC-8 Bluetooth 8 Channel Reflow Profiler Feature
|
● Sandwich-like high thermal insulation. |
|
● Simple and practical operating interface. |
|
● Good, stable and precise measurement. |
|
● Far-distance Bluetooth data transmission. |
|

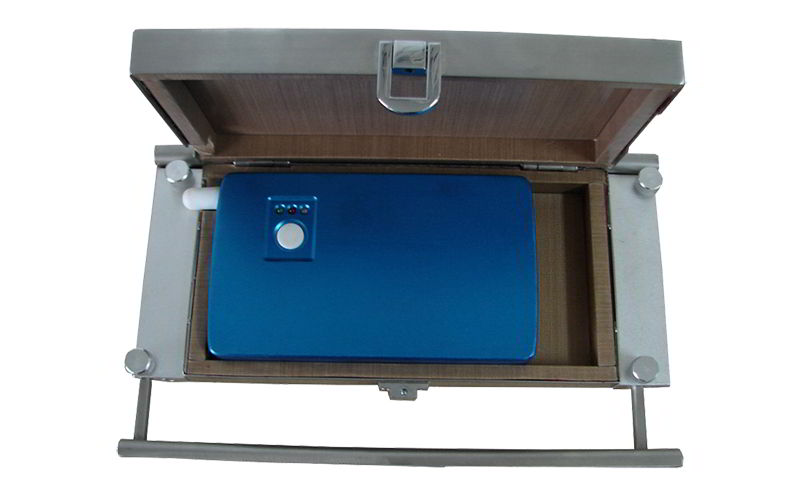

● Integrated heat preservation box and vehicle. |
|

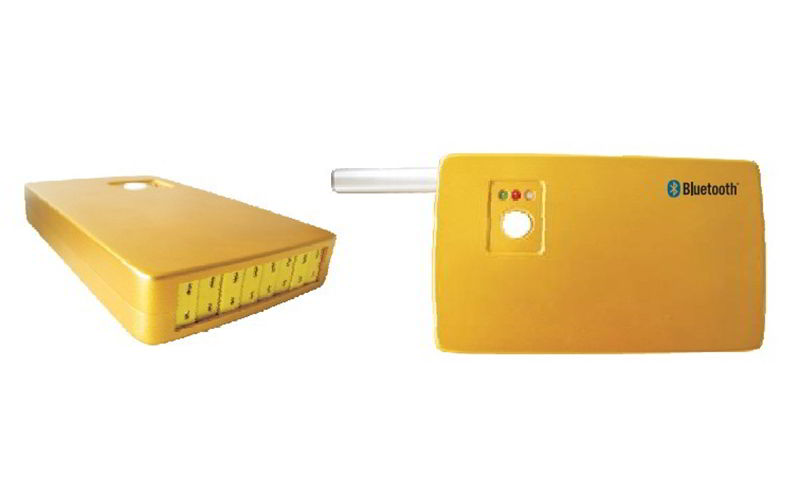

● Aluminum-alloy housing for fast heat dissipation. |
|
● Excellent workmanship and exquisite appearance. |
|
● CLASS 1 industrial-purpose Bluetooth data transmission. |
|
● Large-capacity anti-explosion Lithium batteries which can eliminate memory effect. |
Software functions
|
● Tolerance curves. |
|
● Data export (to Excel format). |
|
● Report print (optional ranges and items). |
|
● Grid fractionization and curve zoom-in/zoom-out. |
|
● Highest temperature and temperatures at anytime. |
|
● Comparison between two groups of temperature curves. |
|
● Company name, product description and remarks can be entered. |
|
● Temperature sample points’ positions and names and PCB schemes. |
|
● Horizontal temperature line, vertical timing line and the time between them. |
| HC-8 - Specifications | |
|
Model |
HC8 Bluetooth 8 Channel |
|
Thermo-couple |
K type |
|
Data transmission |
Bluetooth transmission/real time monitoring (Based on transmission status) |
|
Measurement precision |
±1℃ |
|
Measurement range |
0-500℃ |
|
Sampling frequency |
Settable, 0.0625s~15.9375s |
|
Records |
135000 |
|
Voltage |
3V |
|
Discrimination |
0.1℃ |
|
Dimensions |
142(L)×84(W) ×21(H)mm (Not including antenna) |
|
Software |
Simplified Chinese/Traditional Chinese/English |
|
Battery |
Anti-explosion Lithium battery, 3.2V，800mAH |
|
Over-heat protection |
Heat resistance of 100℃, 75℃ automatic over-heat protection device |
| Bluetooth module specifications | |
|
Power |
20 dBm |
|
Transmission rate |
115200 bps |
|
Transmission distance |
100m (in an open area) |
|
Output impedance |
60 ohm |
|
Discrimination |
-90 dBm |
|
Frequency |
2.4 GHz |
HC-8 Bluetooth 8 Channel Reflow Profiler Include

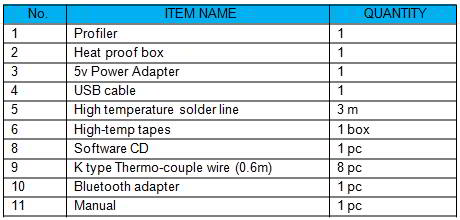

HC-8 Configurations (Standard Included):
