Versatile, affordable drying system suited to a number of applications like PCB baking & drying. (Bigger capacity than dektop series)

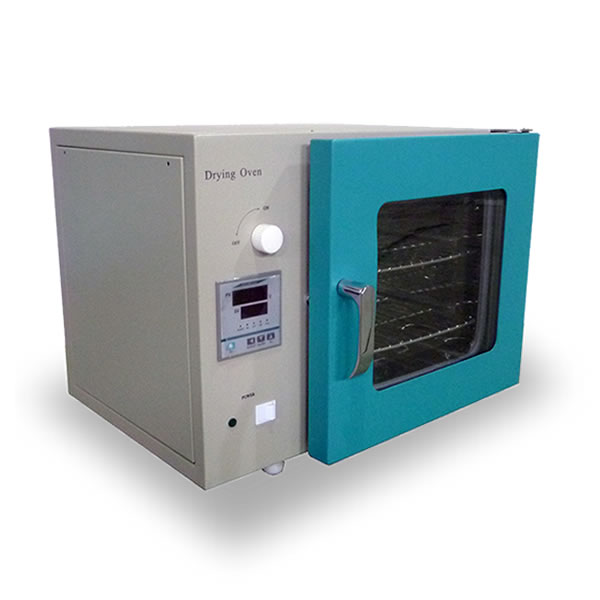

Desktop Drying Oven series Feature
|
● Polished stainless-steel chamber. |
|
● Latest PID controller. |
|
● Uniform distribution of air temperature. |
|
● Forced-air convection. |
|
● Independent temperature-limiting alarm system ensures experiments run safely. (option) |
|
● RS485 connector is option which can connect computer to record the parameters and the variations of temperature. (option) |
|
● Forced-air convection system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform distribution of temperature in chamber. |
|
Desktop Drying Oven - Specifications |
||||
|
Model |
SX-9023A |
SX-9053A |
SX-9123A |
SX-9203A |
|
Temperature Range |
RT+10~250℃, RT stands for room temperature. |
|||
|
Temperature Control |
0.1℃ |
|||
|
Temperature Stability |
±0.5℃ |
|||
|
Electrical Requirements |
220V 50Hz |
|||
|
Input Power |
500W |
750W |
1500W |
2000W |
|
W×D×H Interior Dimension（mm） |
300*300*270 |
420*350*350 |
550*350*550 |
600*550*600 |
|
W×D×H Overall Dimension（mm） |
500*450*440 |
710*520*520 |
840*530*730 |
890*730*780 |
|
Shelves per Chamber(Normal) |
2 pcs |
|||
|
Timing Range （mm） |
1-9999min |
|||
|
Characteristic |
Digital display, microcomputer controller, double tempered-glass observation window, adjustable air flow of both air inlet and outlet, mirror-surface stainless-steel inner tank, four circular corners, optional smart programmable temperature controller, model without “A” post-fixed means galvanized-steel tank |
|||
