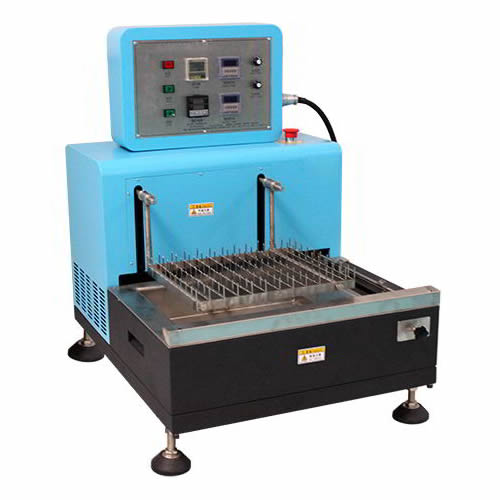

Independent control box equipped with preheat funciton to simulate wave soldering based on ADS-3530 enrich the machine's funciton and make the machine more practical.
| The Auto-Dip 3530G includes the standard pin-type PCB holder that allows multi-board processing with easy loading/unloading. |
| Stainless steel solder pot; Titaniium solder pot is optional. |

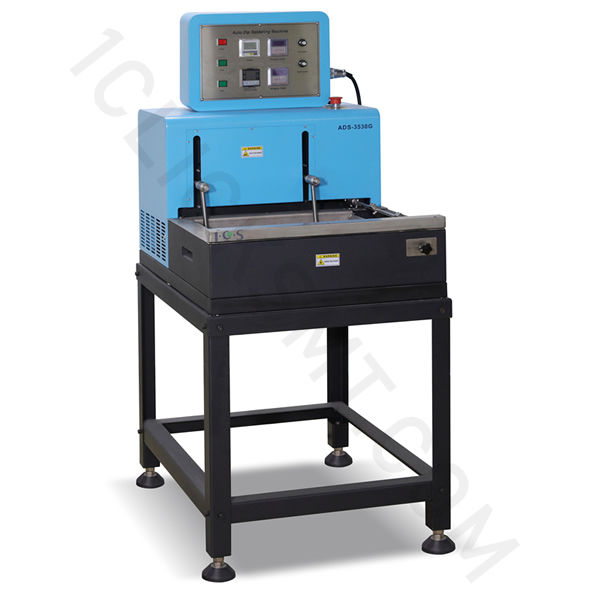

| Pedestal is optional: L600*W750*H677 |

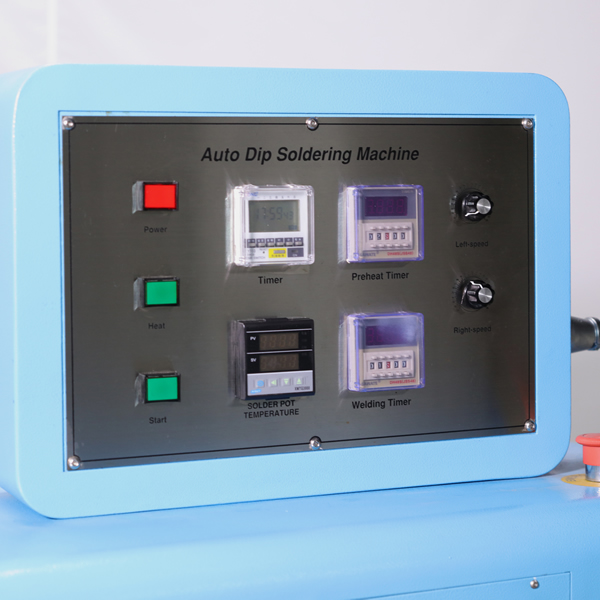

| Independent, dial-adjustable, speed controls for left and right elevator motors control dipping angle and speed to simulate wave soldering. Multi-day, 24-hr. timer for automatic startup; Digtal timer for setting solder dwell time; Digital PID solder pot temperature controller for lead-free SAC or SnPb solders. Adjustable preheat timer to simulate wave soldering. |

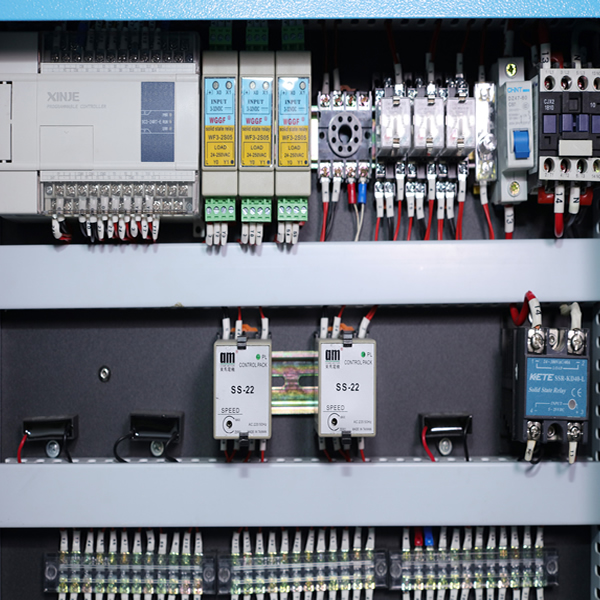

| PLC control, CE certificated wiring. |
Auto Dip Soldering Machine ADS-3530G Features

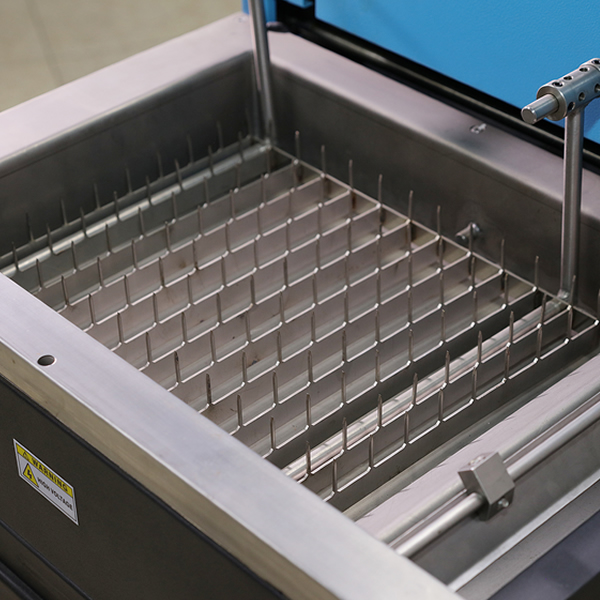

● Pin-type PCB holder for boards from 60 x 60mm to 350 x 300mm; no special fixturing or pallets needed. special fixturing or pallets needed. |
● Multiple small boards placed on 350 x 300mm pin type holder can be processed simultaneously. allow random placement of PCBs and assemblies in loading area. |
● Independent, dial-adjustable, speed controls for left and right elevator motors control dipping angle and speed to simulate wave soldering. |
● Digital timer for setting solder dwell time; typically 3-5 seconds. |
● Stainless steel solder pot; holds approx. 70 Kg (154 lbs.) lead-free SAC; approx. 85 Kg (187 lbs.) SnPb Titaniium solder pot is optional. |
● Digital PID solder pot temperature controller for lead-free SAC or SnPb solders. |
● Automatic dross skimmer and collection trough; cycles prior to dip soldering function. |
● Multi-day, 24-hr. timer for automatic startup; allows melting of solder and heating to desired solder bath temperature prior to production. |
● Foot pedal for hands-free actuation of soldering cycle. |
●Dia-adjustable preheat timer to simulate wave soldering. |
● Optional spray fluxer accessory available. |
|
Auto Dip Soldering Machine ADS-3530G Include
1 PC. ADS-3530G Auto Dip Soldering Machine with:
◎ PCB holder for boards from 60x60mm to 350x300mm
◎ Dial adjustable dip speed/dip angle controls
◎ Digital timer for solder dwell time
◎ SUS solder pot, approx. 70 Kg (154 lbs.) Lead-Free SAC
◎ Digital PID solder pot temperature controller
◎ Automatic dross skimmer and collection trough
◎ Multi-day, 24-hr. timer for automatic startup
◎ Foot pedal actuation
◎ 1-Year Warranty On All Parts

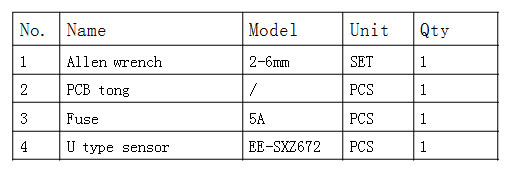

Free Parts list :
