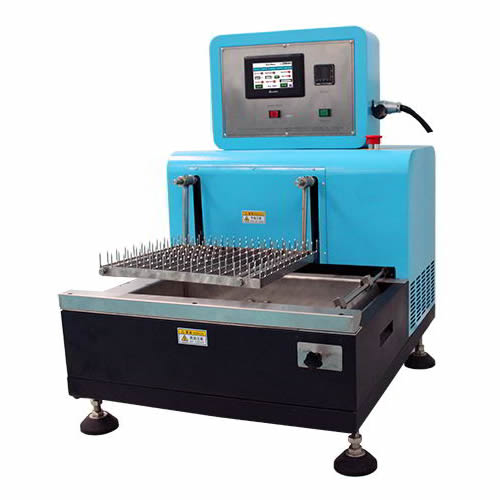

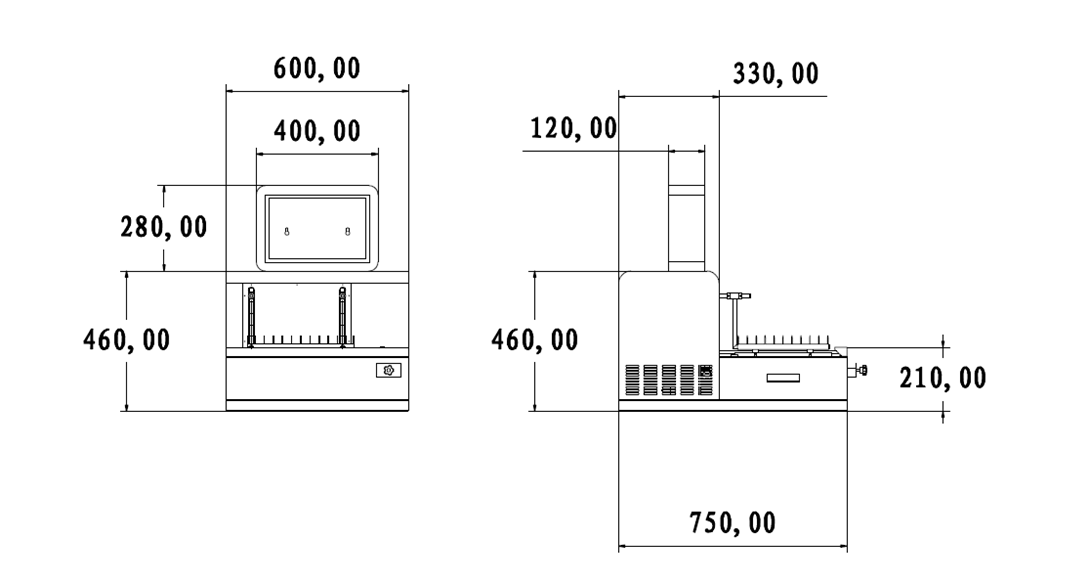

Auto Dip Soldering Machine ADS-3530T

init sku time:

Independent control box equipped with PLC、touch screen, step motor and it's driving system, Machine can precisely control the dip soldering speed、angle and time. electronic assemblers who wish to automate their manual soldering operations, but need features like programmable preheat and positive control of dip height, will find the ADS- 3530T an excellent choice.

Available Options




The Auto-Dip 3530T includes the standard pin-type PCB holder that allows multi-board processing with easy loading/unloading.

The finger type holder is choosable.JPG



The finger type holder is choosable.


Stainless steel soldering pot Titaniium solder pot is optional




Pedestal is optional: L600*W750*H677

Control Panel.JPG



Touch-screen control panel and PLC controller •Programmable parameters include preheat time and position, solder time and position, dip angle, lift angle, angle speed, multiple elevator descent and ascent speeds




PLC control, step motor driving system, CE certificated wiring .

User-freindly interface.jpg



User-freindly interface, easy to operated.

Programmable parameters.jpg

Programmable parameters for precise control.

Auto Dip Soldering Machine ADS-3530T Features

● Pin-type, “bed-of-nails” PCB holder for boards from 60 x 60 mm (2.4" x 2.4") to 350 x 300 mm (13.8" x 11.8"); no special fixturing or pallets needed.

● Multiple small boards can be processed simultaneously, provided they fit within the 350 x 300mm area; pin supports allow random placement of PCBs and assemblies in loading area.

● Programmable parameters include preheat time and position, solder time and position, dip angle, lift angle, angle speed, multiple elevator descent and ascent speeds.

● Stainless steel solder pot; holds approx. 70 Kg (154 lbs.) lead-free SAC; approx. 85 Kg (187 lbs.) SnPb,Titaniium solder pot is optional.

● Digital PID solder pot temperature controller for lead-free SAC or SnPb solders.

● Automatic dross skimmer and collection trough with programmable frequency.

● Automatic startup with programmable time and day input via touch-screenff.

● Foot pedal for hands-free actuation of soldering cycle.

● Optional spray fluxer accessory available.





Auto Dip Soldering Machine ADS-3530G Includes

 ◎ PCB holder for boards from 60x60mm to 350x300mm

 ◎ Touch-screen and PLC control system

 ◎ Programmable preheat time and position

 ◎ Programmable solder height, dip angle, and lift angle

 ◎ SUS solder pot, approx. 70 Kg, Lead-Free SAC

 ◎ Digital PID solder pot temperature controller

 ◎ Automatic dross skimmer and collection trough

 ◎ Programmable, multi-day, 24-hr. automatic startup

 ◎ Foot pedal actuation

 ◎ 1-Year Warranty On All Parts.

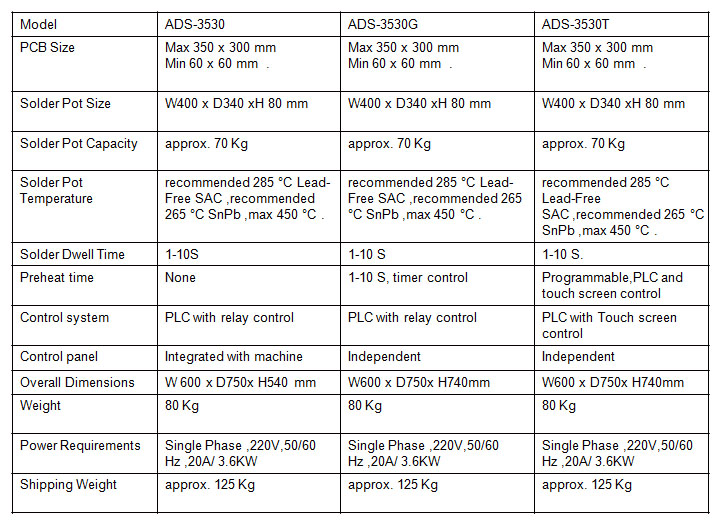

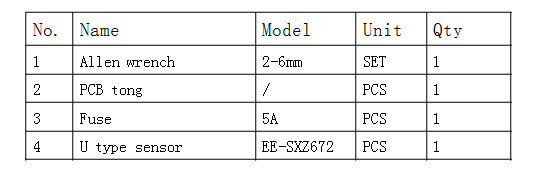

Free Parts list :
